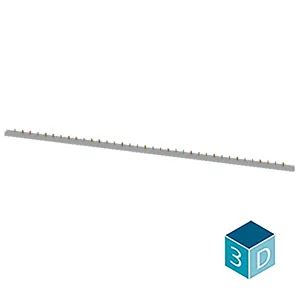

Siemens 5ST3744

Pin busbar touch-safe, 10 mm2 3x 1-phase+AUX, 1016 mm long can be cut, without end caps

SiemensMFR # 5ST3744SKU # YLSLIC3M0MTCRNQ

product brand nameSENTRON

product designationPin busbar

design of the product37x (1PH+HS)

design of the phase tapL1/L2/L3

compatibilityfor MCBs 1P

design of pole3 poles

Have questions?Chat on WhatsApp

About This Product

Pin busbar touch-safe, 10 mm2 3x 1-phase+AUX, 1016 mm long can be cut, without end caps

Siemens 5ST3744

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product37x (1PH+HS)

design of the phase tapL1/L2/L3

General technical data

compatibilityfor MCBs 1P

design of pole3 poles

phase number3

operational current rated value63 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting37

type of electrical connectionPin

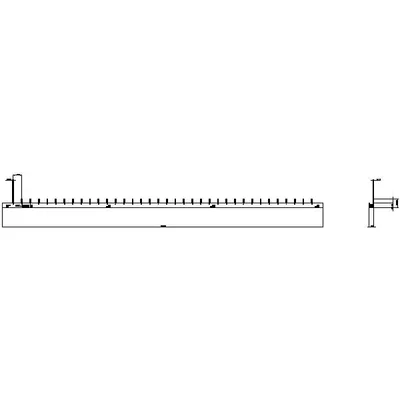

Mechanical Design

module width18 mm

height15 mm

width18 mm

length1 016 mm

number of modular width units56

cross-section10 mm²

angle of the pin of busbar0°

Net Weight380 g

Accessories 42

Genuine accessories that can be used with the Siemens 5ST3744 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3750	Aksesuar
5ST3655	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3794-0	Aksesuar
5ST3793-0	Aksesuar
5ST3793-1	Aksesuar
5ST3793-2	Aksesuar
5ST3794-1	Aksesuar
5ST3015-2	Uyumlu ürün
5ST3015	Uyumlu ürün
5ST3014-2	Uyumlu ürün
5ST3014	Uyumlu ürün
5ST3013-2	Uyumlu ürün
5ST3011-2	Uyumlu ürün
5ST3012-2	Uyumlu ürün
5ST3012-0HG	Uyumlu ürün
5ST3012	Uyumlu ürün
5ST3016	Uyumlu ürün
5ST3013	Uyumlu ürün
5ST3020-0HG	Uyumlu ürün
5ST3062-0MC	Uyumlu ürün
5ST3022-0HG	Uyumlu ürün
5ST3020	Uyumlu ürün
5ST3062	Uyumlu ürün
5ST3011-0HG	Uyumlu ürün
5ST3020-2	Uyumlu ürün
5ST3021	Uyumlu ürün
5ST3021-2	Uyumlu ürün
5ST3022	Uyumlu ürün
5ST3022-2	Uyumlu ürün
5ST3010-Z	Uyumlu ürün
5ST3010-0HG-Z	Uyumlu ürün
5ST3021-0HG	Uyumlu ürün
5ST3011	Uyumlu ürün
5ST3010-0HG	Uyumlu ürün
5ST3010-2	Uyumlu ürün
5ST3018-0KC	Uyumlu ürün
5ST3010	Uyumlu ürün
5ST3028-0KC	Uyumlu ürün
