How can I get a price quote for Siemens 5ST3707-3HG?

You can request a fast quote for Siemens 5ST3707-3HG from Yılsa Engineering. Reference part number CEY-8EF3B0388FEE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3707-3HG in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3707-3HG genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3707-3HG?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

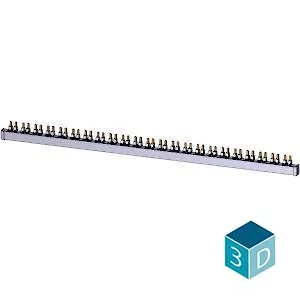

Siemens 5ST3707-3HG

pin busbar, can be cut 18 mm2, 2-phase+auxiliary switch 1016 mm , according to UL 508, 480/277 V for MCB 5SJ4...-.HG

SiemensMFR # 5ST3707-3HGSKU # CEY-8EF3B0388FEE

product brand nameSENTRON

product designationPin busbar

design of the product23x (2PH+HS)

design of the phase tapL1/L2

compatibilityfor MCBs 2P

design of pole2 poles

Have questions?Chat on WhatsApp

About This Product

pin busbar, can be cut 18 mm2, 2-phase+auxiliary switch 1016 mm , according to UL 508, 480/277 V for MCB 5SJ4...-.HG

Siemens 5ST3707-3HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product23x (2PH+HS)

design of the phase tapL1/L2

General technical data

compatibilityfor MCBs 2P

design of pole2 poles

phase number2

operational current rated value80 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting23

type of electrical connectionPin

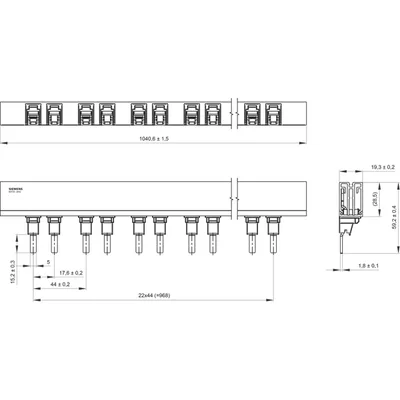

Mechanical Design

module width18 mm

width19 mm

length1 016 mm

number of modular width units56

cross-section18 mm²

angle of the pin of busbar0°

Net Weight990 g

standards according to UL489, 508

Accessories 36

Genuine accessories that can be used with the Siemens 5ST3707-3HG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3655-3HG	Aksesuar
5ST3666-0HG	Aksesuar
5ST3666-2HG	Aksesuar
5ST3750-3HG	Aksesuar
5ST3770-3HG	Aksesuar
5ST3015-2	Uyumlu ürün
5ST3016	Uyumlu ürün
5ST3020-0HG	Uyumlu ürün
5ST3021-0HG	Uyumlu ürün
5ST3022-0HG	Uyumlu ürün
5ST3020	Uyumlu ürün
5ST3062	Uyumlu ürün
5ST3062-0MC	Uyumlu ürün
5ST3020-2	Uyumlu ürün
5ST3021	Uyumlu ürün
5ST3021-2	Uyumlu ürün
5ST3022	Uyumlu ürün
5ST3022-2	Uyumlu ürün
5ST3010-Z	Uyumlu ürün
5ST3010-0HG-Z	Uyumlu ürün
5ST3015	Uyumlu ürün
5ST3014-2	Uyumlu ürün
5ST3014	Uyumlu ürün
5ST3013-2	Uyumlu ürün
5ST3010	Uyumlu ürün
5ST3018-0KC	Uyumlu ürün
5ST3010-0HG	Uyumlu ürün
5ST3011	Uyumlu ürün
5ST3011-0HG	Uyumlu ürün
5ST3011-2	Uyumlu ürün
5ST3012	Uyumlu ürün
5ST3012-0HG	Uyumlu ürün
5ST3012-2	Uyumlu ürün
5ST3013	Uyumlu ürün
5ST3010-2	Uyumlu ürün
5ST3028-0KC	Uyumlu ürün
