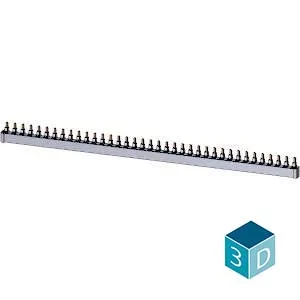

Siemens 5ST3703-3HG

pin busbar, can be cut 18 mm2, 1-phase+auxiliary switch 1016 mm , according to UL 508, 480/277 V for MCB 5SJ4...-.HG

SiemensMFR # 5ST3703-3HGSKU # CEY-8EF3B0388FF7

product brand nameSENTRON

product designationPin busbar

design of the product37x (1PH+HS)

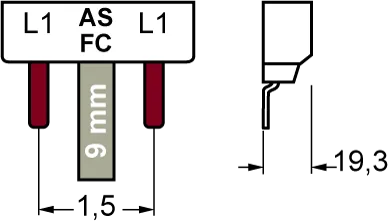

design of the phase tapL1/L1

compatibilityfor MCBs 1P

design of pole1 pole

Have questions?Chat on WhatsApp

About This Product

pin busbar, can be cut 18 mm2, 1-phase+auxiliary switch 1016 mm , according to UL 508, 480/277 V for MCB 5SJ4...-.HG

Siemens 5ST3703-3HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product37x (1PH+HS)

design of the phase tapL1/L1

General technical data

compatibilityfor MCBs 1P

design of pole1 pole

phase number1

operational current rated value80 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting37

type of electrical connectionPin

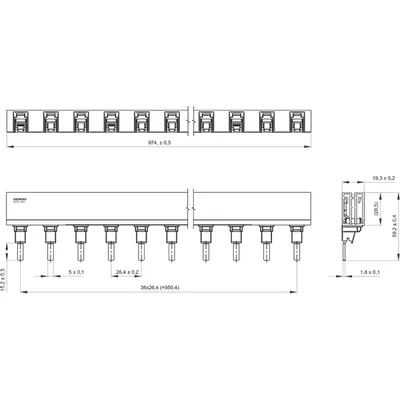

Mechanical Design

module width18 mm

width19 mm

length1 016 mm

number of modular width units56

cross-section18 mm²

angle of the pin of busbar0°

Net Weight710 g

standards according to UL489, 508
