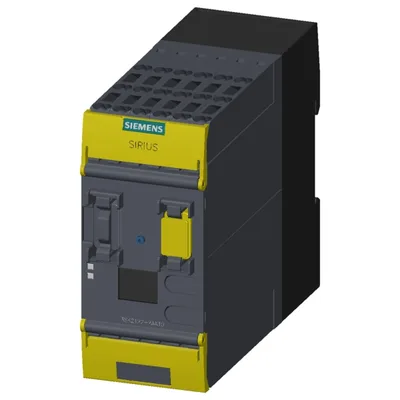

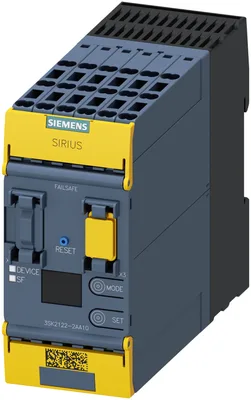

Siemens 3SK2122-2AA10

SIRIUS safety relay basic unit 3SK2 series 20 F-DI, 4 F-DQ, 2 DQ, 24 V DC Can be parameterized via SIRIUS Safety ES 45 mm width spring-loaded terminal (push-in) up to SIL 3 (IEC 62061) up to performance level e (ISO 13849-1) output expansions 3SK1, coupling relay 3RQ1 and fail-safe motor starters 3RM1 via device connector connectable

SiemensMFR # 3SK2122-2AA10SKU # CEY-8EF3B0390CB3

product brand nameSIRIUS

product categorySafety relay

product designationBase-Unit

design of the product20 F-DI, 4 F-DQ, 2 DQ

monitoring of floating sensorsYes

monitoring of non-floating sensorsYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3SK2122-2AA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySafety relay

product designationBase-Unit

design of the product20 F-DI, 4 F-DQ, 2 DQ

suitability for use for monitoring of optoelectronic protective devices according to IEC 61496-1Yes

monitoring of floating sensorsYes

monitoring of non-floating sensorsYes

position switch monitoringYes

EMERGENCY-OFF circuit monitoringYes

valve monitoringYes

opto-electronic protection device monitoringYes

magnetically operated switch monitoringYes

proximity switch monitoringYes

safety-related circuitsYes

General technical data

EMERGENCY STOP functionYes

protective door monitoringYes

protective door monitoring with tumblerYes

muting, 2 sensor-parallelYes

muting, 4 sensor-parallelYes

muting, 4 sensor-sequentialYes

monitoring parameterizableYes

evaluation: electro-sensitive protective equipmentYes

evaluation: selector switchYes

pressure-sensitive mat monitoringYes

evaluation: two-hand operator panelYes

evaluation: enabling switchYes

monitored start-upYes

two-hand control according to EN 574Yes

configuration software requiredYes; Safety ES V1.0 and higher

number of function blocks typical50

insulation voltage rated value50 V

degree of pollution3

surge voltage resistance rated value800 V

of the enclosureIP20

of the terminalIP20

shock resistance15 g / 11 ms

vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm

operating frequency maximum2 000 1/h

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.328 kg

product function suitable for AS-i Power24VNo

product function diagnostics with CTT2 deviceNo

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

relative humidity during operation10 ... 95 %

air pressure according to SN 3120590 ... 106 kPa

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

test wear-related service life necessaryNo

diagnostics test interval by internal test function maximum1 000 s

stop category according to IEC 60204-10 / 1

IEC 62061

SIL Claim Limit (subsystem) according to EN 620613

according to IEC 62061SIL 3

at single-channel evaluation according to IEC 620611

at 2-channel evaluation according to IEC 620613

according to IEC 620611.2E-8 1/h

ISO 13849

performance level (PL) according to EN ISO 13849-1e

category according to EN ISO 13849-14

according to ISO 13849-1PL e

at single-channel evaluation according to ISO 13849-1c

at 2-channel evaluation according to ISO 13849-1e

according to ISO 13849-14

at 2-channel evaluation according to ISO 13849-14

device type according to ISO 13849-11

overdimensioning according to ISO 13849-2 necessaryNo

IEC 61508

according to IEC 615083

at single-channel evaluation according to IEC 615081

at 2-channel evaluation according to IEC 615083

PFHD with high demand rate according to IEC 615081.2E-8 1/h

PFDavg with low demand rate according to IEC 615081.8E-5

Safe failure fraction (SFF)99 %

according to IEC 615081

at single-channel evaluation according to IEC 615080

at 2-channel evaluation according to IEC 615081

of service life according to IEC 6150820 a

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

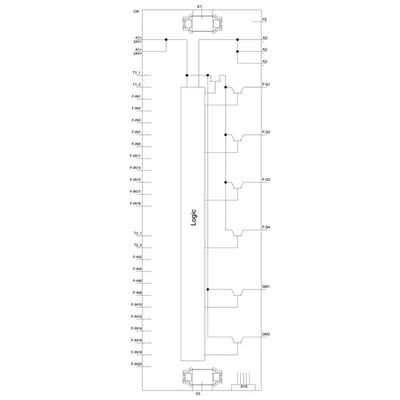

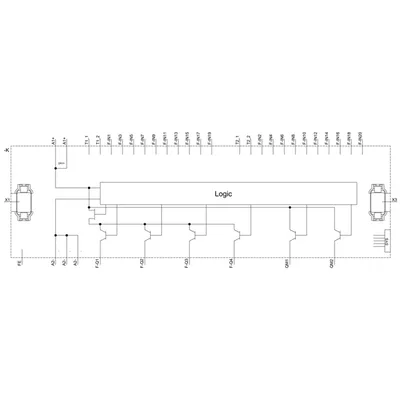

Inputs/ Outputs

parameterizable inputsYes

parameterizable outputsYes

at the digital outputs short-circuit protectionYes

safety-related20

non-safety-related0

input delay time0 ... 150 ms

type of digital inputs according to IEC 60947-1Type 1

ingress aquisition time at digital input maximum60 ms

input delay time at digital input maximum150 ms

input voltage at digital input at DC rated value24 V

for signal <1> typical2.6 mA

safety-related 2-channel4

for testing contact-based sensors4

1-channel0

2-channel0

safety-related 2-channel4

non-safety-related2

design of the contactless switching element safety-relatedP potential

recovery time of the safe outputs0 ms

readback time maximum400 ms

light test period3 ms

dark period of the common drivers3 ms

switching capacity current of semiconductor outputs at DC-13 at 24 V4 A

maximum0.1 mA

at digital output with signal <0> maximum0.1 mA

total current maximum7 A

voltage drop maximum0.5 V

— shielded maximum1 000 m

— unshielded maximum600 m

— shielded maximum1 000 m

— unshielded maximum600 m

Communication/ Protocol

PROFIBUS DP protocolYes; when using the DP interface module; 64 bit cyclical data

PROFINET IO protocolYes; when using the PN interface module; 64-bit cyclic data

protocol is supported AS-Interface protocolNo

Control circuit/ Control

type of voltageDC

control supply voltage rated value24 V

initial value0.85

full-scale value1.2

at 24 V11 A

at 24 V1 ms

operating power rated value4.5 W

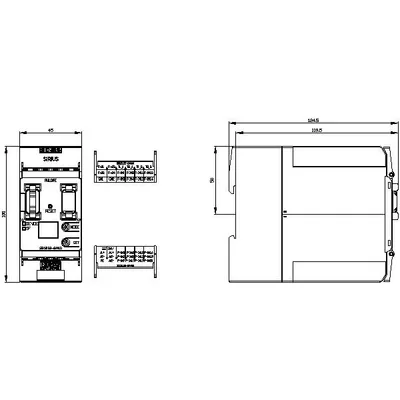

Installation/ mounting/ dimensions

mounting positionany

fastening methodSnap-mounted to DIN rail or screw-mounted with additional push-in lug

height100 mm

width45 mm

depth124.5 mm

Connections/ Terminals

product function removable terminalYes

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0.5 ... 1.0 mm²), 2x (0.5 ... 1.0 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 16)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 16)

connectable conductor cross-section finely stranded with core end processing0.5 ... 1 mm²

solid20 ... 16

stranded20 ... 16
