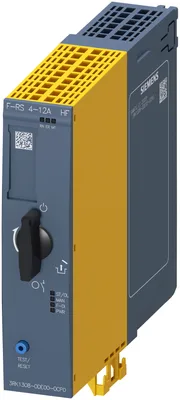

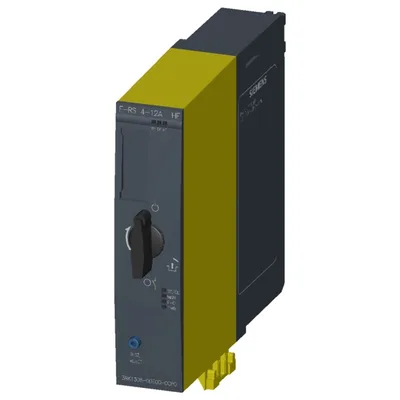

Siemens 3RK1308-0DE00-0CP0

Failsafe reversing starter High Feature; Incl. fan (3RW4928-8VB00); Electronic switching; Electronic overload protection up to 5.5 kW / 400 V; Adjustment range 4.0 .. 12 A; PROFIenergy; Option: 3DI/LC module

SiemensMFR # 3RK1308-0DE00-0CP0SKU # YLSLRNTZW7JTUWI

product brand nameSIMATIC

product categoryMotor starter

product designationReversing starter

product type designationET 200SP

product functionFail-safe reversing starter

on-site operationYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RK1308-0DE00-0CP0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product categoryMotor starter

product designationReversing starter

product type designationET 200SP

General technical data

equipment version according to IEC 60947-4-23

product functionFail-safe reversing starter

on-site operationYes

intrinsic device protectionYes

remote firmware updateYes

for power supply reverse polarity protectionYes

at AC in hot operating state per pole3 W

insulation voltage rated value500 V

degree of pollution2

overvoltage categoryIII

surge voltage resistance rated value6 kV

between main and auxiliary circuit500 V

consumed current maximum180 mA

shock resistance6 g / 11 ms

vibration resistance15 mm to 6 Hz; 2 g to 500 Hz

operating frequency maximum1 1/s

mechanical service life (operating cycles) of the main contacts typical30 000 000

type of coordination1

according to IEC 60947-4-2AC-53a: 12 A: (8-0,5: 72-32)

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)04/15/2016

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.462 kg

direct startYes

reverse startingYes

product component motor brake outputNo

product function short circuit protectionYes

design of short-circuit protectionfuse

at 400 V rated value55 kA

at 500 V rated value55 kA

at 500 V according to UL 60947 rated value100 kA

at 400 V rated value55 kA

at 500 V rated value55 kA

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1Class A

due to burst according to IEC 61000-4-43 kV

due to conductor-earth surge according to IEC 61000-4-54 kV

due to conductor-conductor surge according to IEC 61000-4-52 kV

due to high-frequency radiation according to IEC 61000-4-6Class A

field-based interference according to IEC 61000-4-320 V/m

electrostatic discharge according to IEC 61000-4-28 kV air discharge

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

safe stateLoad circuit open

test wear-related service life necessaryYes

function test interval maximum0.083 a

diagnostics test interval by internal test function maximum600 s

stop category according to IEC 60204-10

proportion of dangerous failures with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319201 000 000

IEC 62061

Safety Integrity Level (SIL) according to IEC 62061SIL 3

ISO 13849

performance level (PL) according to ISO 13849-1PL e

category according to ISO 13849-14

device type according to ISO 13849-11

overdimensioning according to ISO 13849-2 necessaryNo

IEC 61508

Safety Integrity Level (SIL) according to IEC 61508SIL 3

safety device type according to IEC 61508-2Type B

PFH according to IEC 61508 relating to SIL6E-9 1/h; for switching frequency 30/h

PFDavg with low demand rate according to IEC 615089E-7

Safe failure fraction (SFF)99.5 %

hardware fault tolerance according to IEC 615081

of service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 1

hardware fault tolerance according to IEC 61508 relating to ATEX1

Main circuit

number of poles for main current circuit3

design of the switching contactHybrid

adjustable current response value current of the current-dependent overload release4 ... 12 A

minimum load [%]50 %; from smallest adjustable rated current

type of the motor protectionsolid-state

operating voltage rated value48 ... 500 V

relative symmetrical tolerance of the operating voltage10 %

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative symmetrical tolerance of the operating frequency5 %

relative positive tolerance of the operating frequency5 %

relative negative tolerance of the operating frequency5 %

operational current at AC at 400 V rated value12 A

ampacity when starting maximum120 A

operating power for 3-phase motors at 400 V at 50 Hz2.2 ... 5.5 kW

Inputs/ Outputs

number of digital inputs5

note4 via 3DI/LC module

safety-related1

type of input characteristicType 1 in accordance with EN 61131-2

input voltage at digital input at DC rated value24 V

input current at digital input for signal <1> typical0 A

of the inputs4 byte

of the outputs2 byte

Supply voltage

type of voltage of the supply voltageDC

minimum permissible20.4 V

maximum permissible28.8 V

supply voltage at DC rated value24 V

in standby mode of operation95 mA

during operation90 mA

at switching on of motor180 mA

in switching state OFF with bypass circuit2.2 W

in switching state ON with bypass circuit4.32 W

inrush current peak at 24 V25 A; Observe the manual for group configuration

duration of inrush current peak at 24 V0.14 ms

Response times

ON-delay time35 ms

OFF-delay time35 ... 50 ms

when switched off via control inputs maximum55 ms

when switched off via supply voltage maximum120 ms

Power Electronics

at 40 °C rated value12 A

at 50 °C rated value10 A

at 55 °C rated value9 A

at 60 °C rated value7 A

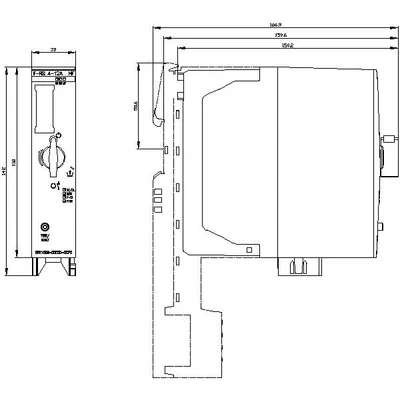

Installation/ mounting/ dimensions

mounting positionVertical, horizontal (observe derating)

fastening methodpluggable in BaseUnit

height142 mm

width30 mm

depth150 mm

upwards50 mm

downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +60 °C; For derating see manual

during storage-40 ... +70 °C

during transport-40 ... +70 °C

environmental category during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices)

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Communication/ Protocol

PROFIBUS DP protocolYes

PROFINET protocolYes

product function bus communicationYes

protocol is supported AS-Interface protocolNo

supports PROFIenergy measured valuesYes

supports PROFIenergy shutdownYes

type of electrical connection of the communication interfacePlug contact to Base Unit

Connections/ Terminals

1 for digital input signalsPluggable module - accessory

2 for digital input signalsPlug contact to Base Unit

for main energy infeedPlug contact to Base Unit

for load-side outgoing feederPlug contact to Base Unit

for supply voltage line-sidePlug contact to Base Unit

wire length for motor unshielded maximum200 m

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor at 480 V rated value12 A

current with locked rotor (LRA) for 3-phase AC motor at 480 V rated value72 A

— at 110/120 V rated value0.5 hp

— at 230 V rated value2 hp

— at 200/208 V rated value2 hp

— at 220/230 V rated value3 hp

— at 460/480 V rated value7.5 hp

operating voltage at AC at 60 Hz according to CSA and UL rated value480 V
