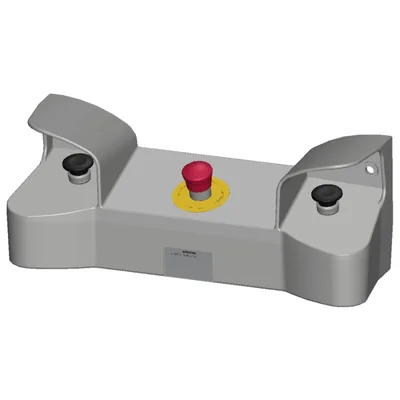

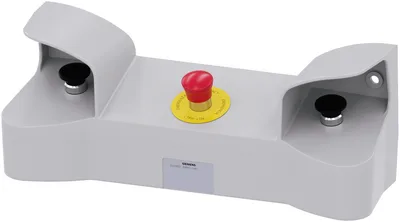

Siemens 3SU1853-3NB00-1AA1

two-hand operation console for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 3 command points metal, standard equipment: 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, screw terminal, 1x EMERGENCY STOP red, 40 mm, 2 NC, screw terminal

SiemensMFR # 3SU1853-3NB00-1AA1SKU # CEY-8EF3B0325D22

product brand nameSIRIUS ACT

product designationTwo-hand operation console

product type designation3SU1

of supplied empty enclosure3SU1853-3AA00-0AA1

material of the enclosuremetal

number of command points3

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1853-3NB00-1AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationTwo-hand operation console

product type designation3SU1

of supplied contact moduleR2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400-1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0

of supplied contact module at the command point A 13SU1400-1AA10-1CA0

of supplied contact module at the command point A 33SU1400-1AA10-1BA0

of supplied contact module at the command point B 13SU1400-1AA10-1CA0

of supplied contact module at the command point B 33SU1400-1AA10-1CA0

of supplied contact module at the command point C 13SU1400-1AA10-1CA0

of supplied contact module at the command point C 33SU1400-1AA10-1BA0

of the supplied holder at the command point A3SU1550-0AA10-0AA0

of the supplied holder at the command point B3SU1550-0AA10-0AA0

of the supplied holder at the command point C3SU1550-0AA10-0AA0

of the supplied actuator at the command point A3SU1050-1BD10-0AA0

of the supplied actuator at the command point B3SU1050-1HB20-0AA0

of the supplied actuator at the command point C3SU1050-1BD10-0AA0

of supplied empty enclosure3SU1853-3AA00-0AA1

of the supplied accessories at the command point B3SU1900-0BB31-0AT0

Enclosure

design of the housingTwo-hand operating console with standard components

material of the enclosuremetal

number of command points3

color of the enclosure top partgrey

as a kitNo

pre-wired on strip terminalNo

fastening method of the enclosureHorizontal

Actuator

design of the actuating elementA = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton

principle of operation of the actuating elementA = momentary contact / B = latching / C = momentary contact

lockoutNo

staggered switchingNo

color of the actuating elementA = black / B = red / C = black

material of the actuating elementmetal

shape of the actuating elementround

number of contact modules6

type of unlocking deviceA = none / B = rotate to unlock / C = none

Front ring

product component front ringYes

material of the front ringmetal

color of the front ringsilver

Holder

material of the holderMetal

General technical data

positive openingYes

EMERGENCY OFF functionYes

EMERGENCY STOP functionYes

product component stand/pedestalNo

protection class IPIP66

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-610 ... 500 Hz: 5 g

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight4.728 kg

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts4

number of NO contacts for auxiliary contacts2

Connections/ Terminals

type of electrical connection on enclosureCable routing at the rear 2 x M25

Safety related data

product function suitable for safety functionYes

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

B10 value with high demand rate according to SN 31920100 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

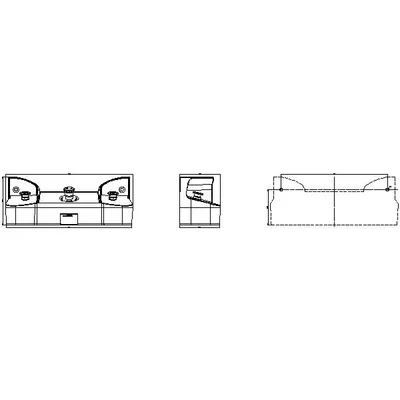

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFront plate mounting

height185.6 mm

width492.4 mm

depth159.5 mm

Accessories

number of backing plates1

marking of backing plateNOT-HALT

color of backing plateYellow

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg
