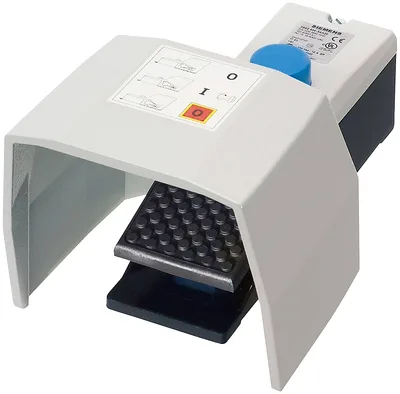

Siemens 3SE2924-3AA20

Old: 3SE3924-3AA20 with protective cover, IP65, with interlock function, 2 NO+2 NC, NO contact, closes as pushbutton, NC contact, opens with simultaneous latching (safety function), cable entry M20 x 1.5

SiemensMFR # 3SE2924-3AA20SKU # CEY-8EF3B0300D03

product brand nameSIRIUS

product designationsafety foot switch

product type designation3SE29

protection class IPIP65

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE2924-3AA20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationsafety foot switch

product type designation3SE29

General technical data

protection class IPIP65

mechanical service life (operating cycles) typical100 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight1.517 kg

number of switching steps2

number of the actuation pedals1

minimum actuating force in directions of actuation240 N

Ambient conditions

ambient temperature during operation-25 ... +80 °C

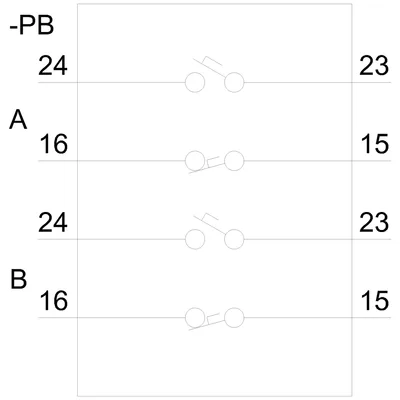

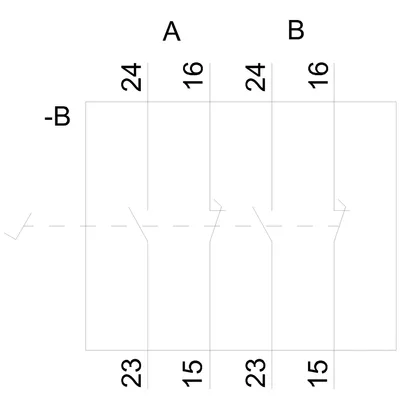

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts2

at 230 V rated value16 A

at 400 V rated value16 A

at 24 V rated value3 A

at 250 V rated value0.25 A

Enclosure

material of the enclosuremetal

of the enclosureblack

of the enclosure top partgrey

Actuator

interlockYes

latchingNo

cable entry typeM20 x 1.5

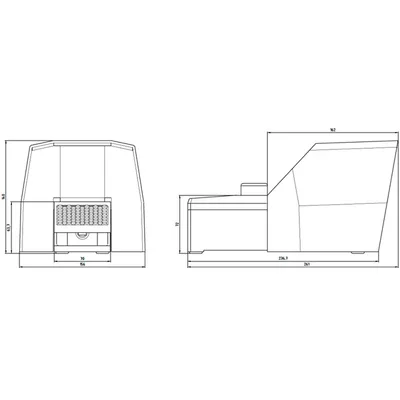

Installation/ mounting/ dimensions

height138 mm

width156 mm

depth265 mm

Safety related data

with low demand rate according to SN 3192050 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a
