How can I get a price quote for Siemens 3RQ1000-1LB00?

You can request a fast quote for Siemens 3RQ1000-1LB00 from Yılsa Engineering. Reference part number YLSXGQSRJYXTIQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RQ1000-1LB00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RQ1000-1LB00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RQ1000-1LB00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

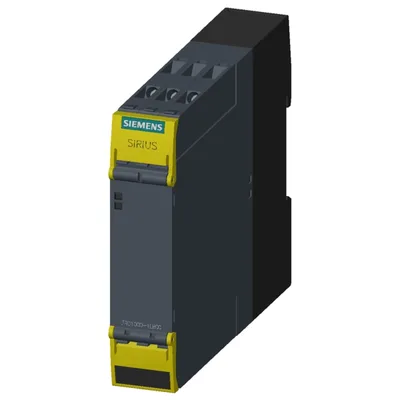

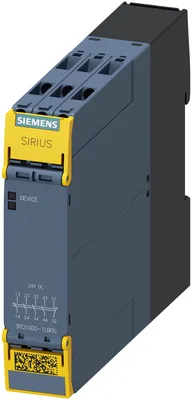

Siemens 3RQ1000-1LB00

Positively driven coupling relay in industrial enclosure 4 NO contacts / 1 NC contact 24 V DC SIL 2 / PL c screw terminal

SiemensMFR # 3RQ1000-1LB00SKU # YLSXGQSRJYXTIQ

product brand nameSIRIUS

product designationforce-guided coupling relay

design of the productfail-safe up to SIL 2/PL c

product type designation3RQ1

consumed active power1.3 W

degree of pollution3

Have questions?Chat on WhatsApp

About This Product

Positively driven coupling relay in industrial enclosure 4 NO contacts / 1 NC contact 24 V DC SIL 2 / PL c screw terminal

Siemens 3RQ1000-1LB00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationforce-guided coupling relay

design of the productfail-safe up to SIL 2/PL c

product type designation3RQ1

General technical data

product feature protective coating on printed-circuit boardNo

consumed active power1.3 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

degree of pollution3

surge voltage resistance rated value4 kV

according to IEC 60068-2-2711 g / 15 ms

according to IEC 60068-2-610 ... 55 Hz: 0.35 mm

operating frequency maximum360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical10 000 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/31/2018

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7

Net Weight0.169 kg

Product Function

suitability for operation device connector 3ZY12Yes

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0.8

full-scale value1.2

at AC maximum15 ms

at DC maximum15 ms

OFF-delay time maximum35 ms

Switching Function

design of the switching functionNC contact and NO contact

Mechanical data

product component plug-in socketNo

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A

Auxiliary circuit

material of switching contactsAgSnO2 + Au flash

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts4

number of CO contacts for auxiliary contacts0

type of voltageDC

Inputs/ Outputs

output current minimum10 mA

at 250 V at 50/60 Hz1.5 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharging, 8 kV air discharging

Display

product component LEDYes

Safety related data

positively driven operation according to IEC 60947-5-1Yes

safety-related switching onNo

safety-related switching OFFYes

safe statesafe shutdown

test wear-related service life necessaryYes

stop category according to IEC 60204-10

MTTFd470 a

IEC 62061

according to IEC 62061SIL 2

ISO 13849

performance level (PL) according to ISO 13849-1PL c

category according to ISO 13849-11

device type according to ISO 13849-11

overdimensioning according to ISO 13849-2 necessaryNo

IEC 61508

Safety Integrity Level (SIL) according to IEC 61508SIL 2

safety device type according to IEC 61508-2Type A

PFHD with high demand rate according to IEC 615089.5E-7 1/h

PFDavg with low demand rate according to IEC 615080.002

Safe failure fraction (SFF)85 %

hardware fault tolerance according to IEC 615080

T1 value of service life according to IEC 6150820 a

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionscrew terminal

solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

finely stranded with core end processing1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid1x (20 ... 12), 2x (20 ... 14)

solid0.5 ... 4 mm²

finely stranded with core end processing maximum4 mm²

finely stranded without core end processing minimum0.5 mm²

solid12 ... 20

stranded12 ... 20

tightening torque with screw-type terminals0.6 ... 0.8 N·m

stripped length of the cable for auxiliary and control contacts10 mm

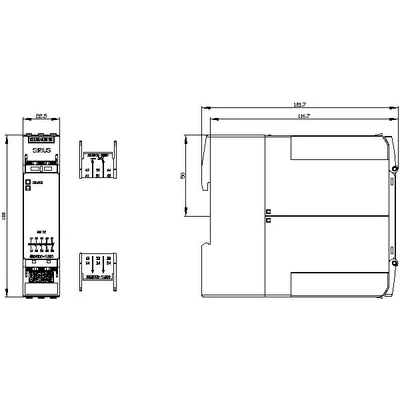

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width22.5 mm

depth120 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

relative humidity during operation10 ... 95 %

Accessories 11

Genuine accessories that can be used with the Siemens 3RQ1000-1LB00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1212-2GA00	Aksesuar · Device connector
3ZY1210-2AA00	Aksesuar · Device connector
3ZY1212-2BA00	Aksesuar · Device connector
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1212-2FA00	Aksesuar · Device connector
3ZY1212-2EA00	Aksesuar · Device connector
3ZY1212-2AB00	Aksesuar · Device connector
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1212-2DA00	Aksesuar · Device connector
3ZY1450-1BB00	Yedek parça · Further accessories
