How can I get a price quote for Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E?

You can request a fast quote for Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E from Yılsa Engineering. Reference part number YLSOO4UUK5VINL3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

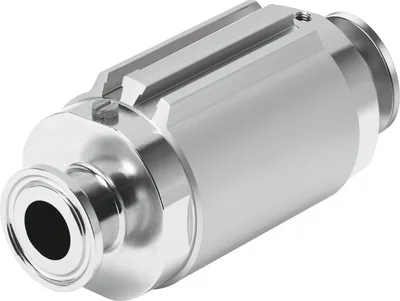

Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E

Pinch valve. Modular design. Quick and easy replacement of the diaphragm. Sustainable thanks to extended life cycle and easier repairs. For critical, abrasive and viscous media. Easy-to-clean design. Flow direction is freely selectable. Versions with end-position sensing

FestoMFR # VZQA-C-M22C-15-S5S5-ALV4E-6-ESKU # YLSOO4UUK5VINL3

DesignPinch valve, pneumatically actuated

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveClamp to DIN 32676 series A

Have questions?Chat on WhatsApp

About This Product

Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPinch valve, pneumatically actuated

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveClamp to DIN 32676 series A

Nominal size DN15

Valve function2/2-way, single solenoid, closed

Flow directionReversible

Medium pressure0, 0.6

Medium pressure0, 6

Medium pressure0, 87

Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media fl

Operating pressure0.35, 0.6

Operating pressure3.5, 6

Operating pressure50.75, 87

Nominal pressure PN10

Burst pressure1.6

Burst pressure16

Burst pressure232

Type of resetMechanical spring

Type of pilotingExternally actuated

Auxiliary pilot air port 12M5

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]

Symbol00992981

MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water

Max. viscosity4000

Media temperature-5, 100

Ambient temperature-5, 60

Storage temperature5, 20

Flow rate Kv5

Switching time on150

Switching time off250

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingWrought aluminium alloy

Material housing coverHigh-alloy stainless steel

Material number housing cover1.4404 / AISI 316L

Material sealsFluoro rubber

Material shut-off elementEPDM

Product weight608

Suitable for use with foodSee supplementary material information

Material bowlPA6

Accessories 34

Genuine accessories that can be used with the Festo VZQA-C-M22C-15-S5S5-ALV4E-6-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VAVC-Q2-M22C-15-E	Seal cartridge · General accessories
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
ABP-5-S	Slot cover · General accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-PS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-PS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8-SL-PS-LED-24-B	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSX-1L-PU-E-5-N-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSX-1L-NU-E-5-N-LE	Proximity sensor · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
SMT-8G-NS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-NS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
SDBT-MSX-1L-PU-E-0.3-N-M12	Proximity switch · Cylinder sensors for direct mounting
