Festo
MPA-FB-VI
MFR #MPA-FB-VI
SKU #YLSABGWZTDXERP
Photo may not represent actual item. Refer to name and product specs for all details.

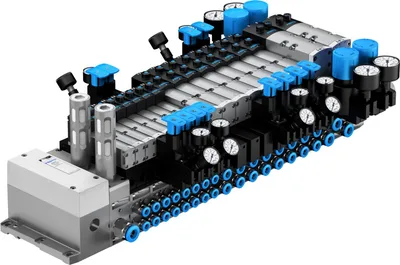

Festo VTSA-MP
Valve terminal. Multi-pin plug connection. Integratable safety functions. Max. 32 valves
Electrical controlAP interface, IO-Link®, Multi-pin
Terminal type44
Ambient temperature-5, 50
Storage temperature-20, 60
Relative air humidity0 - 90%
Degree of protectionIP65, NEMA 4
About This Product
Valve terminal. Multi-pin plug connection. Integratable safety functions. Max. 32 valves
Festo VTSA-MP
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Electrical controlAP interface, IO-Link®, Multi-pin
Terminal type44
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature-5, 50
Storage temperature-20, 60
Relative air humidity0 - 90%
Degree of protectionIP65, NEMA 4
Corrosion resistance class CRC0 - No corrosion stress
Operating pressure-0.09, 1
Operating pressure-0.9, 10
Pilot pressure0.3, 1
Pilot pressure3, 10
Operating pressure for valve terminal with internal pilot air supply0.3, 1
Operating pressure for valve terminal with internal pilot air supply3, 10
LABS (PWIS) conformityVDMA24364-B1/B2-L
CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), To EU Low Voltage Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
KC markKC-EMV
ApprovalBIA, C-Tick, c UL us - Recognised (Oil)
Explosion protectionZone 2 (ATEX)
ATEX category gasII 3G
Explosion ignition protection type for gasEx nA IIC T3 X Gc
Explosion ambient temperature-5°C <= Ta <= +50°C
Certificate issuing authorityUL E322346
Note on materialsRoHS compliant
Valve terminal structureModular, valve sizes can be mixed
Max. number of valve positions32
Max. number of pressure zones32
Type of actuationElectrical
Valve function5/3-way, port 2 pressurised, 4 exhausted
DesignPiston gate valve
Valve size26
Pilot air supplyExternal, Internal
Max. standard nominal flow rate550 l/min at 18 mm, 1100 l/min at 26 mm, 1300 l/min at 42 mm, 2900 l/min at 52 mm, 4000 l/min at 65 mm
Suitability for vacuumYes
Exhaust-air functionVia throttle plate
pneumatic working portG1/8, G1/4, G3/8, G1/2, QS-6, QS-8, QS-10, QS-12, QS-14, QS-16
Signal status displayLED
Nominal operating voltage DC24
Permissible voltage fluctuations+/-10%
Accessories 653
Genuine accessories that can be used with the Festo VTSA-MP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| U-1/2 | Silencer · Silencer | |
| U-1/4 | Silencer · Silencer | |
| B-1/8 | Blanking plug · Other connectors | |
| B-1/4 | Blanking plug · Other connectors | |
| U-1/2-B | Silencer · Silencer | |
| QS-G1/8-4-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QS-G1/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-10-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-4 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16 | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-I | Push-in fitting · Push-in fittings | |
| QS-V0-G1/8-6 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-12 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| B-1/8-100 | Blanking plug · Other connectors | |
| B-1/4-50 | Blanking plug · Other connectors | |
| VTSA/VTSA-F-DE | Description · General accessories | |
| VTSA/VTSA-F-EN | Description · General accessories | |
| VSVA-B-T32C-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZD-A2-1T1L | Solenoid valve · Valves | |
| VABB-S4-1-WT | Cover plate · General accessories | |
| VABB-S4-2-WT | Cover plate · General accessories | |
| VAME-S6-10-W | Mounting bracket · Mounting accessories | |
| VABV-S4-1S-G14-2T2 | Manifold sub-base · Connection accessories | |
| VABV-S4-1S-G14-2T1 | Manifold sub-base · Connection accessories | |
| VABV-S4-2S-G18-2T2 | Manifold sub-base · Connection accessories | |
| VABV-S4-2S-G18-2T1 | Manifold sub-base · Connection accessories | |
| VABD-S6-1-P1-C | Duct separation · Connection accessories | |
| VABD-S6-1-P3-C | Duct separation · Connection accessories | |
| VABD-S6-1-P2-C | Duct separation · Connection accessories | |
| VABF-S6-1-P1A6-G12 | Supply plate · Connection accessories | |
| VABF-S6-1-P1A7-G12 | Supply plate · Connection accessories | |
| VABE-S6-1R-G12 | End plate · Connection accessories | |
| VABE-S6-1RZ-G12 | End plate · Connection accessories | |
| VABE-S6-1RZ-G-B1 | End plate · Connection accessories | |
| NEBV-S1W37-E-2.5-LE10 | Connecting cable · Connecting cables | |
| NEBV-S1W37-E-5-LE10 | Connecting cable · Connecting cables | |
| NEBV-S1W37-E-10-LE10 | Connecting cable · Connecting cables | |
| NEBV-S1W37-E-2.5-LE26 | Connecting cable · Connecting cables | |
| NEBV-S1W37-E-5-LE26 | Connecting cable · Connecting cables | |
| NEBV-S1W37-E-10-LE26 | Connecting cable · Connecting cables | |
| NEBV-S1W37-K-2.5-LE37 | Connecting cable · Connecting cables | |
| NEBV-S1W37-K-5-LE37 | Connecting cable · Connecting cables | |
| NEBV-S1W37-K-10-LE37 | Connecting cable · Connecting cables | |
| VABF-S4-2-A2G2-G18 | Angled connection plate · Connection accessories | |
| VABF-S4-1-A2G2-G14 | Angled connection plate · Connection accessories | |
| VABS-S4-2S-G18-K2 | Sub-base · Connection accessories | |
| VABS-S4-1S-G14-K2 | Sub-base · Connection accessories | |
| VABF-S4-2-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-2-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-2-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-2-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-2-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-P1A3-G14 | Vertical pressure supply plate · Connection accessories | |
| VABF-S4-2-P1A3-G18 | Vertical pressure supply plate · Connection accessories | |
| VABF-S4-1-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S4-2-F1B1-C | Throttle plate · Connection accessories | |
| ASCF-T-S6 | Inscription label holder · General accessories | |
| ASCF-M-S6 | Inscription label holder · General accessories | |
| VAMC-S6-CH | Cover cap · General accessories | |
| VAMC-S6-CS | Cover cap · General accessories | |
| VABS-S4-1S-G14-R3 | Sub-base · Connection accessories | |
| VABS-S4-2S-G18-R3 | Sub-base · Connection accessories | |
| VABS-S4-1S-G14-B-K2 | Sub-base · Connection accessories | |
| VABS-S4-2S-G18-B-K2 | Sub-base · Connection accessories | |
| VABS-S4-1S-G14-B-R3 | Sub-base · Connection accessories | |
| VABS-S4-2S-G18-B-R3 | Sub-base · Connection accessories | |
| VABV-S2-1S-G38-T2 | Manifold sub-base · Connection accessories | |
| VABV-S2-1S-G38-T1 | Manifold sub-base · Connection accessories | |
| VABF-S4-2-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S4-1-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABB-S2-1-WT | Cover plate · General accessories | |
| NEBV-S1W37-KM-2.5-LE10 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-5-LE10 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-10-LE10 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-2.5-LE27 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-5-LE27 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-10-LE27 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-2.5-LE37 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-5-LE37 | Connecting cable · Connecting cables | |
| NEBV-S1W37-KM-10-LE37 | Connecting cable · Connecting cables | |
| VABE-S6-1LF-C-M1-C36M | Multi-pin node · Connection accessories | |
| VABE-S6-1LF-C-M1-C36N | Multi-pin node · Connection accessories | |
| VABE-S6-1LT-C-M1-S37 | Multi-pin node · Connection accessories | |
| VABE-S6-1LF-C-M1-R19 | Multi-pin node · Connection accessories | |
| PAGN-26-16-P10 | Pressure gauge · General accessories | |
| PAGN-26-10-P10 | Pressure gauge · General accessories | |
| VSVA-B-T32C-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZD-D1-1T1L | Solenoid valve · Valves | |
| NECV-S1W37 | Hood · Electrical accessories | |
| VABF-S2-1-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-P1A3-G38 | Vertical pressure supply plate · Connection accessories | |
| VABF-S2-1-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S2-1-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S2-1-A1G2-G38 | Angled connection plate · Connection accessories | |
| VABS-S2-1S-G38-K1 | Sub-base · Connection accessories | |
| VABS-S2-1S-G38-R3 | Sub-base · Connection accessories | |
| VABS-S2-1S-G38-B-K1 | Sub-base · Connection accessories | |
| VABS-S2-1S-G38-B-R3 | Sub-base · Connection accessories | |
| VABF-S4-1-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-2-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S4-1-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-2-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-1-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S4-2-R7C2-C-10 | Regulator plate · Connection accessories | |
| VSVA | Solenoid valve · Valves | |
| VABS-S2-1S-G38-C1 | Sub-base · Connection accessories | |
| VABS-S2-1S-G38-B-C1 | Sub-base · Connection accessories | |
| VABF-S1 | Regulator plate · Connection accessories | |
| VABF-S1-1-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-1-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-1-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2 | Regulator plate · Connection accessories | |
| VABD-S4-E-C | Sealing cap · General accessories | |
| PAGN-40-10-P10 | Pressure gauge · General accessories | |
| PAGN-40-16-P10 | Pressure gauge · General accessories | |
| VABE-S6-1LF-C-A4-E | Electrical interface · Connection accessories | |
| VABE-S6-1LF-C-A8-E | Electrical interface · Connection accessories | |
| VAEM-S6-S-FAS-4-4E | AS-i module · Electrical accessories | |
| VAEM-S6-S-FAS-8-8E | AS-i module · Electrical accessories | |
| VABE-S6-LT-C-S6-R5 | Multi-pin node · Connection accessories | |
| VABE-S6-LT-C-S10-R5 | Multi-pin node · Connection accessories | |
| VAEM-S6-C-S6-R5 | Cover · Electrical accessories | |
| VAEM-S6-C-S10-R5 | Cover · Electrical accessories | |
| VABF-S1-1-P1A3-G38 | Vertical pressure supply plate · Connection accessories | |
| VABF-S1-1-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S1-1-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S4-1-R1C2-C-6E | Regulator plate · Connection accessories | |
| VABS-S2-2S-G12-K1 | Sub-base · Connection accessories | |
| VABS-S2-2S-G12-C1 | Sub-base · Connection accessories | |
| VABS-S2-2S-G12-R3 | Sub-base · Connection accessories | |
| VABS-S2-2S-G12-B-K1 | Sub-base · Connection accessories | |
| VABS-S2-2S-G12-B-C1 | Sub-base · Connection accessories | |
| VABS-S2-2S-G12-B-R3 | Sub-base · Connection accessories | |
| VABF-S2-2-A1G2-G12 | Angled connection plate · Connection accessories | |
| VABF-S1-2-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S2-2-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S2-2-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-P1A3-G12 | Vertical pressure supply plate · Connection accessories | |
| VABF-S2-2-P1A3-G12 | Vertical pressure supply plate · Connection accessories | |
| VABF-S1-2-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S2-2-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S1-2-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S2-2-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABV-S6-1Q-G12 | Manifold sub-base · Connection accessories | |
| VABF-S6-1-P5A4-G12-4-1-P | Soft-start valve · Connection accessories | |
| VABF-S6-1-P5A4-G12-4-1 | Soft-start valve · Connection accessories | |
| VABF-S6-1-P5A4-G12-4-1-N | Soft-start valve · Connection accessories | |
| VSVA-B-M52-MZD-A1-1T1L-APC | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A1-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-P53ED-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A1-1T1L-ANC | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A1-1T1L-ANP | Solenoid valve · Valves | |
| VABF-S4-2-R1C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-1-R1C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-2-R1C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-2-R2C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-1-R2C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-2-R2C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-1-R2C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-2-R4C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-1-R4C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-2-R4C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-1-R4C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-2-R5C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-1-R5C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-2-R5C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-1-R5C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-2-R6C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-1-R6C2-C-10E | Regulator plate · Connection accessories | |
| VABF-S4-2-R6C2-C-6E | Regulator plate · Connection accessories | |
| VABF-S4-1-R6C2-C-6E | Regulator plate · Connection accessories | |
| VSVA-B-B52-ZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZD-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZD-D2-1T1L | Solenoid valve · Valves | |
| VABE-S6-2R-G34 | End plate · Connection accessories | |
| VABE-S6-2RZ-G34 | End plate · Connection accessories | |
| VABV-S2-2S-G12-T2 | Manifold sub-base · Connection accessories | |
| VABV-S2-2S-G12-T1 | Manifold sub-base · Connection accessories | |
| VABB-S2-2-WT | Cover plate · General accessories | |
| VSVA-B-T22C-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32U-AD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32H-AD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-AD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-MD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-B52-D-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-D52-D-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53C-D-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53E-D-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53U-D-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-AZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-B52-ZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-D52-ZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZD-D1-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZD-D1-1R5L | Solenoid valve · Valves | |
| PAGN-26-232P-P10 | Pressure gauge · General accessories | |
| PAGN-26-145P-P10 | Pressure gauge · General accessories | |
| PAGN-40-232P-P10 | Pressure gauge · General accessories | |
| PAGN-40-145P-P10 | Pressure gauge · General accessories | |
| PAGN-26-1.6M-P10 | Pressure gauge · General accessories | |
| PAGN-26-1M-P10 | Pressure gauge · General accessories | |
| PAGN-40-1.6M-P10-CPA | Pressure gauge · General accessories | |
| PAGN-40-1M-P10-CPA | Pressure gauge · General accessories | |
| VSVA-B | Solenoid valve · Valves | |
| VSVA-B-T32C-AD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32U-AD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32H-AD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-AD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-MD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-B52-D-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-D52-D-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53C-D-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53E-D-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53U-D-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-AZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-B52-ZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-D52-ZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZD-D2-1R5L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZD-D2-1R5L | Solenoid valve · Valves | |
| VAME-S6-W-M46 | Bracket · Mounting accessories | |
| VSVA-B-M52-MZD-A1-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VABF-S4-1-S | Intermediate plate · Connection accessories | |
| VABF-S4-1-V2B1-C-VH-20 | Vacuum block · Connection accessories | |
| VABF-S4-2-S | Intermediate plate · Connection accessories | |
| VSVA-B-M52-MZD-A2-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A2-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-M52-MZD-A2-1T1L-ANP | Solenoid valve · Valves | |
| VAMC-B-S6-CTR | Cover cap · General accessories | |
| VSVA-B-P53F-ZD-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-ZD-D2-1T1L | Solenoid valve · Valves | |
| VABF-S2-1-P1A14-G38 | Vertical pressure supply plate · Connection accessories | |
| VABF-S2-2-P1A14-G12 | Vertical pressure supply plate · Connection accessories | |
| VABF-S4-1-P1A14-G14 | Vertical pressure supply plate · Connection accessories | |
| VABF-S4-2-P1A14-G18 | Vertical pressure supply plate · Connection accessories | |
| VABF-S4-2-L1D2-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S4-1-L1D2-C | Vertical pressure shut-off plate · Connection accessories | |
| ASLR-L-S6-2016 | Inscription label · General accessories | |
| VSVA-B-P53EP-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53ED-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-ZD-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53EP-ZD-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A1-1T1L-APC | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A1-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-P53ED-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A1-1T1L-ANC | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A1-1T1L-ANP | Solenoid valve · Valves | |
| VSVA-B-T22C-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A1-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-P53EP-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A1-1T1L-APC | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A1-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-P53ED-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A1-1T1L-ANC | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A1-1T1L-ANP | Solenoid valve · Valves | |
| VSVA-B-T22C-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A1-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-P53EP-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A1-1T1L-APC | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A1-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-P53ED-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A1-1T1L-ANC | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A1-1T1L-ANP | Solenoid valve · Valves | |
| VSVA-B-T22C-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZ-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A1-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-P53EP-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-...-T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A2-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A2-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-A2-1T1L-ANP | Solenoid valve · Valves | |
| VSVA-B-T32C-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A2-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A2-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-A2-1T1L-ANP | Solenoid valve · Valves | |
| VSVA-B-T32C-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZ-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A2-1T1L-APX-0.5 | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A2-1T1L-APP | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-A2-1T1L-ANP | Solenoid valve · Valves | |
| VSVA-B-T32C-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-ZTR-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-ZH-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-Z-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-Z-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-Z-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-Z-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-Z-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22CV-AZ-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-Z-D1-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-ZTR-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-ZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-ZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-ZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-ZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-ZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-ZH-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-B52-Z-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-D52-Z-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-M52-MZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53U-Z-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53E-Z-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53C-Z-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32C-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32N-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32U-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32F-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32H-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T32W-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-T22C-AZ-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53F-Z-D2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53ED-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53ED-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53ED-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53AD-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-ZTR-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-ZH-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-Z-A1-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53EP-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53EP-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53EP-Z-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-ZTR-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-ZH-A2-1T1L | Solenoid valve · Valves | |
| VSVA-B-P53BD-Z-A2-1T1L | Solenoid valve · Valves | |
| QS-G3/4-22 | Push-in fitting · Push-in fittings | |
| PAGN-26-10-G18S | Pressure gauge · General accessories | |
| PAGN-26-1M-G18S | Pressure gauge · General accessories | |
| PAGN-26-10-P10-RG | Pressure gauge · General accessories | |
| B-1/8-F1A | Blanking plug · Other connectors | |
| B-1/4-F1A | Blanking plug · Other connectors | |
| VABA-S6-1-AP | Electrical interface · Electrical accessories |
Related Products
View Details
Festo
VTSA-ASI
MFR #VTSA-ASI
SKU #YLSH9BHU9UEMKCJ
View Details
Festo
VTUB-12
MFR #VTUB-12
SKU #YLS1UR4IQGNNPEP
View Details
Festo
VTSA-F-FB-NPT
MFR #VTSA-F-FB-NPT
SKU #YLSBW6GNVWEGMI
View Details
Festo
CPV10-EX-VI
MFR #CPV10-EX-VI
SKU #YLS28PGIGSS2H
View Details
Festo
MPA-MPM-VI
MFR #MPA-MPM-VI
SKU #YLSDGFCIEBG6EB
View Details
Festo
MS9-FRM
MFR #MS9-FRM
SKU #YLSFOA6EBWAVVVG
View Details
Festo
VTSA-ASI-NPT
MFR #VTSA-ASI-NPT
SKU #YLSPHFUGZA4IOOM
View Details
Festo
VTSA-F-MP
MFR #VTSA-F-MP
SKU #YLSOWRDUGF7EXJX
View Details
Festo
VTSA-FB
MFR #VTSA-FB
SKU #YLS2RO5UEH8BHR0
Featured Products
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Related Searches
Festo VTSA-MP priceFesto VTSA-MP quotebuy Festo VTSA-MPVTSA-MP priceVTSA-MP stock availabilityFesto spare partsFesto VTSA-MP equivalentFesto VTSA-MP specifications
