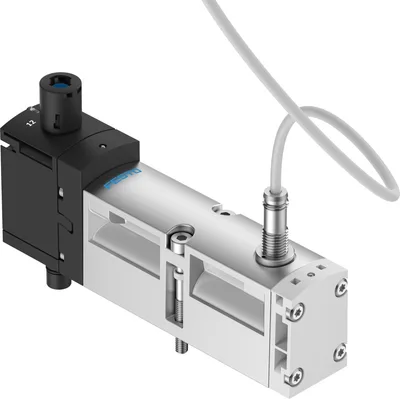

Festo VSVA-B-M52-MZTR-A1-1T1L-ANC

Solenoid valve. For valve terminal VTSA/VTSA-F. Robust metal housing

FestoMFR # VSVA-B-M52-MZTR-A1-1T1L-ANCSKU # YLST10CPBA3ANVW

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width26

pneumatic working portSub-base size 26 mm to ISO 15407-2, G1/4

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal VTSA/VTSA-F. Robust metal housing

Festo VSVA-B-M52-MZTR-A1-1T1L-ANC

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width26

Standard nominal flow rate (standardised to DIN 1343)1100

pneumatic working portSub-base size 26 mm to ISO 15407-2, G1/4

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetMechanical spring

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

Degree of protectionIP65, NEMA 4

Nominal size9

Exhaust-air functionCan be throttled, Via throttle plate, Via individual sub-base

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting via accessory, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionAny

Symbol00997391

Measuring principleInductive

lapOverlap

Reverse polarity protection sensorFor all electrical connections

Signal status displayLED

Switching position sensingNormal position with sensor

Switching status display sensorLED

Pilot pressure0.3, 1

Pilot pressure3, 10

Flow rate of valve1400

Flow rate of valve on individual sub-base1200

Valve flow rate, pneumatically linked, flow optimized1350

Flow rate of pneumatically interlinked valve1100

Switching time off54

Switching time on20

Valve - sensor switching time on60

Valve - sensor switching time off11

Duty cycle100%

Max. positive test pulse with 0 signal1200

Max. negative test pulse with 1 signal1100

Nominal operating voltage DC24

Switching outputNPN

Characteristic coil data24 V DC: 1.6 W

Immunity to surge2.5

Pollution degree3

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 50

Relative air humidity0 - 90%

Sound pressure level85

Ambient temperature-5, 50

Max. tightening torque for valve mounting1.8, 2.2

Product weight307

Operating voltage range, DC sensor10, 30

Short-circuit strength sensorPulsed

Idle current sensor10

Max. output current sensor200

Max. switching frequency sensor5000

Residual ripple sensor±10%

Voltage drop sensor2

Electrical connection4-pin, Plug, To ISO 15407-2

Sensor connectionCable, 2.5 m

Type of mountingOn sub-base

Pilot air port 12/14Sub-base size 26 mm to ISO 15407-2

Pilot exhaust port 82/84Ducted, Not ducted, Either:

Pneumatic connection, port 1Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 2Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 3Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 4Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 5Sub-base size 26 mm to ISO 15407-2

Note on materialsRoHS compliant

Material sealsFluoro rubber, NBR

Material housingDie-cast aluminium, PA

Material screwsGalvanised steel

Switching element functionN/C contact

Accessories 46

Genuine accessories that can be used with the Festo VSVA-B-M52-MZTR-A1-1T1L-ANC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ASCF-T-S6	Inscription label holder · General accessories
ASCF-M-S6	Inscription label holder · General accessories
VAMC-S6-CH	Cover cap · General accessories
VAMC-S6-CS	Cover cap · General accessories
VAMC-B-S6-CTR	Cover cap · General accessories
VABS-S4-1S-G14-B-R3	Sub-base · Connection accessories
VABB-S4-1-WT	Cover plate · General accessories
VABB-S4-2-WT	Cover plate · General accessories
VABF-S4-1-A2G2-G14	Angled connection plate · Connection accessories
VABF-S4-1-A2G2-N14	Angled connection plate · Connection accessories
VABF-S4-1-R1C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R1C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R3C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R3C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-P1A3-G14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-P1A3-N14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-F1B1-C	Throttle plate · Connection accessories
VABS-S4-1S-G14-R3	Sub-base · Connection accessories
VABF-S4-1-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABB-S2-1-WT	Cover plate · General accessories
VABF-S4-1-R6C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R7C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R6C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R7C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R1C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R1C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R6C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R6C2-C-6E	Regulator plate · Connection accessories
VABB-S2-2-WT	Cover plate · General accessories
VABF-S4-1-S	Intermediate plate · Connection accessories
VABF-S4-1-V2B1-C-VH-20	Vacuum block · Connection accessories
VABF-S4-1-P1A14-G14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-P1A14-N14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-L1D2-C	Vertical pressure shut-off plate · Connection accessories
