How can I get a price quote for FESTO NEBV-S1W37-K-5-LE37?

You can request a fast quote for FESTO NEBV-S1W37-K-5-LE37 from Yılsa Engineering. Reference part number CEY-937FC781F4B2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO NEBV-S1W37-K-5-LE37 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO NEBV-S1W37-K-5-LE37 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO NEBV-S1W37-K-5-LE37?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

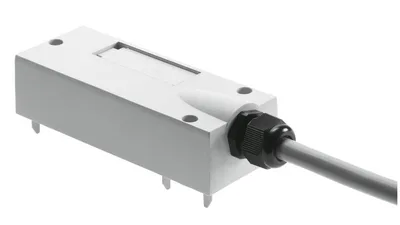

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO NEBV-S1W37-K-5-LE37

Connecting cable. For solenoid coils form A, form B or form C. For solenoid coils with thread M8x1 or M12x1 A-coded. For solenoid coils ZC or various special connection patterns. Pre-assembled at one or both ends. Cable length 0.1 ... 30 m. With PUR cable. Ambient temperature -25 ... +80 °C

FESTOMFR # NEBV-S1W37-K-5-LE37SKU # CEY-937FC781F4B2

Conforms to standardDIN 47100

Cable designationWith inscription label holder

Product weight1410

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

FESTO NEBV-S1W37-K-5-LE37

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Area of applicationOnly for multi-pin plug connection valve terminal VTSA/VTSA-F

Conforms to standardDIN 47100

Cable designationWith inscription label holder

Product weight1410

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemSub-D

Electrical connection 1, number of connections/cores37

Electrical connection 1, used connections/cores37

Electrical connection 1, type of mounting3x screw M4

Electrical connection 1, connection pattern00995644

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores37

Electrical connection 2, used connections/cores37

Operational voltage range DC0, 30

Current rating at 40° C2

Immunity to surge1

Cable length5

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, fixed cable51

Bending radius, moving cable128

Cable diameter12.8

Cable structure37 x 0.34 mm²

Nominal cross section conductor0.34

Degree of protectionIP65, NEMA 4

Note on degree of protectionIn mounted state

Ambient temperature-5, 50

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingPA

Material insulating sheathPVC
