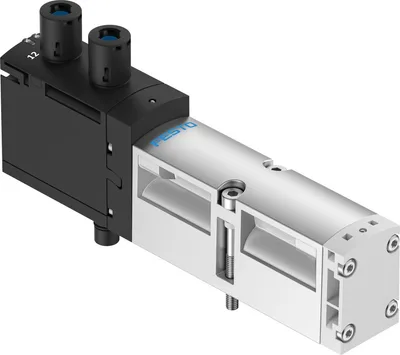

Festo VSVA-B-T32C-AZTR-A1-1T1L

Solenoid valve. For valve terminal VTSA/VTSA-F. Robust metal housing

FestoMFR # VSVA-B-T32C-AZTR-A1-1T1LSKU # YLS1RNO8WCQXXKS

Valve function2x3/2 closed monostable

Type of actuationElectrical

Construction width26

Operating voltage24 V DC

Operating pressure0.3, 1

Operating pressure3, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal VTSA/VTSA-F. Robust metal housing

Festo VSVA-B-T32C-AZTR-A1-1T1L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2x3/2 closed monostable

Type of actuationElectrical

Construction width26

Standard nominal flow rate (standardised to DIN 1343)900

pneumatic working portSub-base size 26 mm to ISO 15407-1, Sub-base size 01 to VDMA 24563, G1/4

Operating voltage24 V DC

Operating pressure0.3, 1

Operating pressure3, 10

DesignPiston gate valve

Approvalc UL us - Recognised (Oil)

Degree of protectionIP65, NEMA 4

Exhaust-air functionCan be throttled, Via throttle plate, Via individual sub-base

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting via accessory, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal, Internal

Flow directionNon-reversible

Symbol00991817

lapOverlap

Signal status displayLED

Pilot pressure0.3, 1

Pilot pressure3, 10

Flow rate of valve1250

Flow rate of valve on individual sub-base1100

Valve flow rate, pneumatically linked, flow optimized1150

Flow rate of pneumatically interlinked valve900

Switching time off38

Switching time on20

Duty cycle100%

Max. positive test pulse with 0 signal1500

Max. negative test pulse with 1 signal1200

Max. current consumption60

Nominal operating voltage DC24

Characteristic coil data24 V DC: 1.3 W

Immunity to surge2.5

Pollution degree3

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Relative air humidity0 - 90%

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Product weight335

Electrical connectionPlug-in, To ISO 15407-2

Type of mountingOn sub-base

Pilot air port 12/14Sub-base size 26 mm to ISO 15407-2

Pilot exhaust port 82/84Ducted, Not ducted as per standard, Either:

Pneumatic connection, port 1Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 2Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 3Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 4Sub-base size 26 mm to ISO 15407-2

Pneumatic connection, port 5Sub-base size 26 mm to ISO 15407-2

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingDie-cast aluminium, PA

Material screwsGalvanised steel

Accessories 46

Genuine accessories that can be used with the Festo VSVA-B-T32C-AZTR-A1-1T1L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABS-S4-1S-G14-B-R3	Sub-base · Connection accessories
ASCF-T-S6	Inscription label holder · General accessories
ASCF-M-S6	Inscription label holder · General accessories
VAMC-S6-CH	Cover cap · General accessories
VAMC-S6-CS	Cover cap · General accessories
VAMC-B-S6-CTR	Cover cap · General accessories
VABB-S4-1-WT	Cover plate · General accessories
VABB-S4-2-WT	Cover plate · General accessories
VABF-S4-1-A2G2-G14	Angled connection plate · Connection accessories
VABF-S4-1-A2G2-N14	Angled connection plate · Connection accessories
VABF-S4-1-R1C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R1C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R3C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R3C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-P1A3-G14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-P1A3-N14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-F1B1-C	Throttle plate · Connection accessories
VABS-S4-1S-G14-R3	Sub-base · Connection accessories
VABF-S4-1-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABB-S2-1-WT	Cover plate · General accessories
VABF-S4-1-R6C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R7C2-C-6	Regulator plate · Connection accessories
VABF-S4-1-R6C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R7C2-C-10	Regulator plate · Connection accessories
VABF-S4-1-R1C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R1C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R2C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R4C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R5C2-C-6E	Regulator plate · Connection accessories
VABF-S4-1-R6C2-C-10E	Regulator plate · Connection accessories
VABF-S4-1-R6C2-C-6E	Regulator plate · Connection accessories
VABB-S2-2-WT	Cover plate · General accessories
VABF-S4-1-S	Intermediate plate · Connection accessories
VABF-S4-1-V2B1-C-VH-20	Vacuum block · Connection accessories
VABF-S4-1-P1A14-G14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-P1A14-N14	Vertical pressure supply plate · Connection accessories
VABF-S4-1-L1D2-C	Vertical pressure shut-off plate · Connection accessories
