How can I get a price quote for FESTO VABF-S2-1-R7C2-C-6?

You can request a fast quote for FESTO VABF-S2-1-R7C2-C-6 from Yılsa Engineering. Reference part number CEY-937FC781ED01. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VABF-S2-1-R7C2-C-6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VABF-S2-1-R7C2-C-6 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VABF-S2-1-R7C2-C-6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

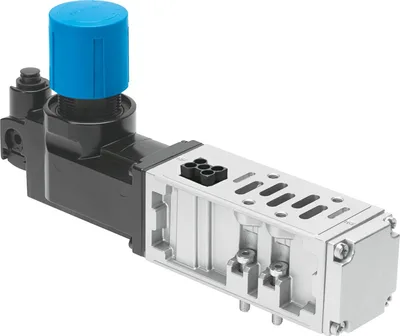

FESTO VABF-S2-1-R7C2-C-6

Regulator plate

FESTOMFR # VABF-S2-1-R7C2-C-6SKU # CEY-937FC781ED01

Construction width42

Based on standardISO 5599-2

Mounting positionAny

Vertical pneumatic linkagePressure regulator for 4 reversible

Symbol00991945

Selection of pressure gaugepossible

Have questions?Chat on WhatsApp

About This Product

FESTO VABF-S2-1-R7C2-C-6 (Regulator plate) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VABF-S2-1-R7C2-C-6 — price, stock availability and technical specifications.

FESTO VABF-S2-1-R7C2-C-6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width42

Based on standardISO 5599-2

Mounting positionAny

Vertical pneumatic linkagePressure regulator for 4 reversible

Controller functionOutput pressure constant, With secondary exhausting

Symbol00991945

Selection of pressure gaugepossible

Pressure regulation range0.05, 0.6

Pressure regulation range0.5, 6

Pressure regulation range7.25, 87

Inlet pressure 10.5, 10

Inlet pressure 10.05, 1

Inlet pressure 17.25, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Degree of protectionIP65, NEMA 4

Ambient temperature-5, 50

Product weight640

Mounting with vertical stackingOn manifold sub-base, On individual sub-base

Pressure gauge connectionWith retaining clamp

Material control panelProcess automation

Material regulator housingDie-cast aluminium

Accessories 2

Genuine accessories that can be used with the FESTO VABF-S2-1-R7C2-C-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
