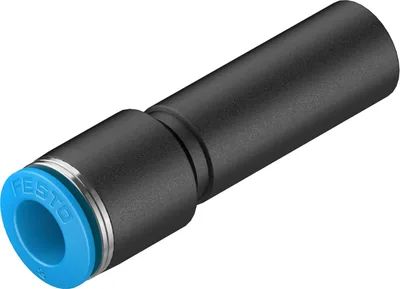

Festo QS-12H-8

Photo may not represent actual item. Refer to name and product specs for all details.

Festo QS-12H-8

Push-in connector. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FestoMFR # QS-12H-8SKU # CEY-937FC78266AF
SizeStandard
Nominal size5.4
Tubing insertion depth18.1
Mounting positionAny
DesignStraight design
Size of pack10
Share
Have questions?Chat on WhatsApp

About This Product

Push-in connector. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

Festo QS-12H-8

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size5.4
Tubing insertion depth18.1
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Ambient temperature-10, 80
Product weight6.7
Pneumatic connection, port 1Push-in sleeve Ø 12 mm
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 77

Genuine accessories that can be used with the Festo QS-12H-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PUN-H-8X1,25-NTPlastic tubing · Tubes
PUN-H-8X1,25-BLPlastic tubing · Tubes
PUN-H-8X1,25-SWPlastic tubing · Tubes
PUN-H-8X1,25-TBLPlastic tubing · Tubes
PUN-8X1,25-SIPlastic tubing · Tubing
PAN-8X1,25-SIPlastic tubing · Tubing
PUN-8X1,25-DUO-SIDUO tubing · Tubing
PUN-8X1,25-BLPlastic tubing · Tubing
PUN-8X1,25-SWPlastic tubing · Tubing
PUN-8X1,25-DUO-BSDUO tubing · Tubing
PUN-8X1,25-RTPlastic tubing · Tubing
PUN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-DUODUO tubing · Tubing
PUN-8X1,25-S-1-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-SI-400Plastic tubing · Tubing
PUN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SWPlastic tubing · Tubing
PEN-8X1,25-NTPlastic tubing · Tubing
PAN-8X1,25-NTPlastic tubing · Tubing
PEN-8X1,25-SW-400Plastic tubing · Tubing
PEN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SI-400Plastic tubing · Tubing
PEN-8X1,25-BLPlastic tubing · Tubing
PEN-8X1,25-SIPlastic tubing · Tubing
PEN-8X1,25-GNPlastic tubing · Tubing
PEN-8X1,25-RTPlastic tubing · Tubing
PEN-8X1,25-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-8X1,25-SI-400Plastic tubing · Tubing
PAN-8X1,25-BL-400Plastic tubing · Tubing
PAN-8X1,25-SW-400Plastic tubing · Tubing
PAN-8X1,25-BLPlastic tubing · Tubing
PAN-8X1,25-SWPlastic tubing · Tubing
PAN-8X1,25-GNPlastic tubing · Tubing
PAN-8X1,25-RTPlastic tubing · Tubing
PAN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-BL-400Plastic tubing · Tubing
PUN-H-8X1,25-NT-400Plastic tubing · Tubing
PUN-H-8X1,25-SI-400Plastic tubing · Tubing
PUN-H-8X1,25-SIPlastic tubing · Tubing
PUN-H-8X1,25-RTPlastic tubing · Tubing
PUN-H-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-GEPlastic tubing · Tubing
PUN-H-8X1,25-TBL-400Plastic tubing · Tubing
PUN-H-8X1,25-TSWPlastic tubing · Tubing
PUN-H-8X1,25-TSW-400Plastic tubing · Tubing
PUN-H-8X1,25-TRTPlastic tubing · Tubing
PUN-H-8X1,25-TRT-400Plastic tubing · Tubing
PUN-H-8X1,25-TGNPlastic tubing · Tubing
PUN-H-8X1,25-TGN-400Plastic tubing · Tubing
PUN-H-8X1,25-TGEPlastic tubing · Tubing
PUN-H-8X1,25-TGE-400Plastic tubing · Tubing
PTFEN-8X1-NTPlastic tubing · Tubing
PTFEN-8X1-NT-400Plastic tubing · Tubing
PUN-H-F-8X1,25-RTPlastic tubing · Tubing
PUN-H-F-8X1,25-BLPlastic tubing · Tubing
PUN-H-F-8X1,25-TBLPlastic tubing · Tubing
PUN-H-F-8X1,25-GNPlastic tubing · Tubing
PUN-H-F-8X1,25-GEPlastic tubing · Tubing
PUN-H-F-8X1,25-SWPlastic tubing · Tubing
PUN-H-F-8X1,25-NTPlastic tubing · Tubing
PUN-H-SF-8X1,55-SWPlastic tubing · Tubing
PUN-H-SF-8X1,55-BLPlastic tubing · Tubing
