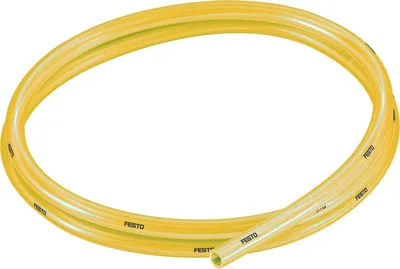

Festo PUN-H-8X1,25-TGE

Plastic tubing. Polyurethane. High resistance to microbes and hydrolysis. Suitable for use with energy chains. Clean room-compatible combination with fitting NPKA. Also available as DUO plastic tubing. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/PUN_H

FestoMFR # PUN-H-8X1,25-TGESKU # YLS22HF06VMVRFJ

Outside diameter8

Flow-relevant bending radius37

Inside diameter5.7

Min. bending radius21

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

Festo PUN-H-8X1,25-TGE

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter8

Flow-relevant bending radius37

Inside diameter5.7

Min. bending radius21

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee supplementary material information

Ambient temperature-35, 60

Product weight according to length0.0287

Pneumatic connectionFor push-in connector O.D. 8 mm, For push-in connector outside diameter of 5/16", For barbed fitting inside diameter of 6 mm with union nut

ColourTranslucent yellow

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)

Accessories 14

Genuine accessories that can be used with the Festo PUN-H-8X1,25-TGE motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
KK-6	Multi-tube holder · Mounting accessories
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
QS-G1/4-8	Push-in fitting · Fittings
QS-G1/4-8-I	Push-in fitting · Fittings
QSL-G1/4-8	Push-in L-fitting · Fittings
NPQM-D-G14-Q8-P10	Push-in fitting · Fittings
NPQM-L-G14-Q8-P10	Push-in L-fitting · Fittings
QS-1/4-8	Push-in fitting · Fittings
QS-1/4-8-I	Push-in fitting · Fittings
QSL-1/4-8	Push-in L-fitting · Fittings
VFOE-LS-T-G18-Q8	One-way flow control valve · Function fittings
PKS-6	Tubing support · General accessories
