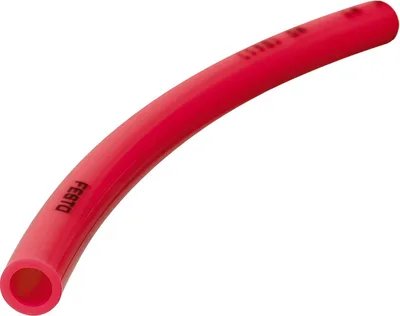

FESTO PAN-8X1,25-RT

Plastic tubing. Polyamide. High thermal and mechanical load capacities. Highly resistant to microbes. Operating medium: compressed air, vacuum

FESTOMFR # PAN-8X1,25-RTSKU # CEY-937FC781E0CF

Outside diameter8

Flow-relevant bending radius43

Inside diameter5.9

Min. bending radius22

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1.5

Have questions?Chat on WhatsApp

About This Product

Plastic tubing. Polyamide. High thermal and mechanical load capacities. Highly resistant to microbes. Operating medium: compressed air, vacuum

FESTO PAN-8X1,25-RT

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter8

Flow-relevant bending radius43

Inside diameter5.9

Min. bending radius22

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1.5

Temperature-dependent operating pressure-0.95, 15

Temperature-dependent operating pressure-13.775, 217.5

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-30, 80

Product weight according to length0.024

Pneumatic connectionFor push-in connector O.D. 8 mm, For barbed fitting inside diameter of 6 mm with union nut, For barbed fitting inside diameter of 6 mm

ColourRed

Shore hardnessD 55 +/-3

Note on materialsRoHS compliant

Material tubingTPE-A

Accessories 8

Genuine accessories that can be used with the FESTO PAN-8X1,25-RT motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/8-8	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
NPQH-L-G18-Q8-P10	Push-in L-fitting · Fittings
NPQH-D-G18-Q8-P10	Push-in fitting · Fittings
KK-6	Multi-tube holder · General accessories
PKB-50-BL	Spiral wrap for tubing · General accessories
PKS-6	Tubing support · General accessories
ZRS	Pipe and tubing cutter · General accessories
