How can I get a price quote for Festo PUN-H-SF-8X1,55-SW?

You can request a fast quote for Festo PUN-H-SF-8X1,55-SW from Yılsa Engineering. Reference part number YLSBZA6CZYPNEG5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo PUN-H-SF-8X1,55-SW in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo PUN-H-SF-8X1,55-SW genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo PUN-H-SF-8X1,55-SW?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

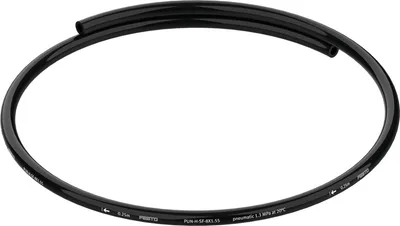

Festo PUN-H-SF-8X1,55-SW

Plastic tubing. Polyurethane. Very resistant to kinking and extremely sturdy thanks to increased wall thickness. Maximum flexibility despite increased wall thickness. High resistance to microbes and hydrolysis. Suitable for use with energy chains. Operating medium: compressed air, vacuum, water. Permitted operating media: Compressed air, vacuum, water in accordance with the manufacturer's declaration

FestoMFR # PUN-H-SF-8X1,55-SWSKU # YLSBZA6CZYPNEG5

Outside diameter8

Flow-relevant bending radius31

Inside diameter4.9

Min. bending radius15

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

Festo PUN-H-SF-8X1,55-SW

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter8

Flow-relevant bending radius31

Inside diameter4.9

Min. bending radius15

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.3

Temperature-dependent operating pressure-0.95, 13

Temperature-dependent operating pressure-13.775, 188.5

Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.7 MPa at 0–60 °C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee supplementary material information

Ambient temperature-35, 80

Product weight according to length0.04

Pneumatic connectionFor push-in connector O.D. 8 mm

ColourBlack

Shore hardnessD 54 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)
