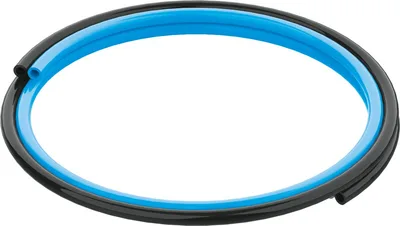

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO PUN-8X1,25-DUO-BS

DUO tubing. Polyurethane. High resistance to stress cracks. Suitable for use with energy chains. Also available as DUO plastic tubing. Operating medium: compressed air, vacuum

FESTOMFR # PUN-8X1,25-DUO-BSSKU # CEY-937FC7824DD9

Outside diameter8

Flow-relevant bending radius37

Inside diameter5.7

Min. bending radius24

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1

Have questions?Chat on WhatsApp

About This Product

DUO tubing. Polyurethane. High resistance to stress cracks. Suitable for use with energy chains. Also available as DUO plastic tubing. Operating medium: compressed air, vacuum

FESTO PUN-8X1,25-DUO-BS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter8

Flow-relevant bending radius37

Inside diameter5.7

Min. bending radius24

Instructions on useTPE-U, ester-based, The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Otherwise the plastic tubing can get damaged.

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.7

Operating pressure complete temperature range-0.95, 7

Operating pressure complete temperature range-13.775, 101.5

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-35, 60

Product weight according to length0.0604

Pneumatic connectionFor push-in connector O.D. 8 mm, For barbed fitting inside diameter of 6 mm with union nut, For barbed fitting inside diameter of 6 mm

ColourBlue/black

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)

Accessories 16

Genuine accessories that can be used with the FESTO PUN-8X1,25-DUO-BS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
QS-G1/4-8	Push-in fitting · Fittings
QS-G1/4-8-I	Push-in fitting · Fittings
QSL-G1/4-8	Push-in L-fitting · Fittings
NPQM-D-G14-Q8-P10	Push-in fitting · Fittings
NPQM-L-G14-Q8-P10	Push-in L-fitting · Fittings
KK-6	Multi-tube holder · Mounting accessories
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8	One-way flow control valve · Function fittings
QS-1/4-8	Push-in fitting · Fittings
QS-1/4-8-I	Push-in fitting · Fittings
QSL-1/4-8	Push-in L-fitting · Fittings
QS-1/8-8	Push-in fitting · Fittings
QSL-1/8-8	Push-in L-fitting · Fittings
PKS-6	Tubing support · General accessories
