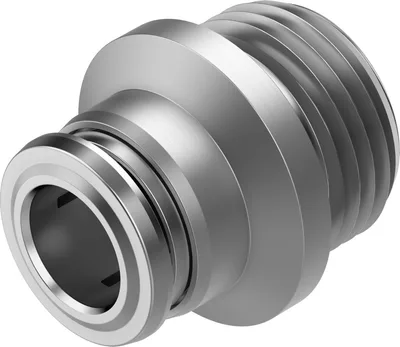

Festo NPQR-DK-G38-Q8
Push-in fitting. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
SizeStandard
Nominal size6.3
Tubing insertion depth16.8
Type of seal on screwed plugSealing ring
Mounting positionAny
DesignStraight design
About This Product
Push-in fitting. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Festo NPQR-DK-G38-Q8
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size6.3
Tubing insertion depth16.8
Type of seal on screwed plugSealing ring
Mounting positionAny
DesignStraight design
Size of pack1
DesignPush-pull principle
Symbol00997424
Operating pressure complete temperature range-0.095, 1.6
Operating pressure complete temperature range-0.95, 16
Operating pressure complete temperature range-13.775, 232
Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C
Certificate issuing authorityNSF C0556009
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - Very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Suitable for use with foodSee declaration of conformity, NSF/ANSI 169
Ambient temperature-20, 150
Nominal torque9
Tolerance for nominal tightening torque±20%
Product weight20.5
Type of mountingInternal hexagon A/F 6
Pneumatic connection, port 1Male thread G3/8
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Colour of release ringSilver
Note on materialsRoHS compliant
Material housingHigh-alloy stainless steel
Material thread sealFluoro rubber
Guard ring materialHigh-alloy stainless steel
Material release ringHigh-alloy stainless steel
Material tubing sealFluoro rubber
Material tubing clamp componentHigh-alloy stainless steel
Thrust ring materialPPSU
Accessories 102
Genuine accessories that can be used with the Festo NPQR-DK-G38-Q8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PFAN-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-CM-8-SW | Plastic tubing · Tubing | |
| PAN-V0-8X1-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SI | Plastic tubing · Tubing | |
| PAN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-DUO-SI | DUO tubing · Tubing | |
| PUN-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-DUO-BS | DUO tubing · Tubing | |
| PAN-V0-8X1-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-GN | Plastic tubing · Tubing | |
| PLN-8X1,25-NT | Plastic tubing · Tubing | |
| PLN-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-DUO | DUO tubing · Tubing | |
| PUN-8X1,25-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-V0-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-WS | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BR | Plastic tubing · Tubing | |
| PAN-V0-8X1-GN | Plastic tubing · Tubing | |
| PAN-V0-8X1-RT | Plastic tubing · Tubing | |
| PAN-V0-8X1-WS | Plastic tubing · Tubing | |
| PAN-V0-8X1-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-R-8X1,5-SI | Heavy-duty tubing · Tubing | |
| PEN-8X1,25-SW | Plastic tubing · Tubing | |
| PEN-8X1,25-NT | Plastic tubing · Tubing | |
| PAN-8X1,25-NT | Plastic tubing · Tubing | |
| PEN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL | Plastic tubing · Tubing | |
| PEN-8X1,25-SI | Plastic tubing · Tubing | |
| PEN-8X1,25-GN | Plastic tubing · Tubing | |
| PEN-8X1,25-RT | Plastic tubing · Tubing | |
| PEN-8X1,25-GE | Plastic tubing · Tubing | |
| PAN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL | Plastic tubing · Tubing | |
| PAN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-8X1,25-GN | Plastic tubing · Tubing | |
| PAN-8X1,25-RT | Plastic tubing · Tubing | |
| PAN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PLN-8X1,25-BL | Plastic tubing · Tubing | |
| PLN-8X1,25-SI | Plastic tubing · Tubing | |
| PLN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X2-SW-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BL-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GN-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-RT-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-WS-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GE-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BR-C | Plastic tubing · Tubing | |
| PAN-MF-8X1-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE-400 | Plastic tubing · Tubing | |
| PTFEN-8X1-NT | Plastic tubing · Tubing | |
| PTFEN-8X1-NT-400 | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-SF-8X1,55-SW | Plastic tubing · Tubing | |
| PUN-H-SF-8X1,55-BL | Plastic tubing · Tubing |
