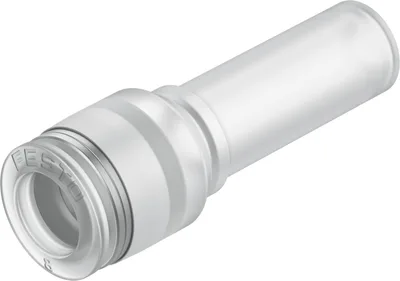

Festo NPQP-D-Q8-S10-FD-P10

Photo may not represent actual item. Refer to name and product specs for all details.

Festo NPQP-D-Q8-S10-FD-P10

Push-in connector. Polypropylene. Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN. For use with extreme media influences. Food grade see www.festo.com/certificates/NPQP. Operating medium: compressed air, vacuum. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FestoMFR # NPQP-D-Q8-S10-FD-P10SKU # CEY-937FC7825B9D
SizeStandard
Nominal size5.4
DesignStraight design
Size of pack10
DesignPush-pull principle
Temperature-dependent operating pressure-0.095, 1
Share
Have questions?Chat on WhatsApp

About This Product

Push-in connector. Polypropylene. Low-cost alternative to stainless steel: resistant to most cleaning agents in combination with tubing PLN. For use with extreme media influences. Food grade see www.festo.com/certificates/NPQP. Operating medium: compressed air, vacuum. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

Festo NPQP-D-Q8-S10-FD-P10

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size5.4
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.45
Operating pressure complete temperature range-0.95, 4.5
Operating pressure complete temperature range-13.775, 65.25
Temperature-dependent operating pressure-0.095, 1
Temperature-dependent operating pressure-0.95, 10
Temperature-dependent operating pressure-13.775, 145
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - Very high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitable for use with foodSee supplementary material information
Ambient temperature-20, 60
Product weight4.7
Pneumatic connection, port 1Push-in sleeve Ø 10 mm
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Colour of release ringTransparent white
Note on materialsRoHS compliant
Material housingPP
Material tubing clamp componentHigh-alloy stainless steel
