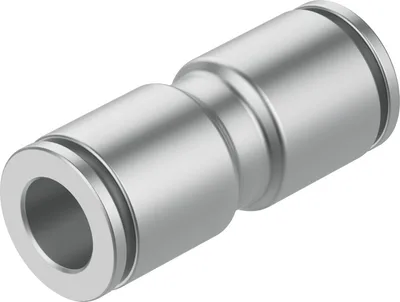

Festo NPQH-D-Q8-E-P10

Photo may not represent actual item. Refer to name and product specs for all details.

Festo NPQH-D-Q8-E-P10

Connector. Solid-metal brass, chemically nickel-plated. High corrosion and chemical resistance. Highly resistant to temperatures and pressure. Food grade see www.festo.com/certificates/NPQH. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/NPQH. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FestoMFR # NPQH-D-Q8-E-P10SKU # YLSQZF7S3T6SDO
SizeStandard
Nominal size7
Tubing insertion depth16
Mounting positionAny
DesignStraight design
Size of pack10
Share
Have questions?Chat on WhatsApp

About This Product

Connector. Solid-metal brass, chemically nickel-plated. High corrosion and chemical resistance. Highly resistant to temperatures and pressure. Food grade see www.festo.com/certificates/NPQH. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/NPQH. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

Festo NPQH-D-Q8-E-P10

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size7
Tubing insertion depth16
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Symbol00997424
Operating pressure complete temperature range-0.095, 2
Operating pressure complete temperature range-0.95, 20
Operating pressure complete temperature range-13.775, 290
Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
Certificate issuing authorityNSF C0523185
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Suitable for use with foodSee declaration of conformity, NSF/ANSI 169
Ambient temperature0, 150
Product weight18.5
Pneumatic connection, port 1For tubing outer diameter of 8 mm
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Colour of release ringSilver
Note on materialsRoHS compliant
Material housingBrass, chemically nickel-plated
Guard ring materialPEI
Material release ringChemically nickel-plated brass
Material tubing sealFluoro rubber
Material tubing clamp componentHigh-alloy stainless steel
Thrust ring materialPEI

Accessories 95

Genuine accessories that can be used with the Festo NPQH-D-Q8-E-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PFAN-8X1,25-NTPlastic tubing · Tubes
PAN-R-8X1,5-SIHeavy-duty tubing · Tubes
PTFEN-8X1-NTPlastic tubing · Tubes
PUN-CM-8-SWPlastic tubing · Tubing
PUN-8X1,25-SIPlastic tubing · Tubing
PAN-8X1,25-SIPlastic tubing · Tubing
PUN-8X1,25-DUO-SIDUO tubing · Tubing
PUN-8X1,25-BLPlastic tubing · Tubing
PUN-8X1,25-SWPlastic tubing · Tubing
PUN-8X1,25-DUO-BSDUO tubing · Tubing
PUN-8X1,25-RTPlastic tubing · Tubing
PUN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-GNPlastic tubing · Tubing
PLN-8X1,25-NTPlastic tubing · Tubing
PLN-8X1,25-SWPlastic tubing · Tubing
PUN-H-8X1,25-NTPlastic tubing · Tubing
PUN-H-8X1,25-BLPlastic tubing · Tubing
PUN-H-8X1,25-SWPlastic tubing · Tubing
PUN-H-8X1,25-DUODUO tubing · Tubing
PUN-8X1,25-S-1-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-V0-8X1,25-SWPlastic tubing · Tubing
PUN-V0-8X1,25-BLPlastic tubing · Tubing
PUN-V0-8X1,25-GNPlastic tubing · Tubing
PUN-V0-8X1,25-RTPlastic tubing · Tubing
PUN-V0-8X1,25-WSPlastic tubing · Tubing
PUN-V0-8X1,25-GEPlastic tubing · Tubing
PUN-V0-8X1,25-BRPlastic tubing · Tubing
PUN-8X1,25-SI-400Plastic tubing · Tubing
PUN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SWPlastic tubing · Tubing
PEN-8X1,25-NTPlastic tubing · Tubing
PAN-8X1,25-NTPlastic tubing · Tubing
PEN-8X1,25-SW-400Plastic tubing · Tubing
PEN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SI-400Plastic tubing · Tubing
PEN-8X1,25-BLPlastic tubing · Tubing
PEN-8X1,25-SIPlastic tubing · Tubing
PEN-8X1,25-GNPlastic tubing · Tubing
PEN-8X1,25-RTPlastic tubing · Tubing
PEN-8X1,25-GEPlastic tubing · Tubing
PAN-8X1,25-SI-400Plastic tubing · Tubing
PAN-8X1,25-BL-400Plastic tubing · Tubing
PAN-8X1,25-SW-400Plastic tubing · Tubing
PAN-8X1,25-BLPlastic tubing · Tubing
PAN-8X1,25-SWPlastic tubing · Tubing
PAN-8X1,25-GNPlastic tubing · Tubing
PAN-8X1,25-RTPlastic tubing · Tubing
PAN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-SW-400Plastic tubing · Tubing
PLN-8X1,25-BLPlastic tubing · Tubing
PLN-8X1,25-SIPlastic tubing · Tubing
PLN-8X1,25-RTPlastic tubing · Tubing
PUN-H-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-BL-400Plastic tubing · Tubing
PUN-H-8X1,25-NT-400Plastic tubing · Tubing
PUN-H-8X1,25-SI-400Plastic tubing · Tubing
PUN-H-8X1,25-SIPlastic tubing · Tubing
PUN-H-8X1,25-RTPlastic tubing · Tubing
PUN-H-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-GEPlastic tubing · Tubing
PUN-V0-8X2-SW-CPlastic tubing · Tubing
PUN-V0-8X2-BL-CPlastic tubing · Tubing
PUN-V0-8X2-GN-CPlastic tubing · Tubing
PUN-V0-8X2-RT-CPlastic tubing · Tubing
PUN-V0-8X2-WS-CPlastic tubing · Tubing
PUN-V0-8X2-GE-CPlastic tubing · Tubing
PUN-V0-8X2-BR-CPlastic tubing · Tubing
PUN-H-8X1,25-TBLPlastic tubing · Tubing
PUN-H-8X1,25-TBL-400Plastic tubing · Tubing
PUN-H-8X1,25-TSWPlastic tubing · Tubing
PUN-H-8X1,25-TSW-400Plastic tubing · Tubing
PUN-H-8X1,25-TRTPlastic tubing · Tubing
PUN-H-8X1,25-TRT-400Plastic tubing · Tubing
PUN-H-8X1,25-TGNPlastic tubing · Tubing
PUN-H-8X1,25-TGN-400Plastic tubing · Tubing
PUN-H-8X1,25-TGEPlastic tubing · Tubing
PUN-H-8X1,25-TGE-400Plastic tubing · Tubing
PTFEN-8X1-NT-400Plastic tubing · Tubing
PUN-H-F-8X1,25-RTPlastic tubing · Tubing
PUN-H-F-8X1,25-BLPlastic tubing · Tubing
PUN-H-F-8X1,25-TBLPlastic tubing · Tubing
PUN-H-F-8X1,25-GNPlastic tubing · Tubing
PUN-H-F-8X1,25-GEPlastic tubing · Tubing
PUN-H-F-8X1,25-SWPlastic tubing · Tubing
PUN-H-F-8X1,25-NTPlastic tubing · Tubing
PUN-H-SF-8X1,55-SWPlastic tubing · Tubing
PUN-H-SF-8X1,55-BLPlastic tubing · Tubing
