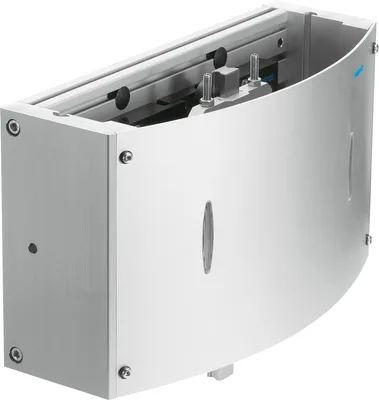

FESTO HSP-16-AS-SD

Handling module. Function module for automatically repositioning, feeding and removing small parts in extremely confined spaces. Guided vertical and horizontal motion sequence. High precision and rigidity. Compact design. Extremely short cycle times. Cost-optimised. Stroke adjustment along Y- and Z-axes

FESTOMFR # HSP-16-AS-SDSKU # CEY-937FC782089B

Size16

Y stroke90, 110

Z stroke35, 50

Z stroke, working stroke20

CushioningNoise reduction via buffers

Mounting positionGuide rail, Vertical

Have questions?Chat on WhatsApp

About This Product

FESTO HSP-16-AS-SD

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size16

Y stroke90, 110

Z stroke35, 50

Z stroke, working stroke20

CushioningNoise reduction via buffers

Mounting positionGuide rail, Vertical

DesignCross guide, Force pilot operated motion sequence

Position detectionVia proximity switch

Protection against torque/guideCross guide

Min. cycle time0.8

Repetition accuracy±0.01 mm

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature0, 60

Max. drive torque at drive shaft2.5

Max. axial force at drive shaft30

Max. torque Mx dynamic2.4

Max. torque Mx static10

Max. torque My dynamic2.4

Max. torque My static10

Max. torque Mz dynamic2.4

Max. torque Mz static10

Max. effective load1

Max. radial force at drive shaft75

Max. process force in Y direction35

Theoretical force at 0.6 MPa (6 bar, 87 psi)50

Product weight4300

Mounting of front unitWith through-hole

Type of mountingWith through-hole, With slot nuts

Material stopsHigh-alloy steel

Material coverAnodised wrought aluminium alloy

Material spring pressure pieceHigh-alloy steel

Material base plateWrought aluminium alloy

Material retaining bracketWrought aluminium alloy

Material cross-guideTempered steel

Material swivel leverCase-hardened steel, Burnished

Material slotted guide plateCase-hardened steel, Burnished

Material side componentsWrought aluminium alloy

Material sensor railWrought aluminium alloy, anodised

Material barWrought aluminium alloy, anodised

Material setting screwHigh-alloy steel

Accessories 39

Genuine accessories that can be used with the FESTO HSP-16-AS-SD motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
ABP-5-S	Slot cover · Mounting accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
HMBN-5-M5-10	Slot nut · Mounting accessories
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
BWR-HSP-16	Wait position module · Mounting accessories
BWL-HSP-16	Wait position module · Mounting accessories
MKRP-2	Installation kit · Mounting accessories
SMBK-8	Clip · Mounting accessories
SMBN-10	Mounting · Mounting kits for proximity sensors, other sensors
HAPG-71-B	Adapter kit · Mounting accessories
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMM-8	Positioning element · Mounting accessories
SMT-8-SL-PS-LED-24-B	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
DHAA-G-H4-16-B11-16	Adapter kit · Mounting accessories
DHAA-D-H4/H5-16/25-Q11-12	Adapter kit · Mounting accessories
DHAA-D-H4/H5-12/16-Q11-10	Adapter kit · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
