How can I get a price quote for FESTO HSP-12-AS?

You can request a fast quote for FESTO HSP-12-AS from Yılsa Engineering. Reference part number CEY-937FC78208A4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO HSP-12-AS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO HSP-12-AS genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO HSP-12-AS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

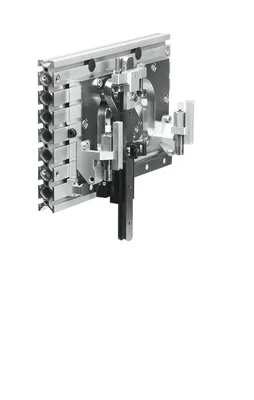

FESTO HSP-12-AS

Handling module. Function module for automatically repositioning, feeding and removing small parts in extremely confined spaces. Guided vertical and horizontal motion sequence. High precision and rigidity. Compact design. Extremely short cycle times. Cost-optimised. Stroke adjustment along Y- and Z-axes

FESTOMFR # HSP-12-ASSKU # CEY-937FC78208A4

Size12

Y stroke52, 68

Z stroke20, 30

Z stroke, working stroke15

CushioningNoise reduction via buffers

Mounting positionGuide rail, Vertical

Have questions?Chat on WhatsApp

About This Product

FESTO HSP-12-AS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

Y stroke52, 68

Z stroke20, 30

Z stroke, working stroke15

CushioningNoise reduction via buffers

Mounting positionGuide rail, Vertical

DesignCross guide, Force pilot operated motion sequence

Position detectionVia proximity switch

Protection against torque/guideCross guide

Min. cycle time0.6

Repetition accuracy±0.01 mm

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature0, 60

Max. drive torque at drive shaft1.25

Max. axial force at drive shaft18

Max. torque Mx dynamic1.1

Max. torque Mx static5

Max. torque My dynamic1.1

Max. torque My static5

Max. torque Mz dynamic1.1

Max. torque Mz static5

Max. effective load0.5

Max. radial force at drive shaft45

Max. process force in Y direction30

Theoretical force at 0.6 MPa (6 bar, 87 psi)40

Product weight1800

Mounting of front unitWith through-hole

Type of mountingWith through-hole, With slot nuts

Material stopsHigh-alloy steel

Material spring pressure pieceHigh-alloy steel

Material base plateWrought aluminium alloy

Material retaining bracketWrought aluminium alloy

Material cross-guideTempered steel

Material swivel leverCase-hardened steel, Burnished

Material slotted guide plateCase-hardened steel, Burnished

Material side componentsWrought aluminium alloy

Material sensor railWrought aluminium alloy, anodised

Material barWrought aluminium alloy, anodised

Material setting screwHigh-alloy steel

Accessories 38

Genuine accessories that can be used with the FESTO HSP-12-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
ABP-5-S	Slot cover · Mounting accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
HMBN-5-M5-10	Slot nut · Mounting accessories
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
BWR-HSP-12	Wait position module · Mounting accessories
BWL-HSP-12	Wait position module · Mounting accessories
MKRP-1	Installation kit · Mounting accessories
BSD-HSP-12	Cover kit · Mounting accessories
SMBK-8	Clip · Mounting accessories
SMBN-10	Mounting · Mounting kits for proximity sensors, other sensors
HAPG-70-B	Adapter kit · Mounting accessories
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMM-8	Positioning element · Mounting accessories
SMT-8-SL-PS-LED-24-B	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
DHAA-D-H4-12-Q11-8	Adapter kit · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
