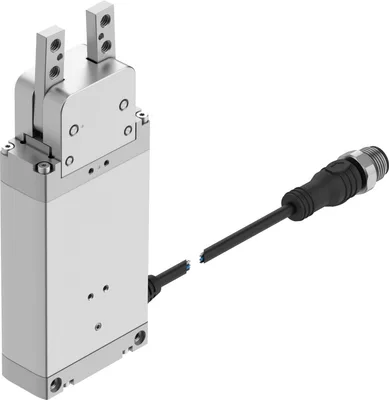

Festo HERC-16-180-A-EA
Radial gripper. Ideal for radial gripping movements of 180° and handling parts in confined spaces. Plug and work: An integrated controller with an I/O interface reduces costs and minimises the effort required for connection. Simple I/O control for the opening/closing movement. Manually adjustable gripping force in 4 steps to suit different workpieces. Resilient and precise ball guide. Wide variety of mounting and attachment options. Recommended for production plants for the manufacture of Li-ion batteries (F1A). Food grade grease NSFH1. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Size16
Max. opening angle180
Repetition accuracy, gripper0.1
Number of gripper jaws2
Drive systemElectrical
Mounting positionAny
About This Product
Radial gripper. Ideal for radial gripping movements of 180° and handling parts in confined spaces. Plug and work: An integrated controller with an I/O interface reduces costs and minimises the effort required for connection. Simple I/O control for the opening/closing movement. Manually adjustable gripping force in 4 steps to suit different workpieces. Resilient and precise ball guide. Wide variety of mounting and attachment options. Recommended for production plants for the manufacture of Li-ion batteries (F1A). Food grade grease NSFH1. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo HERC-16-180-A-EA
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size16
Max. opening angle180
Repetition accuracy, gripper0.1
Number of gripper jaws2
Drive systemElectrical
Mounting positionAny
Gripper functionRadial
DesignElectric gripper, With lead screw
Conforms to standardIEC 61010-1
Position detectionVia proximity switch
Symbol00992258
Type of motorBrushless DC motor
Operator controlsLatching switch
Ready status indicationLED
Max. cycle frequency1.1
Max. mass per external gripper finger40
Max. current consumption600
Nominal operating voltage DC24
Permissible voltage fluctuations+/-10%
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Sound pressure level60
Degree of protectionIP40
Ambient temperature5, 60
Total gripping force28
Gripping force per gripper jaw14
Mass moment of inertia2.04
Max. force on gripper jaw Fz static60
Max. torque at gripper Mx static2
Max. torque at gripper My static1
Max. torque at gripper Mz static1
Product weight253
Electrical connection 1, functionMulti-pin
Electrical connection 1, connection typeCable with plug
Electrical connection 1, designRound
Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores5
Electrical connection 1, used connections/cores4
Electrical connection 1, connection pattern00995383
Type of mountingVia female thread and centring sleeve
Note on materialsRoHS compliant
Material housingAnodised aluminium
Material gripper jawsHigh-alloy steel
