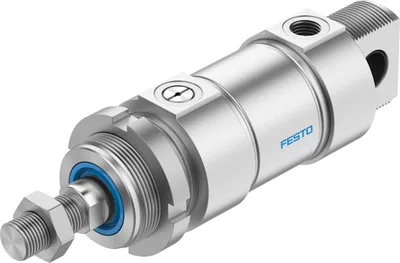

Festo ESNU-50- -
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Piston rod with female or male thread. For position sensing
Stroke1, 50
Piston diameter50 mm
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
Operating pressure0.12, 1
About This Product
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Piston rod with female or male thread. For position sensing
Festo ESNU-50- -
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke1, 50
Piston diameter50 mm
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
VariantsWeld spatter protection, Piston rod with external hexagon, Low friction for balancer applications, Additional PTFE piston guide
Operating pressure0.12, 1
Operating pressure1.2, 10
Mode of operationPushing, Single-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 120
Impact energy in end positions1
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke976, 1011
Moving mass for 0 mm stroke413
Additional moving mass per 10 mm stroke25
Basic weight for 0 mm stroke1087
Additional weight per 10 mm stroke40
Type of mountingWith accessories
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material piston rodHigh-alloy steel
Material cylinder barrelHigh-alloy stainless steel
Accessories 225
Genuine accessories that can be used with the Festo ESNU-50- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| HBN-50X2 | Foot mounting · Cylinder mountings | |
| LBN-50/63 | Clevis foot · Cylinder mountings | |
| SG-M16X1,5 | Rod clevis · Piston-rod attachments | |
| GRLZ-1/4-B | One-way flow control valve · Function fittings | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMBR-8-50 | Mounting kit · Retainer for proximity sensor | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| SGS-M16X1,5 | Rod eye · Piston-rod attachments | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| FK-M16X1,5 | Self-aligning rod coupler · Piston-rod attachments | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| GRLZ-1/4-RS-B | One-way flow control valve · Function fittings | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| FK-M10 | Self-aligning rod coupler · Piston rod attachments | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| KSG-M16X1,5 | Coupling piece · Piston rod attachments | |
| KSZ-M16X1,5 | Coupling piece · Piston rod attachments | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| SMBS-2 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| FBN-50 | Flange mounting · Cylinder mountings | |
| WBN-50/63 | Swivel mounting · Cylinder mountings | |
| SMBR-8-8/100-S6 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| SBN-50/63 | Swivel mounting · Cylinder mountings |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Related Searches
Festo ESNU-50- - priceFesto ESNU-50- - quotebuy Festo ESNU-50- -ESNU-50- - priceESNU-50- - stock availabilityFesto spare partsFesto ESNU-50- - equivalentFesto ESNU-50- - specifications
