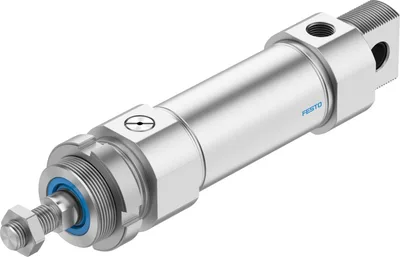

Festo ESNU-40-50-P-A
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Piston rod with female or male thread. For position sensing
Stroke50
Piston diameter40 mm
Piston rod threadM12x1.25
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
About This Product
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Piston rod with female or male thread. For position sensing
Festo ESNU-40-50-P-A
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke50
Piston diameter40 mm
Piston rod threadM12x1.25
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
Symbol00991729
Operating pressure0.12, 1
Operating pressure1.2, 10
Mode of operationPushing, Single-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions0.7
Spring return force with retracted piston rod30
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke30
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke687.6
Moving mass310
Moving mass for 0 mm stroke230
Additional moving mass per 10 mm stroke16
Product weight781
Basic weight for 0 mm stroke661
Additional weight per 10 mm stroke24
Type of mountingWith accessories
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material piston rodHigh-alloy steel
Material cylinder barrelHigh-alloy stainless steel
Accessories 229
Genuine accessories that can be used with the Festo ESNU-40-50-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QS-G1/4-8 | Push-in fitting · Fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| HBN-40X2 | Foot mounting · Cylinder mountings | |
| LBN-40 | Clevis foot · Cylinder mountings | |
| SG-M12X1,25 | Rod clevis · Piston-rod attachments | |
| GRLZ-1/4-B | One-way flow control valve · Function fittings | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMBR-8-40 | Mounting kit · Retainer for proximity sensor | |
| SGS-M12X1,25 | Rod eye · Piston-rod attachments | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| GRLZ-1/4-RS-B | One-way flow control valve · Function fittings | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| FK-M12X1,25 | Self-aligning rod coupler · Piston-rod attachments | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| CRFK-M12X1,25 | Self-aligning rod coupler · Piston rod attachments | |
| SGA-M12X1,25 | Rod clevis · Piston rod attachments | |
| MSK-M12X1,25 | Hex nut · Piston rod attachments | |
| CRSGS-M12X1,25 | Rod eye · Piston rod attachments | |
| CRSG-M12X1,25 | Rod clevis · Piston rod attachments | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| KSG-M12X1,25 | Coupling piece · Piston rod attachments | |
| KSZ-M12X1,25 | Coupling piece · Piston rod attachments | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| SMBS-2 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| AD-M12X1,25-1/4 | Adapter · Piston rod attachments | |
| AD-M12X1,25-3/8 | Adapter · Piston rod attachments | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| FBN-40 | Flange mounting · Cylinder mountings | |
| DARP-M12P-F | Self-aligning rod coupler · Stainless-steel piston-rod attachments |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Related Searches
Festo ESNU-40-50-P-A priceFesto ESNU-40-50-P-A quotebuy Festo ESNU-40-50-P-AESNU-40-50-P-A priceESNU-40-50-P-A stock availabilityFesto spare partsFesto ESNU-40-50-P-A equivalentFesto ESNU-40-50-P-A specifications
