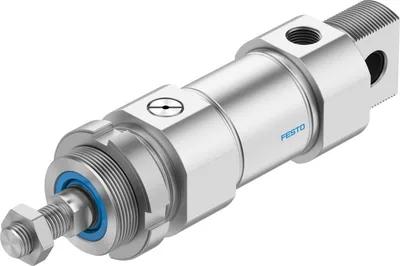

Festo ESNU-40- -
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Piston rod with female or male thread. For position sensing
Stroke1, 50
Piston diameter40 mm
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
Operating pressure0.12, 1
About This Product
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Piston rod with female or male thread. For position sensing
Festo ESNU-40- -
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke1, 50
Piston diameter40 mm
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
VariantsWeld spatter protection, Piston rod with external hexagon, Low friction for balancer applications, Additional PTFE piston guide
Operating pressure0.12, 1
Operating pressure1.2, 10
Mode of operationPushing, Single-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 120
Impact energy in end positions0.7
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke628, 658
Moving mass for 0 mm stroke230
Additional moving mass per 10 mm stroke16
Basic weight for 0 mm stroke661
Additional weight per 10 mm stroke24
Type of mountingWith accessories
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material piston rodHigh-alloy steel
Material cylinder barrelHigh-alloy stainless steel
Accessories 224
Genuine accessories that can be used with the Festo ESNU-40- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SG-M12X1,25 | Rod clevis · Piston-rod attachments | |
| GRLZ-1/4-B | One-way flow control valve · Function fittings | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| HBN-40X2 | Foot mounting · Cylinder mountings | |
| LBN-40 | Clevis foot · Cylinder mountings | |
| SGS-M12X1,25 | Rod eye · Piston-rod attachments | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| FK-M12X1,25 | Self-aligning rod coupler · Piston-rod attachments | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| GRLZ-1/4-RS-B | One-way flow control valve · Function fittings | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| CRFK-M12X1,25 | Self-aligning rod coupler · Piston rod attachments | |
| SGA-M12X1,25 | Rod clevis · Piston rod attachments | |
| MSK-M12X1,25 | Hex nut · Piston rod attachments | |
| CRSGS-M12X1,25 | Rod eye · Piston rod attachments | |
| CRSG-M12X1,25 | Rod clevis · Piston rod attachments | |
| FK-M8 | Self-aligning rod coupler · Piston rod attachments | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| KSG-M12X1,25 | Coupling piece · Piston rod attachments | |
| KSZ-M12X1,25 | Coupling piece · Piston rod attachments | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| SMBS-2 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| AD-M12X1,25-1/4 | Adapter · Piston rod attachments | |
| AD-M12X1,25-3/8 | Adapter · Piston rod attachments | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| SMBR-8-40 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| FBN-40 | Flange mounting · Cylinder mountings | |
| WBN-40 | Swivel mounting · Cylinder mountings | |
| SMBR-8-8/100-S6 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| SBN-40 | Swivel mounting · Cylinder mountings |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Related Searches
Festo ESNU-40- - priceFesto ESNU-40- - quotebuy Festo ESNU-40- -ESNU-40- - priceESNU-40- - stock availabilityFesto spare partsFesto ESNU-40- - equivalentFesto ESNU-40- - specifications
