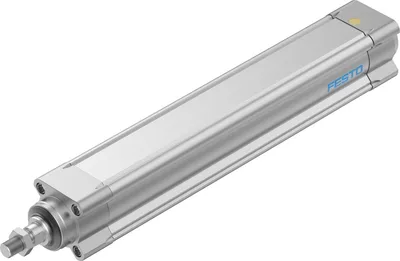

Festo ESBF-BS-40-200-5P

Photo may not represent actual item. Refer to name and product specs for all details.

Festo ESBF-BS-40-200-5P

Electric cylinder. Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50). Ball screw: with three spindle pitches for selecting the optimal force-speed ratio. Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension. Axial or parallel motor mounting. 68 types in stock with short delivery times and modular products for custom variants. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # ESBF-BS-40-200-5PSKU # YLSY0Y1VZMK9SC
Working stroke200
Size40
Stroke200
Piston rod threadM12x1.25
Reversing backlash theoretical30
Spindle diameter16
Share
Have questions?Chat on WhatsApp

About This Product

Electric cylinder. Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50). Ball screw: with three spindle pitches for selecting the optimal force-speed ratio. Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension. Axial or parallel motor mounting. 68 types in stock with short delivery times and modular products for custom variants. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

Festo ESBF-BS-40-200-5P

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Working stroke200
Size40
Stroke200
Piston rod threadM12x1.25
Reversing backlash theoretical30
Spindle diameter16
Spindle pitch5
Torsional backlash at piston rod +/-0.2
Based on standardISO 15552
Mounting positionAny
Piston-rod endMale thread
Type of motorStepper motor, Servo motor
Position detectionVia proximity switch
DesignElectric cylinder with ball screw
Spindle typeBall screw
Symbol00991941
Protection against torque/guideWith plain-bearing guide
Max. acceleration5
Max. rotational speed4800
Max. speed0.42
Repetition accuracy±0.01 mm
Duty cycle100%
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-20, 60
Suitable for use with foodSee supplementary material information
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature0, 60
Max. drive torque3
Max. radial force at drive shaft130
Max. feed force Fx3000
Frictional torque independent of load0.2
Reference value effective load, horizontal300
Reference value effective load, vertical300
Mass moment of inertia JH per metre of stroke0.4601
Mass moment of inertia JL per kg of working load0.0063
Mass moment of inertia JO0.0504
Maintenance intervalLifetime lubrication
Moving mass for 0 mm stroke467
Additional moving mass per 10 mm stroke26
Basic weight for 0 mm stroke1237
Additional weight per 10 mm stroke47
Type of mountingWith female thread, Or accessories
Interface code, actuatorD40
Note on materialsRoHS compliant
Material coverWrought aluminium alloy, smooth anodised
Material piston rodHigh-alloy stainless steel
Material screwsGalvanised steel
Material ball screw nutBearing steel
Material spindleBearing steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 210

Genuine accessories that can be used with the Festo ESBF-BS-40-200-5P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
SGS-M12X1,25Rod eye · Mounting accessories
EAHF-V2-32/40-PProfile mounting · Mounting accessories
SMT-8M-A-PS-24V-E-0,3-M8DProximity sensor · Position sensing
SMT-8M-A-NS-24V-E-0,3-M8DProximity sensor · Position sensing
SMT-8M-A-PO-24V-E-7,5-OEProximity sensor · Position sensing
SMB-8-FENG-32/40Mounting kit · Position sensing
SMT-8M-A-NO-24V-E-7,5-OEProximity sensor · Position sensing
EMMT-AS-60-Servo motor · Motors
EMMT-ST-57-M-RSStepper motor · Motors
NEBA-M8G3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3Connecting cable · Connecting cables
LBG-40Clevis foot · Mounting accessories
NEBA-M8W3-U-2.5-N-LE3Connecting cable · Connecting cables
SNCS-40Swivel flange · Mounting accessories
NEBA-M8W3-U-5-N-LE3Connecting cable · Connecting cables
EAMM-A-D40-57AAxial kit · Mounting accessories
NEBA-M8G3-U-2.5-N-M8G3Connecting cable · Connecting cables
EAMM-U-60-D40-57A-91Parallel kit · Mounting accessories
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
EAMM-U-70-D40-60P-96Parallel kit · Mounting accessories
SG-M12X1,25Rod clevis · Piston rod attachments
CRSG-M12X1,25Rod clevis · Stainless-steel piston-rod attachments
KSG-M12X1,25Coupling piece · Piston rod attachments
KSZ-M12X1,25Coupling piece · Piston rod attachments
QSH-16-12Push-in sleeve · Push-in fittings
HNC-40Foot mounting · Cylinder mountings
SNC-40Swivel flange · Cylinder mountings
SNCB-40Swivel flange · Cylinder mountings
SNCL-40Swivel flange · Cylinder mountings
ZNCF-40Trunnion flange · Cylinder mountings
CRHNC-40Foot mounting · Cylinder mountings
SNCB-40-R3Swivel flange · Cylinder mountings
QS-G1/4-10Push-in fitting · Push-in fittings
QS-G1/4-12Push-in fitting · Push-in fittings
CRSGS-M12X1,25Rod eye · Stainless-steel piston-rod attachments
CRSMB-8-32/100Mounting kit · Mounting kits for proximity sensors, other sensors
EAMF-A-44A/B-55AMotor flange · Mounting accessories
EAMF-A-44A/B-70AMotor flange · Mounting accessories
EAMF-A-44A/B-57AMotor flange · Mounting accessories
EAMF-A-44A/B-87AMotor flange · Mounting accessories
EAMM-A-D40-55AAxial kit · Mounting accessories
EAMC-30-32-6.35-8Coupling · Mounting accessories
EAMC-30-32-8-8Coupling · Mounting accessories
EAMC-30-32-8-9Coupling · Mounting accessories
EMGA-40-P-G3-SST-42Gear unit · Mounting accessories
EMGA-40-P-G5-SST-42Gear unit · Mounting accessories
EMGA-60-P-G3-SST-57Gear unit · Mounting accessories
EMGA-60-P-G5-SST-57Gear unit · Mounting accessories
EAMM-A-D40-70AAxial kit · Mounting accessories
EAMM-A-D40-87AAxial kit · Mounting accessories
EAMF-A-44A/B-40GMotor flange · Mounting accessories
EAMC-30-32-8-11Coupling · Mounting accessories
EAMK-A-D32-44A/CCoupling housing · Mounting accessories
EAMK-A-D40-44A/CCoupling housing · Mounting accessories
EAMC-30-32-8-10Coupling · Mounting accessories
EAMC-30-32-8-14Coupling · Mounting accessories
SMT-8M-A-PS-24V-E-2,5-OEProximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OEProximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-5,0-OE-EX2Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M12-EX2Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M8D-EX2Proximity sensor · Cylinder sensors for direct mounting
EMMT-AS-80-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RSServo motor · Electrical accessories
EAMM-U-60-D40-55A-91-S1Parallel kit · Mounting accessories
EAMM-U-60-D40-57A-91-S1Parallel kit · Mounting accessories
EAMM-U-86-D40-70A-102Parallel kit · Mounting accessories
EAMM-U-86-D40-70A-102-S1Parallel kit · Mounting accessories
EAMM-U-86-D40-87A-102Parallel kit · Mounting accessories
EAMM-U-86-D40-87A-102-S1Parallel kit · Mounting accessories
EAMM-A-D40-55A-S1Axial kit · Mounting accessories
EAMM-A-D40-57A-S1Axial kit · Mounting accessories
EAMM-A-D40-70A-S1Axial kit · Mounting accessories
EAMM-A-D40-87A-S1Axial kit · Mounting accessories
EAMM-U-60-D40-40G-91-S1Parallel kit · Mounting accessories
EAMM-A-D40-60HAxial kit · Mounting accessories
EAMM-U-60-D40-40G-91Parallel kit · Mounting accessories
EAMM-U-86-D40-60H-102-S1Parallel kit · Mounting accessories
EAMM-U-86-D40-60G-102-S1Parallel kit · Mounting accessories
EAMM-U-86-D40-60G-102Parallel kit · Mounting accessories
EAMM-U-86-D40-60H-102Parallel kit · Mounting accessories
SAMH-N8-SR-50Sensor rail · Mounting kits for proximity sensors, other sensors
SAMH-N8-SR-100Sensor rail · Mounting kits for proximity sensors, other sensors
DAMT-V1-40-ATrunnion mounting kit · Cylinder mountings
EAMM-A-D40-40G-G2Axial kit · Mounting accessories
EAMM-A-D40-40G-S1Axial kit · Mounting accessories
EAMM-A-D40-60GAxial kit · Mounting accessories
EAMM-A-D40-60H-S1Axial kit · Mounting accessories
EAMM-A-D40-60G-S1Axial kit · Mounting accessories
EMGA-40-P-G3-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G5-EAS-40Gear unit · Mounting accessories
EMGA-60-P-G3-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G5-EAS-60Gear unit · Mounting accessories
CRFK-M12X1,25Self-aligning rod coupler · Stainless-steel piston-rod attachments
EAMM-U-70-D40-60P-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D40-60G-96Parallel kit · Mounting accessories
EAMM-U-70-D40-60G-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D40-60H-96Parallel kit · Mounting accessories
EAMM-U-70-D40-60H-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D40-70A-96Parallel kit · Mounting accessories
EAMM-U-70-D40-70A-96-S1Parallel kit · Mounting accessories
EAMM-U-86-D40-80P-102Parallel kit · Mounting accessories
EAMM-U-86-D40-80P-102-S1Parallel kit · Mounting accessories
EMMT-AS-80-Servo motor · Electrical accessories
EMMT-AS-60-S-LS-RSServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMServo motor · Electrical accessories
EMMT-AS-60-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RSServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMServo motor · Electrical accessories
EMMT-AS-80-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMBServo motor · Electrical accessories
NEBA-M12G5-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3 Connecting cable · Connecting cables
EMGA-40-A-G3-40PGear unit · Mounting accessories
EMGA-40-A-G5-40PGear unit · Mounting accessories
EAMM-A-D40-58AAAxial kit · Mounting accessories
EAMM-A-D40-60AAAxial kit · Mounting accessories
EAMM-A-D40-70AAAxial kit · Mounting accessories
EAMM-A-D40-50GAAxial kit · Mounting accessories
EAMM-A-D40-60RAAxial kit · Mounting accessories
EAMM-A-D40-60RAxial kit · Mounting accessories
EAMM-U-86-D40-80PB-102Parallel kit · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OEProximity sensor · Cylinder sensors for direct mounting
EMGA-40-P-G8-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G12-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G20-EAS-40Gear unit · Mounting accessories
EMGA-40-A-G8-40PGear unit · Mounting accessories
EMGA-40-A-G12-40PGear unit · Mounting accessories
EMGA-40-A-G20-40PGear unit · Mounting accessories
EMGA-60-P-G8-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G12-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G20-EAS-60Gear unit · Mounting accessories
EMGA-40-P-G8-SST-42Gear unit · Mounting accessories
EMGA-40-P-G12-SST-42Gear unit · Mounting accessories
EMGA-60-P-G8-SST-57Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57Gear unit · Mounting accessories
EMMT-AS-60-S-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMY Servo motor · Electrical accessories
EMMT-AS-80-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYBServo motor · Electrical accessories
EAMM-U-60-D40-60P-61Parallel kit · Mounting accessories
EMMT-AS-80-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYBServo motor · Electrical accessories
EAMM-A-D40-60P-G2Axial kit · Mounting accessories
EAMM-A-D40-60P-S1-G2Axial kit · Mounting accessories

Related Products

YXCF-1
Festo YXCF-1
View Details

Festo

YXCF-1

MFR #YXCF-1

SKU #YLSBOLBVXXHTEQR

YXCF-2
Festo YXCF-2
View Details

Festo

YXCF-2

MFR #YXCF-2

SKU #YLSL6U6NTXCKHGD

YXCF-3
Festo YXCF-3
View Details

Festo

YXCF-3

MFR #YXCF-3

SKU #YLSZVSBYGKJ08DU

YXCF-4
Festo YXCF-4
View Details

Festo

YXCF-4

MFR #YXCF-4

SKU #YLSIOSKDCAW31TC

YXCF-1-B
Festo YXCF-1-B
View Details

Festo

YXCF-1-B

MFR #YXCF-1-B

SKU #YLS8M1FM2JHSBU

YXCF-2-B
Festo YXCF-2-B
View Details

Festo

YXCF-2-B

MFR #YXCF-2-B

SKU #YLSAJENB5OIQWGN

YXCL-1-D
Festo YXCL-1-D
View Details

Festo

YXCL-1-D

MFR #YXCL-1-D

SKU #YLS74NKJF7W65BZ

YXCL-2-D
Festo YXCL-2-D
View Details

Festo

YXCL-2-D

MFR #YXCL-2-D

SKU #YLS1RJGPTBKRKVF

YXCL-1
Festo YXCL-1
View Details

Festo

YXCL-1

MFR #YXCL-1

SKU #YLSFPVVOW7GENV

YXCR-1
Festo YXCR-1
View Details

Festo

YXCR-1

MFR #YXCR-1

SKU #YLSW4HQHDBEYOQG

Featured Products

MXQ25-40B-M9NZ
SMC MXQ25-40B-M9NZ
View Details

SMC

MXQ25-40B-M9NZ

MFR #MXQ25-40B-M9NZ

SKU #YLST5TX9LNATRNS

CDJ2L16-125Z-B
SMC CDJ2L16-125Z-B
View Details

SMC

CDJ2L16-125Z-B

MFR #CDJ2L16-125Z-B

SKU #YLS5V0RW2VJJR1A

NCMC150-0600-X103US
SMC NCMC150-0600-X103US
View Details

SMC

NCMC150-0600-X103US

MFR #NCMC150-0600-X103US

SKU #YLS468HQT0B65QG

MGPM25-100Z-XC4
SMC MGPM25-100Z-XC4
View Details

SMC

MGPM25-100Z-XC4

MFR #MGPM25-100Z-XC4

SKU #YLSH71U0VZZBO5I

ZCUKQ25-50D
SMC ZCUKQ25-50D
View Details

SMC

ZCUKQ25-50D

MFR #ZCUKQ25-50D

SKU #YLSQ684QXTNN958

AR30-N02E-1Z-B
SMC AR30-N02E-1Z-B
View Details

SMC

AR30-N02E-1Z-B

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

AL30-03-8-A
SMC AL30-03-8-A
View Details

SMC

AL30-03-8-A

MFR #AL30-03-8-A

SKU #YLS6GDABZE4BN7A

MXS-AS16L
SMC MXS-AS16L
View Details

SMC

MXS-AS16L

MFR #MXS-AS16L

SKU #YLSAP0XXFGFSWY6

EH22512
Danfoss Aeroquip LLC EH22512
View Details

Danfoss Aeroquip LLC

EH22512

MFR #EH22512

SKU #YLSRZ91UGVO64DG

VQZ2121-5LO1-N3T
SMC VQZ2121-5LO1-N3T
View Details

SMC

VQZ2121-5LO1-N3T

MFR #VQZ2121-5LO1-N3T

SKU #YLSEL35MGGQ9FOL

Related Searches

Festo ESBF-BS-40-200-5P priceFesto ESBF-BS-40-200-5P quotebuy Festo ESBF-BS-40-200-5PESBF-BS-40-200-5P priceESBF-BS-40-200-5P stock availabilityFesto spare partsFesto ESBF-BS-40-200-5P equivalentFesto ESBF-BS-40-200-5P specifications
