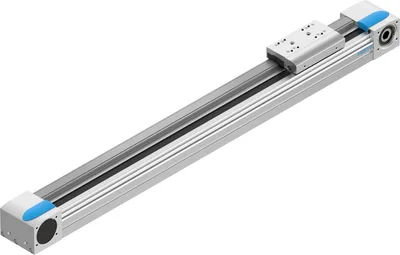

Festo EGC-80-600-TB-KF-0H-GK

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EGC-80-600-TB-KF-0H-GK

Toothed belt axis. Axis for high speeds and acceleration. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 4 sides. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # EGC-80-600-TB-KF-0H-GKSKU # YLS03F3VPG0HMI1
Effective diameter of drive pinion28.65
Working stroke600
Size80
Stroke reserve0
Toothed-belt pitch3
Mounting positionAny
Share
Have questions?Chat on WhatsApp

About This Product

Toothed belt axis. Axis for high speeds and acceleration. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 4 sides. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

Festo EGC-80-600-TB-KF-0H-GK

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion28.65
Working stroke600
Size80
Stroke reserve0
Toothed-belt pitch3
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical linear axis, With toothed belt
Type of motorStepper motor, Servo motor
Symbol00991212
Max. acceleration50
Max. speed5
Repetition accuracy±0.08 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature-10, 60
2nd moment of area Iy844000
2nd moment of area Iz1160000
Max. force Fy3050
Max. force Fz3050
Max. force Fy total axis3050
Max. force Fz total axis3050
Fy at theoretical life value of 100 km (only guide consideration)11236
Fz at theoretical life value of 100 km (only guide consideration)11236
Max. idle running transfer resistance28
Max. moment Mx36
Max. moment My97
Max. moment Mz97
Max. moment Mx total axis36
Max. moment My total axis97
Max. moment Mz total axis97
Mx at theoretical life value of 100 km (only guide consideration)133
My at theoretical life value of 100 km (only guide consideration)357
Mz at theoretical life value of 100 km (only guide consideration)357
Max. feed force Fx350
Torsional mass moment of inertia It551000
Mass moment of inertia JH per metre of stroke0.19
Mass moment of inertia JL per kg of working load2.05
Feed constant90
Reference service life5000
Material end capWrought aluminium alloy, anodised
Material profileWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material drive coverWrought aluminium alloy, anodised
Material guide slideSteel
Material guide railSteel
Material pulleysHigh-alloy stainless steel
Material slideWrought aluminium alloy, anodised
Material toothed belt clamping pieceCast stainless steel
Material toothed beltPolychloroprene or nitrile rubber (NBR) with glass cord and nylon coating

Accessories 185

Genuine accessories that can be used with the Festo EGC-80-600-TB-KF-0H-GK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
SIES-8M-NO-24V-K-7,5-OEProximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8DProximity sensor · Position sensing
SIES-8M-PO-24V-K-7,5-OEProximity sensor · Position sensing
MUE-70/80Profile mounting · Mounting accessories
SIES-8M-PO-24V-K-0,3-M8DProximity sensor · Position sensing
SF-EGC-1-80Switch lug · Position sensing
NEBA-M8W3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3Connecting cable · Connecting cables
ZBH-9-BCentring sleeve · Mounting accessories
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
EMMT-AS-80-Servo motor · Motors
EMMT-ST-87-S-RSStepper motor · Motors
GASA-MIE-CTR-12M-1 AX Industrial App · Digital services
GASA-MIE-CTR-12M-10 AX Industrial App · Digital services
GASA-MIE-CTR-12M-100 AX Industrial App · Digital services
GASA-MIE-CTR-12M-50 AX Industrial App · Digital services
SIEN-M8B-PS-K-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-LProximity sensor · Cylinder sensors for direct mounting
NST-5-M5-1Slot nut · Mounting accessories
ABP-5Slot cover · Mounting accessories
SMBK-8Clip · Mounting accessories
HMIA-E07- -Support profile · Mounting accessories
SMM-8Positioning element · Mounting accessories
EMGA-60-P-G3-SST-57Gear unit · Mounting accessories
EMGA-60-P-G5-SST-57Gear unit · Mounting accessories
SIES-8M-PS-24V-K-7,5-OEProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OEProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
KYE-80Shock absorber retainer · Mounting accessories
EAMD-32-32-11-16X20Coupling · Mounting accessories
EAMD-42-40-19-16X25Coupling · Mounting accessories
EAMK-A-L48-48ACoupling housing · Mounting accessories
EAMB-24-6-15X21-16X20Drive shaft adapter · Mounting accessories
SF-EGC-2-80Switch lug · Mounting accessories
HWS-EGC-M5Sensor bracket · Mounting accessories
HPE-80Foot mounting · Cylinder mountings
EAMF-A-48A-87AMotor flange · Mounting accessories
DHAA-D-L-25-G7-12Adapter kit · Mounting accessories
DHAM-ME-N1-CLAdapter kit · Mounting accessories
KSK-80-Connecting shaft · Mounting accessories
NPE-80Emergency buffer · Mounting accessories
ABP-5-S1Slot cover · Mounting accessories
EAHM-L2-M5-55Screw kit · Mounting accessories
DHAM-ME-N1-50-CLAdapter kit · Mounting accessories
EMMT-AS-80-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RSServo motor · Electrical accessories
NEBM-M12G8-E-5-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E-10-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E-15-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E- -S1G9-V3Encoder cable · Electrical accessories
EAHF-L5-80-PCentral support · Cylinder mountings
EMMT-AS-60-Servo motor · Electrical accessories
EMMT-AS-100-Servo motor · Electrical accessories
EMMT-AS-60-S-LS-RSServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMServo motor · Electrical accessories
EMMT-AS-60-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RSServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMServo motor · Electrical accessories
EMMT-AS-80-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RSServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMServo motor · Electrical accessories
EMMT-AS-100-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RSServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMServo motor · Electrical accessories
EMMT-AS-100-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RSServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMServo motor · Electrical accessories
EMMT-AS-100-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMBServo motor · Electrical accessories
EAMM-A-L48-40GAxial kit · Mounting accessories
NEBA-M8G3-U-10-N-LE3 Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3 Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3Connecting cable · Connecting cables
NEFM-S1G9-K-0,5-R3G8Adapter · Electrical accessories
EMGA-60-P-G8-SST-57Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57Gear unit · Mounting accessories
EMMT-AS-60-S-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMY Servo motor · Electrical accessories
EMMT-AS-80-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMServo motor · Electrical accessories
EMMT-AS-100-H-HS-RSServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYBServo motor · Electrical accessories
EAMM-A-L48-60PAxial kit · Mounting accessories
EAMM-A-L48-60G-G2Axial kit · Mounting accessories
EAMM-A-L48-87A-G2Axial kit · Mounting accessories

Related Products

YXCF-1
Festo YXCF-1
View Details

Festo

YXCF-1

MFR #YXCF-1

SKU #YLSBOLBVXXHTEQR

YXCF-2
Festo YXCF-2
View Details

Festo

YXCF-2

MFR #YXCF-2

SKU #YLSL6U6NTXCKHGD

YXCF-3
Festo YXCF-3
View Details

Festo

YXCF-3

MFR #YXCF-3

SKU #YLSZVSBYGKJ08DU

YXCF-4
Festo YXCF-4
View Details

Festo

YXCF-4

MFR #YXCF-4

SKU #YLSIOSKDCAW31TC

YXCF-1-B
Festo YXCF-1-B
View Details

Festo

YXCF-1-B

MFR #YXCF-1-B

SKU #YLS8M1FM2JHSBU

YXCF-2-B
Festo YXCF-2-B
View Details

Festo

YXCF-2-B

MFR #YXCF-2-B

SKU #YLSAJENB5OIQWGN

YXCL-1-D
Festo YXCL-1-D
View Details

Festo

YXCL-1-D

MFR #YXCL-1-D

SKU #YLS74NKJF7W65BZ

YXCL-2-D
Festo YXCL-2-D
View Details

Festo

YXCL-2-D

MFR #YXCL-2-D

SKU #YLS1RJGPTBKRKVF

YXCL-1
Festo YXCL-1
View Details

Festo

YXCL-1

MFR #YXCL-1

SKU #YLSFPVVOW7GENV

YXCR-1
Festo YXCR-1
View Details

Festo

YXCR-1

MFR #YXCR-1

SKU #YLSW4HQHDBEYOQG

Featured Products

BM3615T W/ 2-1/4" LONG SHAFT
Baldor BM3615T W/ 2-1/4" LONG SHAFT
View Details

Baldor

BM3615T W/ 2-1/4" LONG SHAFT

MFR #BM3615T W/ 2-1/4" LONG SHAFT

SKU #YLSUV0OKQIKNTRJ

AR30-N02E-1Z-B
SMC AR30-N02E-1Z-B
View Details

SMC

AR30-N02E-1Z-B

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

VQZ2121-5LO1-N3T
SMC VQZ2121-5LO1-N3T
View Details

SMC

VQZ2121-5LO1-N3T

MFR #VQZ2121-5LO1-N3T

SKU #YLSEL35MGGQ9FOL

AL30-03-8-A
SMC AL30-03-8-A
View Details

SMC

AL30-03-8-A

MFR #AL30-03-8-A

SKU #YLS6GDABZE4BN7A

VQC2101R-51
SMC VQC2101R-51
View Details

SMC

VQC2101R-51

MFR #VQC2101R-51

SKU #YLSSEY6NT0YLZ8G

MY1M20-200AH
SMC MY1M20-200AH
View Details

SMC

MY1M20-200AH

MFR #MY1M20-200AH

SKU #YLSIZ8K8N4KBPBQ

MDBB63-100Z
SMC MDBB63-100Z
View Details

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

SY5420-5DZ-01
SMC SY5420-5DZ-01
View Details

SMC

SY5420-5DZ-01

MFR #SY5420-5DZ-01

SKU #YLSQW9MERWL033X

VM8001-5
Baldor VM8001-5
View Details

Baldor

VM8001-5

MFR #VM8001-5

SKU #YLS3TOWVXWW0DHP

NCDJ2L10-300-B
SMC NCDJ2L10-300-B
View Details

SMC

NCDJ2L10-300-B

MFR #NCDJ2L10-300-B

SKU #YLSRRDWPL50RWQ2

Related Searches

Festo EGC-80-600-TB-KF-0H-GK priceFesto EGC-80-600-TB-KF-0H-GK quotebuy Festo EGC-80-600-TB-KF-0H-GKEGC-80-600-TB-KF-0H-GK priceEGC-80-600-TB-KF-0H-GK stock availabilityFesto spare partsFesto EGC-80-600-TB-KF-0H-GK equivalentFesto EGC-80-600-TB-KF-0H-GK specifications
