How can I get a price quote for FESTO DHRS-10-A?

You can request a fast quote for FESTO DHRS-10-A from Yılsa Engineering. Reference part number CEY-937FC781B57F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DHRS-10-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DHRS-10-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DHRS-10-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

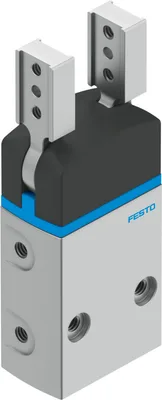

FESTO DHRS-10-A

Radial gripper. Lateral gripper jaw support for high torque loads. Self-centring. Internal fixed flow control. Max. repetition accuracy. Slotted guide. Can be used as a double- and single-acting gripper. Single-acting variant or with gripping force backup, normally closed (NC). Wide range of adaptation options on the drives

FESTOMFR # DHRS-10-ASKU # CEY-937FC781B57F

Size10

Max. replacement accuracy0.2

Max. opening angle180

Rotationally symmetrical0.2

Repetition accuracy, gripper0.1

Number of gripper jaws2

Have questions?Chat on WhatsApp

About This Product

FESTO DHRS-10-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size10

Max. replacement accuracy0.2

Max. opening angle180

Rotationally symmetrical0.2

Repetition accuracy, gripper0.1

Number of gripper jaws2

Mounting positionAny

Mode of operationDouble-acting

Gripper functionRadial

DesignForce pilot operated motion sequence

Position detectionVia Hall sensor

Symbol00991894

Operating pressure2, 8

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)35

Min. closing time at 0.6 MPa (6 bar, 87 psi)91

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical connectors and coils.

Ambient temperature5, 60

Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening21

Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi)15

Mass moment of inertia0.03

Max. force on gripper jaw Fz static30

Max. torque at gripper Mx static0.8

Max. torque at gripper My static0.8

Max. torque at gripper Mz static0.8

Product weight44

Type of mountingEither:, Via female thread and centring sleeve, Via through-hole and centring sleeve

Pneumatic connectionM3

Note on materialsRoHS compliant

Material cover capProcess automation

Material housingHard anodised wrought aluminium alloy

Material gripper jawsHigh-alloy steel

Accessories 37

Genuine accessories that can be used with the FESTO DHRS-10-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
SMH-S1-HGR10	Position sensor · Proximity sensors
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
ZBH-5-B	Centring sleeve · Mounting accessories
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
HAPS-2	Adapter kit · Mounting accessories
HAPG-SD2-12	Adapter kit · Mounting accessories
HAPG-34	Adapter kit · Mounting accessories
HAPG-37-S1	Adapter kit · Mounting accessories
HAPG-60-S1	Adapter kit · Mounting accessories
HMVA-DLA18/25	Actuator adapter kit · Mounting accessories
HMVA-DLA40	Actuator adapter kit · Mounting accessories
HAPG-70-B	Adapter kit · Mounting accessories
HAPG-71-B	Adapter kit · Mounting accessories
HMSV-54	Adapter kit · Mounting accessories
HMSV-70	Adapter kit · Mounting accessories
ZBH-5-M4	Centring sleeve · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
