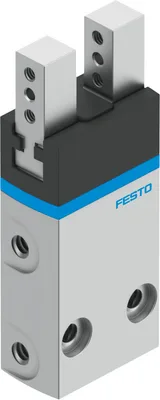

FESTO DHPS-6-A

Parallel gripper. Sturdy and precise T-slot guidance of the gripper jaws. High gripping force and compact size. Max. repetition accuracy. Can be used as a double- and single-acting gripper. Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC). Suitable for external and internal gripping. Wide range of adaptation options on the drives

FESTOMFR # DHPS-6-ASKU # CEY-937FC781B7A6

Size6

Stroke per gripper jaws2

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay1

Max. gripper jaw backlash Sz0.02

Rotationally symmetrical0.2

Have questions?Chat on WhatsApp

About This Product

FESTO DHPS-6-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

Stroke per gripper jaws2

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay1

Max. gripper jaw backlash Sz0.02

Rotationally symmetrical0.2

Repetition accuracy, gripper0.02

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

Gripper functionParallel

Gripper force back-upNone

DesignLever, Force pilot operated motion sequence

GuidePlain-bearing guide

Position detectionVia Hall sensor

Symbol00991894

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)8

Min. closing time at 0.6 MPa (6 bar, 87 psi)17

Max. mass per external gripper finger10

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical connectors and coils.

Ambient temperature5, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)30

Total gripping force, closing, 0.6MPa (6bar, 87 psi)25

Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)15

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)13.5

Mass moment of inertia0.008

Max. force on gripper jaw Fz static10

Max. torque at gripper Mx static0.5

Max. torque at gripper My static0.5

Max. torque at gripper Mz static0.5

Lubrication interval for guide components10

Product weight19

Type of mountingEither:, Via female thread and centring sleeve, Via through-hole and centring sleeve

Pneumatic connectionM3

Note on materialsRoHS compliant

Material cover capProcess automation

Material housingHard anodised wrought aluminium alloy

Material gripper jawsHigh-alloy stainless steel

Accessories 21

Genuine accessories that can be used with the FESTO DHPS-6-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
ZBH-5-B	Centring sleeve · Mounting accessories
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
