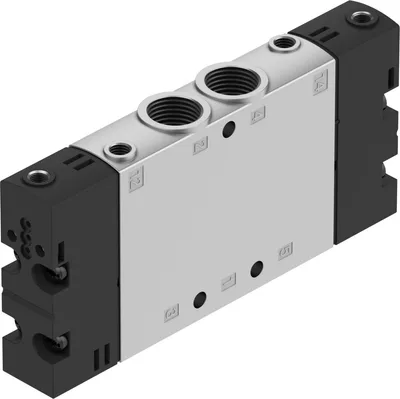

FESTO CPE18-P1-5JS-1/4
Basic valve. Universal individual valve. High flow rate relative to its size
Valve function5/2-way, double solenoid
Type of actuationVia pilot interface to ISO 15218
Construction width18
pneumatic working portG1/4
Operating pressure-0.09, 1
Operating pressure-0.9, 10
About This Product
Basic valve. Universal individual valve. High flow rate relative to its size
FESTO CPE18-P1-5JS-1/4
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/2-way, double solenoid
Type of actuationVia pilot interface to ISO 15218
Construction width18
Standard nominal flow rate (standardised to DIN 1343)1500
pneumatic working portG1/4
Operating pressure-0.09, 1
Operating pressure-0.9, 10
DesignPiston gate valve
Approvalc UL us - Recognised (Oil)
Maritime classificationSee certificate
CE mark (see declaration of conformity)To EU Low Voltage Directive
UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
Certificate issuing authorityDNV-TAA000032X, UL MH19482
Nominal size8
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
Symbol00991016
Valve position codeLabel holder
lapOverlap
Pilot pressure0.2, 1
Pilot pressure2, 10
Switching time reversal15
Duty cycle100%
Max. positive test pulse with 0 signal3300
Max. negative test pulse with 1 signal3100
Permissible voltage fluctuations-15% / +10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5, 50
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5, 50
Product weight190
Type of mountingWith through-hole
Pilot exhaust port 82M5
Pilot exhaust port 84M5
Pilot air port 12M5
Pilot air port 14M5
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Accessories 211
Genuine accessories that can be used with the FESTO CPE18-P1-5JS-1/4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| IBS-6X10 | Inscription label · General accessories | |
| AHB-MEB | Manual override · General accessories | |
| UC-1/4 | Silencer · Silencer | |
| AMTE-M-H-M5 | Silencer · Silencer | |
| PUN-H-10X1,5-NT | Plastic tubing · Tubes | |
| PUN-H-10X1,5-BL | Plastic tubing · Tubes | |
| PUN-H-10X1,5-SW | Plastic tubing · Tubes | |
| PUN-H-10X1,5-TBL | Plastic tubing · Tubes | |
| QS-G1/4-10-I | Push-in fitting · Fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Fittings | |
| CN-1/4-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/4-PK-6 | Barbed fitting · Barbed fittings | |
| TCN-1/4-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/4-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCN-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| MSSD-EB | Plug socket · Electrical accessories | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| CPE18-PRSG-2 | Manifold block · Mounting accessories | |
| CPE18-PRSE-2 | Manifold block · Connection accessories | |
| UC-M5 | Silencer · Silencer | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| CPE18-PRSGO-3 | Manifold block · Mounting accessories | |
| CPE18-PRSG-3 | Manifold block · Mounting accessories | |
| CPE18-PRSGO-2 | Manifold block · Mounting accessories | |
| CPE18-PRSEO-2 | Manifold block · Connection accessories | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| UC-M5-50 | Silencer · Silencer | |
| UC-1/4-20 | Silencer · Silencer | |
| MSSD-EB-M12 | Socket · Electrical accessories | |
| CPE18-PRS-3/8-2 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-3 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-4 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-5 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-6 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-7 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-8 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-9 | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-10 | Manifold block · Mounting accessories | |
| VSCS-B-M32-MH-WA-1C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-5C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-1AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-2AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-3AC1 | Solenoid valve · Valves | |
| CPE18-PRS-3/8-2-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-3-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-4-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-5-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-6-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-7-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-8-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-9-NPT | Manifold block · Mounting accessories | |
| CPE18-PRS-3/8-10-NPT | Manifold block · Mounting accessories | |
| VSCS-B-M32-MD-WA-1C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-5C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-1AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-2AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-3AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-1R3 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-1R3 | Solenoid valve · Valves |
Related Products
View Details
Festo
CPE18-PRS-3/8-2-NPT
MFR #CPE18-PRS-3/8-2-NPT
SKU #YLS9ECNI697VKPL
View Details
Festo
CPE14-3/2-PRS-3/8-3-NPT
MFR #CPE14-3/2-PRS-3/8-3-NPT
SKU #YLSATWTDN168NX
View Details
Festo
CPE18-3/2-PRS-3/8-9-NPT
MFR #CPE18-3/2-PRS-3/8-9-NPT
SKU #YLSZ8TUKWAFHZYL
View Details
Festo
CPE14-PRS-3/8-9-NPT
MFR #CPE14-PRS-3/8-9-NPT
SKU #YLSXZJDMPUDQWBB
View Details
Festo
CPE10-3/2-PRS-1/4-4-NPT
MFR #CPE10-3/2-PRS-1/4-4-NPT
SKU #YLSHUQKABUPTWYK
View Details
Festo
CPE10-PRS-1/4-8-NPT
MFR #CPE10-PRS-1/4-8-NPT
SKU #YLS5YTZFP2AO2K2
View Details
Festo
CPE10-3/2-PRS-1/4-3-NPT
MFR #CPE10-3/2-PRS-1/4-3-NPT
SKU #YLSJHUJQI6NT0H
View Details
Festo
CPE14-PRS-3/8-5-NPT
MFR #CPE14-PRS-3/8-5-NPT
SKU #YLSBJWICHJG4E9
View Details
Festo
CPE18-PRS-3/8-7-NPT
MFR #CPE18-PRS-3/8-7-NPT
SKU #YLSMSGFSUUTVAQ
Featured Products
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Related Searches
FESTO CPE18-P1-5JS-1/4 priceFESTO CPE18-P1-5JS-1/4 quotebuy FESTO CPE18-P1-5JS-1/4CPE18-P1-5JS-1/4 priceCPE18-P1-5JS-1/4 stock availabilityFESTO spare partsFESTO CPE18-P1-5JS-1/4 equivalentFESTO CPE18-P1-5JS-1/4 specifications
