How can I get a price quote for FESTO MSSD-EB-M12?

You can request a fast quote for FESTO MSSD-EB-M12 from Yılsa Engineering. Reference part number CEY-937FC781F5F1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MSSD-EB-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MSSD-EB-M12 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MSSD-EB-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

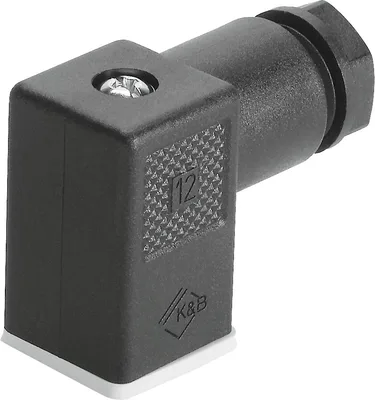

FESTO MSSD-EB-M12

Socket. For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils. For connecting individual valves. Available with LED display

FESTOMFR # MSSD-EB-M12SKU # CEY-937FC781F5F1

Conforms to standardEN 175301-803

Frequency of connection50

Cable outletAngled

Note on cable outletCan be rotated 90°

Mounting positionAny

Product weight11

Have questions?Chat on WhatsApp

About This Product

Socket. For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils. For connecting individual valves. Available with LED display

FESTO MSSD-EB-M12

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 175301-803

Frequency of connection50

Cable outletAngled

Note on cable outletCan be rotated 90°

Mounting positionAny

Product weight11

Electrical connection 1Socket, to EN 175301-803, type C

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, connector systemPlug pattern type C to EN 175301-803

Electrical connection 1, number of connections/cores3

Electrical connection 1, used connections/cores3

Electrical connection 1, type of mountingOn solenoid valve via M2.5 central screw

Electrical connection 1, connection pattern00995650

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemScrew terminal

Electrical connection 2, number of connections/cores3

Electrical connection 2, used connections/cores3

Operational voltage range DC0, 300

Operational voltage range AC0, 250

Current rating at 40° C6

Immunity to surge4

Protective conductor connectionAvailable

Cable fittingPg7

Cable diameter4, 6

Connection cross section0.5, 1.5

Degree of protectionIP67

Note on degree of protectionIn mounted state

Ambient temperature-40, 125

CE mark (see declaration of conformity)To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC1 - Low corrosion stress

Material housingReinforced PA6, Reinforced PA66

Housing colourBlack

Material screw-type lockGalvanised steel

Material screwsGalvanised steel

Material sealsHNBR

Material electrical contactBrass, nickel-plated, Silver-plated

Accessories 2

Genuine accessories that can be used with the FESTO MSSD-EB-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
