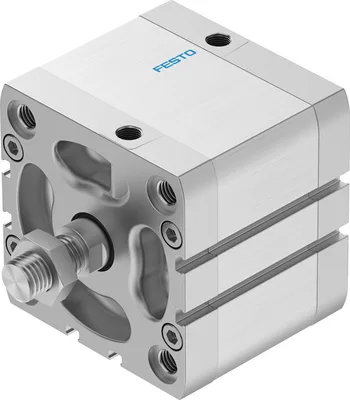

FESTO ADN-80-30-A-P-A
Compact cylinder. ISO 21287. Up to 50% less installation space than comparable standards-based cylinders to ISO 15552. Good running performance and long service life. Wide range of variants for customised applications. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
Stroke30
Piston diameter80 mm
Piston rod threadM16x1.5
Mounting positionAny
Conforms to standardISO 21287
Piston-rod endMale thread
About This Product
Compact cylinder. ISO 21287. Up to 50% less installation space than comparable standards-based cylinders to ISO 15552. Good running performance and long service life. Wide range of variants for customised applications. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
FESTO ADN-80-30-A-P-A
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke30
Piston diameter80 mm
Piston rod threadM16x1.5
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
Conforms to standardISO 21287
Piston-rod endMale thread
Position detectionVia proximity switch
Symbol00991217
VariantsPiston rod at one end
Operating pressure0.06, 1
Operating pressure0.6, 10
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions1.8
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2827
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016
Moving mass506
Product weight1380
Type of mountingWith through-hole, With female thread, With accessories
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material collar screwsSteel
Material coverCoated die-cast aluminium
Material sealsTPE-U(PUR)
Material piston rodHigh-alloy steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy
