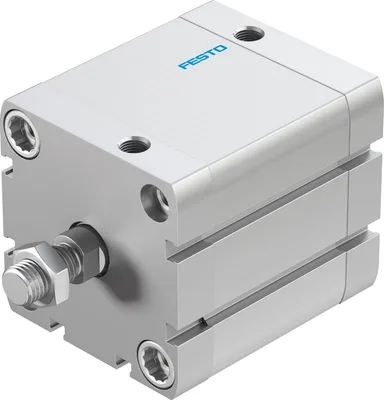

FESTO ADN-63-40-A-P-A
Compact cylinder. ISO 21287. Up to 50% less installation space than comparable standards-based cylinders to ISO 15552. Good running performance and long service life. Wide range of variants for customised applications. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
Stroke40
Piston diameter63 mm
Piston rod threadM12x1.25
Mounting positionAny
Conforms to standardISO 21287
Piston-rod endMale thread
About This Product
Compact cylinder. ISO 21287. Up to 50% less installation space than comparable standards-based cylinders to ISO 15552. Good running performance and long service life. Wide range of variants for customised applications. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
FESTO ADN-63-40-A-P-A
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke40
Piston diameter63 mm
Piston rod threadM12x1.25
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
Conforms to standardISO 21287
Piston-rod endMale thread
Position detectionVia proximity switch
Symbol00991217
VariantsPiston rod at one end
Operating pressure0.06, 1
Operating pressure0.6, 10
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions1.3
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1750
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870
Moving mass287
Product weight993
Type of mountingWith through-hole, With female thread, With accessories
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material collar screwsSteel
Material coverAnodised wrought aluminium alloy
Material sealsTPE-U(PUR)
Material piston rodHigh-alloy steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy
Accessories 178
Genuine accessories that can be used with the FESTO ADN-63-40-A-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SG-M12X1,25 | Rod clevis · Piston-rod attachments | |
| SGS-M12X1,25 | Rod eye · Piston-rod attachments | |
| FNC-63 | Flange mounting · Mounting accessories | |
| HNA-63 | Foot mounting · Mounting accessories | |
| FK-M12X1,25 | Self-aligning rod coupler · Piston-rod attachments | |
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| QS-G1/8-6 | Push-in fitting · Fittings | |
| QS-G1/8-6-I | Push-in fitting · Fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Fittings | |
| GRLA-1/8-QS-6-D | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6 | One-way flow control valve · Function fittings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| VFOE-LE-T-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q8 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q4-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q8-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-F1A | One-way flow control valve · Function fittings | |
| CK-1/8-PK-4 | Quick connector · Quick connectors | |
| CK-1/8-PK-6 | Quick connector · Quick connectors | |
| CK-1/8-PK-3 | Quick connector · Quick connectors | |
| LCK-1/8-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-3 | T-quick connector · Quick connectors | |
| LCK-1/8-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4 | T-quick connector · Quick connectors | |
| TCK-1/8-PK-6 | T-quick connector · Quick connectors | |
| SEU-1/8 | Quick exhaust valve · Function fittings | |
| CK-1/8-PK-3-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-6-KU | Quick connector · Quick connectors | |
| LCK-1/8-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4-KU | T-quick connector · Quick connectors | |
| TCK-1/8-PK-6-KU | T-quick connector · Quick connectors | |
| GRU-1/8-B | Flow control/silencer · Function fittings | |
| SE-1/8-B | Quick exhaust valve · Function fittings | |
| CN-1/8-PK-3 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-6 | Barbed fitting · Barbed fittings | |
| LCN-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| TCN-1/8-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-6 | Barbed T-fitting · Barbed fittings | |
| CRSG-M12X1,25 | Rod clevis · Stainless-steel piston-rod attachments | |
| KSG-M12X1,25 | Coupling piece · Piston rod attachments | |
| LCNH-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSZ-M12X1,25 | Coupling piece · Piston rod attachments | |
| QS-G1/8-10-I | Push-in fitting · Push-in fittings | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| ABP-5-S | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| AD-M12X1,25-1/4 | Adapter · Piston rod attachments | |
| AD-M12X1,25-3/8 | Adapter · Piston rod attachments | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRZNG-63 | Trunnion flange · Cylinder mountings | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SNCB-63 | Swivel flange · Cylinder mountings | |
| SNCS-63 | Swivel flange · Cylinder mountings | |
| SNCL-63 | Swivel flange · Cylinder mountings | |
| ZNCF-63 | Trunnion flange · Cylinder mountings | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SNCB-63-R3 | Swivel flange · Cylinder mountings | |
| SMPO-8E | Proximity sensor · Cylinder sensors for direct mounting | |
| QS-G1/8-4 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8 | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| MSK-M12X1,25 | Hex nut · Piston rod attachments | |
| GRLA-1/8-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-3-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-4-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-6-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-8-D | One-way flow control valve · Function fittings | |
| CRSGS-M12X1,25 | Rod eye · Stainless-steel piston-rod attachments | |
| GRLA-1/8-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-RS-D | One-way flow control valve · Function fittings | |
| HGL-1/8-B | Piloted check valve · Function fittings | |
| HGL-1/8-QS-4 | Piloted check valve · Function fittings | |
| HGL-1/8-QS-6 | Piloted check valve · Function fittings | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-1/8-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-MF-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-MF-D | One-way flow control valve · Function fittings | |
| HNA-63-R3 | Foot mounting · Cylinder mountings | |
| DPNA-63 | Multi-position kit · Cylinder mountings | |
| SMBN-10 | Mounting · Mounting kits for proximity sensors, other sensors | |
| HGL-1/8-1/8-B | Piloted check valve · Function fittings | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VBQF-U-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G18-Q6 | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-Q6 | Quick exhaust valve · Function fittings | |
| SMT-8G-PS-24V-E-2,5Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-PS-24V-E-0,3Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8-SL-PS-LED-24-B | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SAMH-S-N8-S-MK | Mounting kit · Mounting accessories | |
| SAMH-S-N8-L-MK | Mounting kit · Mounting accessories | |
| VFOH-LE-A-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q6 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q8 | One-way flow control valve · Function fittings | |
| CRFK-M12X1,25 | Self-aligning rod coupler · Stainless-steel piston-rod attachments | |
| VFOF-LE-BAH-G18-Q6 | One-way flow control valve · Function fittings | |
| NPFC-L-2G18-F | Elbow fitting · Other connectors | |
| NPFC-L-R18-G18-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R18-M | Elbow fitting · Other connectors | |
| NPFC-Y-R18-2G18-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G18-F | T-fitting · Other connectors | |
| NPFC-T-R18-2G18-MFF | T-fitting · Other connectors | |
| NPFC-T-2G18-R18-FMF | T-fitting · Other connectors | |
| NPFC-T-G18-2R18-FMM | T-fitting · Other connectors | |
| NPFC-T-2R18-G18-MMF | T-fitting · Other connectors | |
| NPFC-D-M7-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M | Double nipple · Other connectors | |
| NPFC-D-2R18-M | Double nipple · Other connectors | |
| NPFC-S-2G18-F | Coupling sleeve · Other connectors | |
| NPFC-R-G38-G18-F | Reducing coupling · Other connectors | |
| NPFC-E1-2G18-FM | Extension · Other connectors | |
| NPFC-E2-2G18-FM | Extension · Other connectors | |
| NPFC-E3-2G18-FM | Extension · Other connectors | |
| NPFC-E4-2G18-FM | Extension · Other connectors | |
| NPFC-R-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G14-G18-FM | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SMT-8G-NS-24V-E-0,3Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-NS-24V-E-2,5Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-D-M5-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G14-G18-F | Reducing coupling · Other connectors | |
| NPFC-R-G12-G18-F | Reducing coupling · Other connectors | |
| NPFC-R-G14-G18-MF-P100 | Reducing nipple · Other connectors | |
| NPFC-H-G18-F | Bulkhead fitting · Other connectors | |
| NPFC-D-2G18-M-F1A | Double nipple · Other connectors | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-G18-G18-M | Double nipple · Other connectors | |
| NPFC-DS-G18-G14-M | Double nipple · Other connectors | |
| NPFC-RS-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Other connectors | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| DARP-M12P-F | Self-aligning rod coupler · Stainless-steel piston-rod attachments |
Related Products
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
View Details
Festo
DDPC-...-80- -
MFR #DDPC-...-80- -
SKU #YLS4SHYOTSRTIP
View Details
Festo
AEVUZ-12- -P-A
MFR #AEVUZ-12- -P-A
SKU #YLSCKLUCYWUPXLU
View Details
Festo
AEVUZ-12- -A-P-A
MFR #AEVUZ-12- -A-P-A
SKU #YLSTV5C7OJHR5U
View Details
Festo
AEVU-12- -P-A
MFR #AEVU-12- -P-A
SKU #YLS3TZ4SLKMP3F9
View Details
Festo
AEVU-12- -A-P-A
MFR #AEVU-12- -A-P-A
SKU #YLS3HRQPDAIT8C
View Details
Festo
SLG-8- -
MFR #SLG-8- -
SKU #YLS9SOTFXFPKQRQ
View Details
Festo
SLG-12- -
MFR #SLG-12- -
SKU #YLS9BK0KMC5LER
View Details
Festo
ADVU-12- -P-A
MFR #ADVU-12- -P-A
SKU #YLS0CS8PIQ6XHGN
Featured Products
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Related Searches
FESTO ADN-63-40-A-P-A priceFESTO ADN-63-40-A-P-A quotebuy FESTO ADN-63-40-A-P-AADN-63-40-A-P-A priceADN-63-40-A-P-A stock availabilityFESTO spare partsFESTO ADN-63-40-A-P-A equivalentFESTO ADN-63-40-A-P-A specifications
