How can I get a price quote for Enerpac RSM750?

You can request a fast quote for Enerpac RSM750 from Yılsa Engineering. Reference part number CEY-55221B12DC22. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RSM750 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RSM750 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RSM750?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

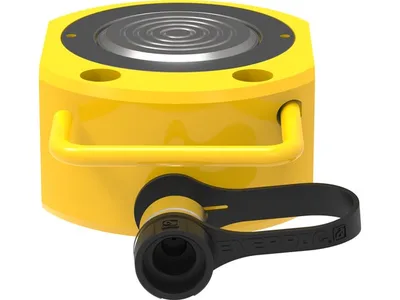

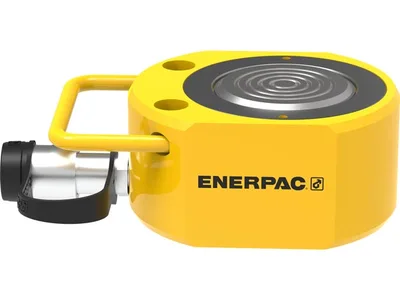

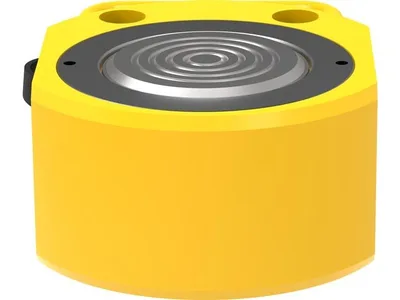

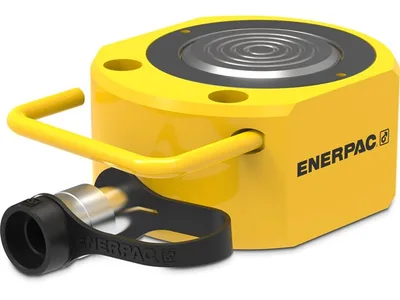

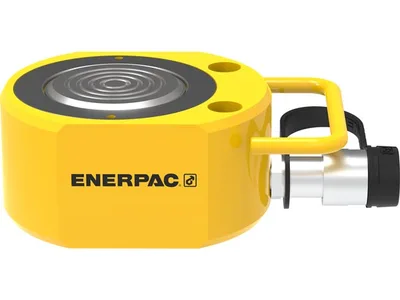

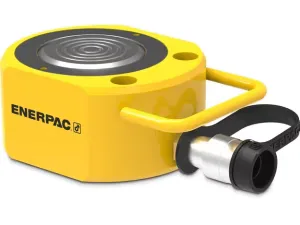

Enerpac RSM750 79.5 ton Low Height Cylinder

Enerpac RSM750; 79.5 ton capacity, 16 mm stroke, 79 mm collapsed height, single-acting spring-return low height hydraulic cylinder.

EnerpacMFR # RSM750SKU # CEY-55221B12DC22

Cylinder Class75 ton

Stroke16 mm (0.63 in)

Collapsed Height (A)79 mm (3.13 in)

Outside Diameter D165 x 139 mm (6.50 x 5.50 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Have questions?Chat on WhatsApp

About This Product

RSM750 is a low height hydraulic cylinder from the Enerpac RSM series. It has a 79.5 ton capacity (75 ton class) and a 16 mm stroke, with a collapsed height of 79 mm and outside dimensions of 165 x 139 mm. It is single-acting with spring return. Its flat sides and low collapsed height allow stable use in both vertical and horizontal orientations. Through mounting holes allow it to be fixed to machinery; the body has a painted (baked enamel) finish and weighs 11.3 kg. It is used for lifting, pushing and production applications where space is limited. A CR400 coupler and dust cap are included.

Features and Benefits

Compact, flat design for use where other cylinders will not fit
Mounting holes permit easy fixturing
Handles for easy carrying
Hard chrome plated steel plungers; grooved plunger ends require no saddle
Single-acting spring return for faster retraction
Baked enamel finish for corrosion resistance; CR400 coupler and dust cap included

Enerpac RSM750

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class75 ton

Stroke16 mm (0.63 in)

Collapsed Height (A)79 mm (3.13 in)

Outside Diameter D165 x 139 mm (6.50 x 5.50 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Weight11,3 kg (25 lbs)

Oil Capacity (Advance)164 cm³ (9.94 in³)

Plunger to Mounting Hole66 mm

Base Mounting Hole Pitch U76,2 mm (3 in)

Maximum Operating Pressure700 bar (10,000 psi)

Plunger to Mounting Hole (M)2.63 in

ApplicationsLift, Push

Maximum Cylinder Capacity (Advance)718 kN (79.5 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)114,3 mm (4.5 in)

Product TypeLow Height Cylinder

SeriesRSM

Base Mounting Hole Counterbore Depth14,2 mm (0.56 in)

Base to Advance Port H19 mm (0.75 in)

Model Type79.5 Ton Capacity, 0.63 in. Stroke

Product LineIndustrial Tools

Country of OriginChina

Extended Height (B)95 mm (3.75 in)

Cylinder Effective Area (Advance)102,6 cm² (15.9 in²)

Plunger to Base L69 mm

Plunger to Base (L)2.75 in

Plunger TypeSolid

Cylinder MaterialSteel

Base Mounting Hole Diameter V13,5 mm (0.53 in)

Saddle Protrusion from Plunger K2 mm (0.08 in)

Saddle Protrusion from Plunger K12 mm

Base Mounting Hole Counterbore Diameter20,6 mm (0.812 in)

Plunger Diameter F82,6 mm (3.25 in)

Documents & CAD

For this product 2

Repair Parts SheetLow Height Cylinders - RSM-750 / RSM-1000 / RSM-1500PDF·44 KB·English

2D DrawingRSM750 drawingPDF·742 KB

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRSM Cylinders Repair Parts Sheet (Europe Only)PDF·275 KB

BrochureRSM-RCS-Series Low-Height Cylinders; EnglishPDF·310 KB

CAD Files 3

3D Model
