How can I get a price quote for Enerpac PATG1102N?

You can request a fast quote for Enerpac PATG1102N from Yılsa Engineering. Reference part number YLSGQKK7NE87EPO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PATG1102N in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PATG1102N genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PATG1102N?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

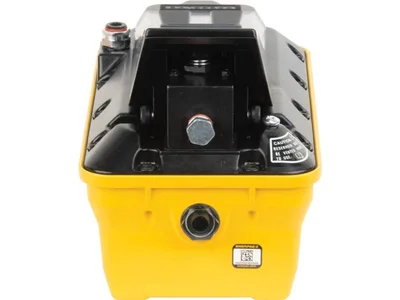

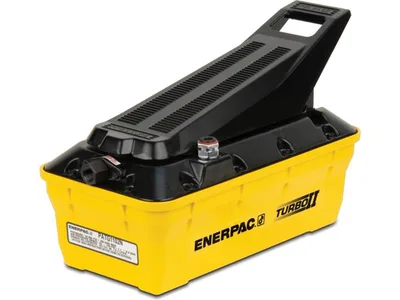

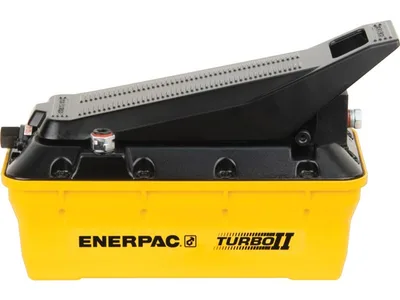

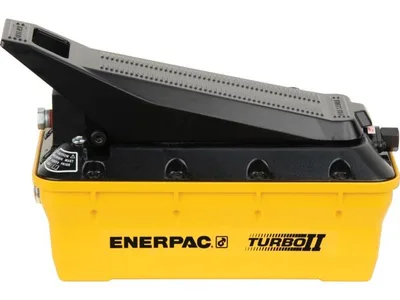

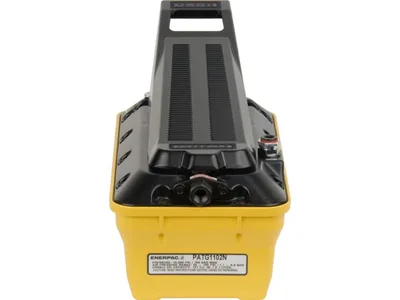

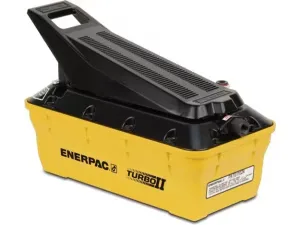

Enerpac PATG1102N 700 bar Air Hydraulic Pump

Enerpac PATG1102N; 700 bar (10,000 psi), 127 in³ usable oil, Turbo II air hydraulic pump with hand/foot operated 3/3 treadle valve, for single-acting cylinders.

EnerpacMFR # PATG1102NSKU # YLSGQKK7NE87EPO

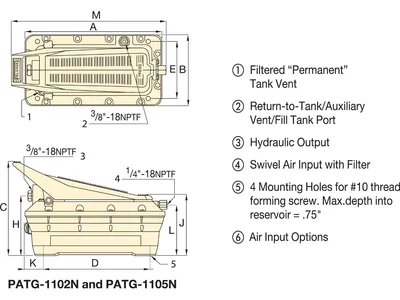

Dimension E102 mm (4 in)

Output Flow Rate (No Load)1,0 l/min (60 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,16 l/min (10 in³/min)

Country of OriginUnited States

Dimension D230 mm (9.04 in)

Have questions?Chat on WhatsApp

About This Product

PATG1102N is a Turbo II air hydraulic pump from the Enerpac PATG series. Maximum operating pressure is 700 bar (10,000 psi) and the reservoir is 127 in³ (approx. 2.1 L usable oil). No-load flow is 1.0 l/min (60 in³/min) and flow under load is 0.16 l/min (10 in³/min). The pump has a hand/foot operated 3-way, 3-position treadle valve for advance / hold / retract and is used with single-acting cylinders. A return-to-tank port is provided for remote valve applications. It suits medium to low cycle applications needing high hydraulic pressure from a low pressure air supply and hands-free operation.

Features and Benefits

High efficiency cast aluminum air motor
Air saver piston reduces air consumption and operating costs
Reinforced heavy-duty reservoir for tough environments
Return-to-tank port for remote valve applications
Internal pressure relief valve provides overload protection
Quiet operation: 76 dBA at 12 scfm air consumption

Enerpac PATG1102N

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E102 mm (4 in)

Output Flow Rate (No Load)1,0 l/min (60 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,16 l/min (10 in³/min)

Country of OriginUnited States

Dimension D230 mm (9.04 in)

Maximum Flow at Rated Pressure0.16 l/min (10 in3/min · 0,16 l/min · 10 in³/min)

Dimension C211 mm (8.29 in)

Usable Oil Capacity2081 cm³

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Dimension B165 mm (6.49 in)

Dimension K41.91 mm (1.65 in)

Dimension L113 mm (1.65 in)

Pump ControlHand/Foot

Dimension J146 mm (5.75 in)

Dimension H129 mm (5.15 in)

Dimension M347 mm (13.62 in)

Product TypeAir Pump

Reservoir Capacity2081 cm³ (127 in³)

Valve OperationManual

Pump Valve Type3-way, 3-position

SeriesPATG

Pump Power SourceAir

Air Pressure Range2,8 - 8,8 bar

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Cylinder CompatibilitySingle-acting

Air Consumption340 l/min (12 scfm)

Dimension A313 mm (12.33 in)

Product LineIndustrial Tools

Weight8,2 kg (18 lbs)

Documents & CAD

For this product 1

2D DrawingPATG1102N drawingPDF·1.5 MB

Series documents 6· shared by this product series

Instruction Manual10,000 PSI TURBO II AIR PUMPSPDF·1.6 MB·English

Instruction ManualAir PumpPDF·2.1 MB 4 languages· in one file

Repair Parts SheetTurbo II Air Pumps Repair Parts SheetPDF·1.7 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePA-Series Turbo II Air Hydraulic Pumps; EnglishPDF·342 KB

CAD Files 3

3D Model
