How can I get a price quote for Enerpac CUSP100?

You can request a fast quote for Enerpac CUSP100 from Yılsa Engineering. Reference part number YLSEEV2EUV6KZLB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CUSP100 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CUSP100 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CUSP100?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

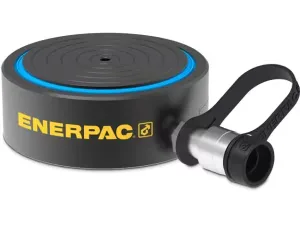

Enerpac CUSP100 121.1 ton Ultra Flat Cylinder

Enerpac CUSP100; 121.1 ton (approx. 1077 kN) capacity, 14.7 mm stroke, 63.5 mm collapsed height, ultra flat hydraulic cylinder with tilting saddle.

EnerpacMFR # CUSP100SKU # YLSEEV2EUV6KZLB

Cylinder Class100 ton

Stroke14.7 mm (0.58 in)

Collapsed Height (A)63.5 mm (2.50 in)

Outside Diameter D170 mm (6.69 in)

Return TypeSingle-Acting, Load Return

Surface TreatmentNitride

Have questions?Chat on WhatsApp

About This Product

Enerpac CUSP100 is a CUSP-series high-tonnage ultra-flat (pancake) hydraulic cylinder. It is single-acting with load return and offers 121.1 ton (approx. 1077 kN) capacity, a 14.7 mm stroke and a 63.5 mm collapsed height. Outside diameter is 170 mm and weight is about 10.8 kg. It has an integrated saddle that tilts up to 4 degrees to distribute the load evenly. It withstands up to 4% side load of maximum capacity, and a "Red Line" gives a visual maximum stroke indication. The surface is nitrocarburized and a coupler is included. It is suited to lifting applications in confined spaces where low height is required.

Features and Benefits

Up to 4% side load of maximum capacity
Extremely low collapsed height (63.5 mm)
Integrated tilting function up to 4 degrees to evenly distribute the load
Nitrocarburized surface treatment for harsh conditions
"Red Line" for visual maximum stroke limitation
Coupler included

Enerpac CUSP100

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class100 ton

Stroke14.7 mm (0.58 in)

Collapsed Height (A)63.5 mm (2.50 in)

Outside Diameter D170 mm (6.69 in)

Return TypeSingle-Acting, Load Return

Surface TreatmentNitride

Weight10,8 kg (23.8 lbs)

Oil Capacity (Advance)226 cm³ (13.81 in³)

Maximum Operating Pressure700 bar (10,150 psi)

ApplicationsLift

Maximum Cylinder Capacity (Advance)1078 kN (121.1 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)140 mm (5.51 in)

Product TypeLow Height Cylinder

Tilting Angle4 °

SeriesCUSP

Product LineIndustrial Tools

Country of OriginSpain

Tilted Stroke10 mm (0.39 in)

Extended Height (B)73,5 mm (3.08 in)

Cylinder Effective Area (Advance)153,9 cm² (23.85 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Documents & CAD

For this product 1

Instruction ManualCUSP-Series Ultra Flat Hydraulic CylindersPDF·775 KB

Series documents 4· shared by this product series

Repair Parts SheetCUSP-Series Ultra Flat Hydraulic CylindersPDF·741 KB·English

CertificateEC2A-CYL_CU_RevD_June2022_PTPDF·135 KB

CertificateEC2A-CYL-CUXX_RevD_June2022PDF·132 KB

BrochureCUSP-Series Ultra-Flat Cylinders; EnglishPDF·130 KB

CAD Files 3

3D Model
