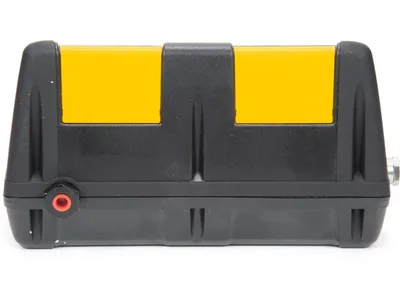

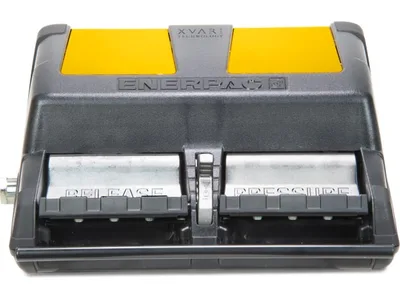

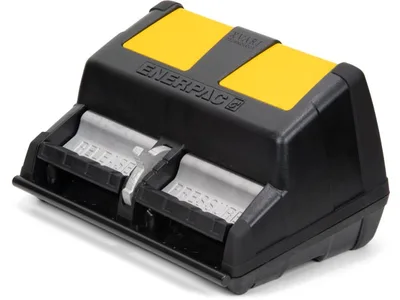

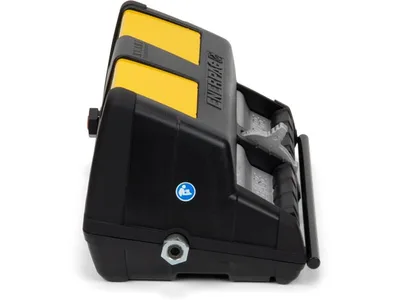

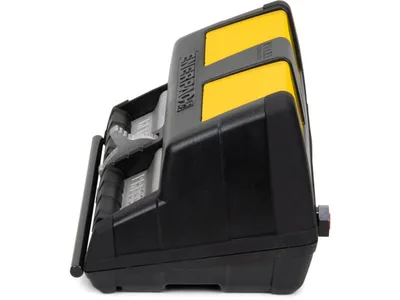

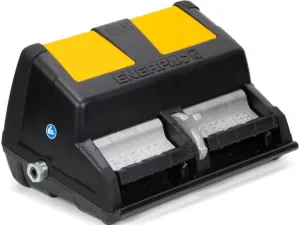

Enerpac XA12 700 bar Air Driven Pump

Enerpac XA12; 700 bar, 2.0 L (122 in³) usable oil, 3/3 valve, air-driven hydraulic pump for single-acting cylinders and tools.

EnerpacMFR # XA12SKU # CEY-7B4B2D998A89

Output Flow Rate (No Load)2,0 l/min (120 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Dimension H1N/A mm

Output Flow Rate at Load0,25 l/min (15 in³/min)

Country of OriginChina

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The XA12 is an XA series air-driven hydraulic foot pump. It has a 3-way, 3-position (advance/hold/retract) manual valve and is used with single-acting cylinders or tools. Maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is approximately 2.0 L (122 in³). Air pressure range is 2.1-8.6 bar (30-125 psi); no-load flow is 2.0 L/min and flow at rated pressure is 0.25 L/min. Two control pedals add and release pressure, with a pedal lock for the retract position. The closed hydraulic system prevents contamination and allows use in any position. It is used in workshop and maintenance applications where a larger oil volume and hands-free operation are needed.

Features and Benefits

2.0 L (122 in³) usable oil capacity
Higher oil flow for increased productivity
Variable oil flow and fine metering for precise control
Closed hydraulic system; usable in any position
Pedal lock for retract position and external adjustable pressure setting valve
ATEX certified; includes ground screw

Enerpac XA12

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,0 l/min (120 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Dimension H1N/A mm

Output Flow Rate at Load0,25 l/min (15 in³/min)

Country of OriginChina

Maximum Flow at Rated Pressure0.25 l/min (15 in3/min · 0,25 l/min · 15 in³/min)

Maximum Operating Pressure700 bar (10,000 psi)

Air Pressure Range2,1 - 8,6 bar (30 - 125 psi)

Valve FunctionAdvance / Hold / Retract

Dimension H2170 mm (6.69 in)

Dimension LN/A mm

Product TypeAir Pump

Reservoir Capacity2000 cm³ (122 in³)

Valve OperationManual

Pump Valve Type3-way, 3-position

SeriesXA

Usable Oil Capacity2,0 l (122 in³)

Pump Power SourceAir

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type122 in3 Capacity, Single-Acting Compatible, Without Gauge

Cylinder CompatibilitySingle-acting

Air Consumption283 - 991 l/min (10 - 35 scfm)

Product LineIndustrial Tools

Weight10,2 kg (22.4 lbs)

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualXA-Series PumpPDF·3.4 MB

Instruction ManualXA-Series PumpPDF·3.3 MB

Repair Parts SheetXA-Series Air Driven Hydraulic PumpPDF·2.3 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2B-XA1_ATEX_RevJ_Oct2022PDF·406 KB

BrochureXA-Series Air Hydraulic Foot Pumps; EnglishPDF·344 KB

CAD Files 3

3D Model
