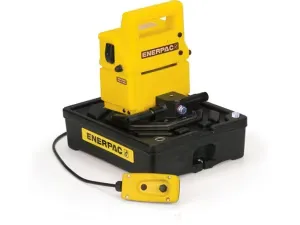

Enerpac PUJ1201B 700 bar electric hydraulic pump

Enerpac PUJ1201B; 700 bar (10,000 psi) maximum pressure, 115 V, 3.8 l usable oil capacity, two-speed economy electric hydraulic pump with 3/2 manual valve.

EnerpacMFR # PUJ1201BSKU # CEY-8EF3B033E305

Dimension E130 mm (5.12 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Have questions?Chat on WhatsApp

About This Product

The PUJ1201B is a two-speed economy electric hydraulic pump from the PU series. Its 3/2 manual valve provides advance, hold and retract functions for single-acting cylinders. It suits small to medium size cylinders and hydraulic tools. Maximum operating pressure is 700 bar (10,000 psi). The first stage delivers 200 in³/min (about 3.3 l/min) up to 200 psi (about 14 bar), and the second stage delivers 0.32 l/min. The motor is rated 115 V, 50/60 Hz. Reservoir capacity is 231 in³ with 1 gal (about 3.8 l) usable oil, and the duty cycle is intermittent. A 3 m cord with 24 VAC remote motor control supports operator safety. The high-strength shroud with integral handle protects the motor from contamination and damage in industrial environments.

Features and Benefits

Two-speed operation reduces cycle times
700 bar (10,000 psi) maximum operating pressure
3/2 manual valve for advance / hold / retract
3 m cord with 24 VAC remote motor control
115 V universal motor operates under poor voltage supply and starts under full load
High-strength shroud with integral handle protects the motor

Enerpac PUJ1201B

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E130 mm (5.12 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Dimension D105 mm (4.15 in)

Maximum Flow at Rated Pressure0.32 l/min (20 in3/min · 0,32 l/min · 20 in³/min)

Dimension C373 mm (14.72 in)

Motor Electrical Specification115 V, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Dimension B309 mm (12.18 in)

Output Flow Rate 2nd Stage0,32 l/min (20 in³/min)

Motor Voltage115 V V

Usable Oil Capacity3,8 l (1 gal)

Pump ControlPendant

Dimension J142 mm (5.62 in)

Dimension H10.16 mm (0.4 in)

1st Stage Pressure Rating13 bar (200 psi)

Product TypeElectric Pump - Economy

Duty CycleIntermittent

Reservoir Capacity3800 cm³ (231 in³)

Sound Level85 dB(A)

Valve OperationManual

Pump Valve Type3-way, 2-position

Motor Size0.5 hp

SeriesPU

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Current Draw9.5 A

Cylinder CompatibilitySingle-acting

Dimension A368 mm (14.5 in)

Product LineIndustrial Tools

Weight17,5 kg (31 lbs)

Documents & CAD

For this product 1

2D DrawingPUJ1201B drawingPDF·654 KB

Series documents 6· shared by this product series

Instruction Manual1/2 HP Portable Electric PumpsPDF·8.3 MB 4 languages· in one file

Repair Parts SheetPump - Electric - RPSPDF·895 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePU-Series Economy Electric Pumps; EnglishPDF·324 KB

DocumentPump - ElectricPDF·67 KB·English
