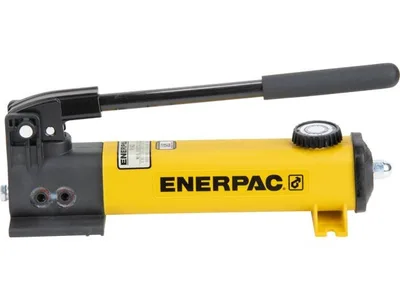

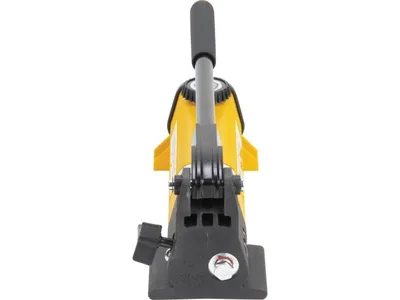

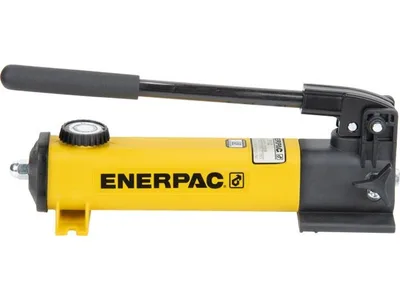

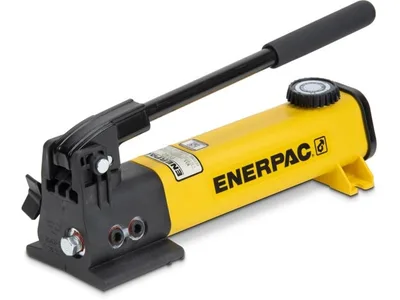

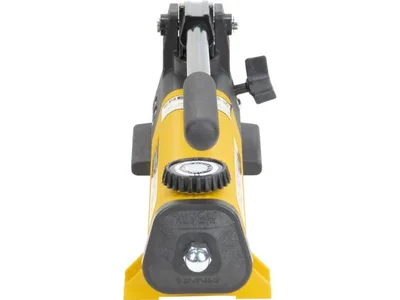

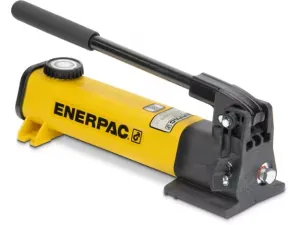

Enerpac P142 700 bar Two Speed Hand Pump

Enerpac P142; 700 bar, 327 cm³ (20 in³) usable oil, 0.90 cm³ per stroke, two-speed lightweight hydraulic hand pump compatible with single-acting cylinders.

EnerpacMFR # P142SKU # CEY-937FC78079FD

Cylinder CompatibilitySingle-acting

Usable Oil Capacity327 cm³ (20 in³)

Pump TypeTwo Speed

Max. Handle Effort35,4 kg (78 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Weight2,4 kg (5.3 lbs)

Have questions?Chat on WhatsApp

About This Product

The P142 is a two-speed model among the Enerpac P series lightweight hydraulic hand pumps. It has a maximum operating pressure of 700 bar, 327 cm³ (20 in³) usable oil capacity and 0.90 cm³ oil flow per stroke. It is compatible with single-acting cylinders. Maximum handle effort is 35.4 kg and weight is 2.4 kg. Two-speed operation reduces the number of handle strokes compared to a single-speed pump when advancing a tool such as a cylinder to load contact. The glass-filled nylon reservoir and nylon encapsulated aluminum pump base provide corrosion resistance.

Features and Benefits

Two-speed operation reduces handle strokes by as much as 78% over single-speed pumps
Lightweight and compact design
Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for corrosion resistance
Lower handle effort to minimize operator fatigue
Non-conductive fiberglass handle and handle lock
Internal pressure relief valve for overload protection

Enerpac P142

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder CompatibilitySingle-acting

Usable Oil Capacity327 cm³ (20 in³)

Pump TypeTwo Speed

Max. Handle Effort35,4 kg (78 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Weight2,4 kg (5.3 lbs)

Maximum Flow at Rated Pressure0.0009 l/min (0,90 cm3/stroke · .055 in3/stroke · 0.055 in³/min)

Dimension N95 mm (3.75 in)

Dimension G1/4" - 18 NPTF mm

Dimension E28 mm (1.13 in)

Dimension P80 mm (3.25 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginChina

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension D85 mm (3.37 in)

Dimension C28 mm (1.13 in)

Oil Displacement per Stroke (2nd Stage)0,90 cm³ (0.055 in³)

Dimension S7 mm (0.28 in)

Dimension B336 mm (13.25 in)

Dimension L143 mm (5.63 in)

Oil Displacement per Stroke (1st Stage)3,62 cm³ (0.221 in³)

Dimension J19 mm (0.75 in)

Dimension H319 mm (12.56 in)

1st Stage Pressure Rating13 bar (200 psi)

Product TypeHand Pump - Two Speed

Reservoir Capacity327 cm³ (20 in³)

Valve OperationManual

SeriesP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Model Type20 in3 Capacity, Lightweight, Single-acting Compatible, 0.221 in3 Flow, 10,000 psi

Dimension A185 mm (7.31 in)

Product LineIndustrial Tools, Workholding Tools

Piston Stroke12,7 mm (0.5 in)

Documents & CAD

Series documents 14· shared by this product series

Instruction ManualTank Return KitPDF·426 KB·English

Instruction ManualHydraulic Hand PumpsPDF·510 KB

Instruction ManualHydraulic Hand PumpsPDF·4.8 MB 4 languages· in one file

Repair Parts SheetPump - HandPDF·715 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·229 KB·English

CertificateEC2B-HANDPUMPS_RevK_Feb2025PDF·585 KB

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

CertificateEC2B-HANDPUMPS_RevJ_Oct2022PDF·603 KB

BrochureP-Series Lightweight Hand Pumps; EnglishPDF·363 KB

CAD Files 3

3D Model
