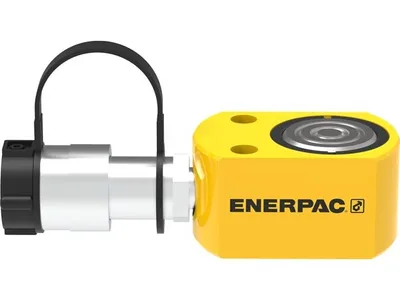

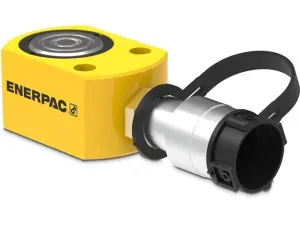

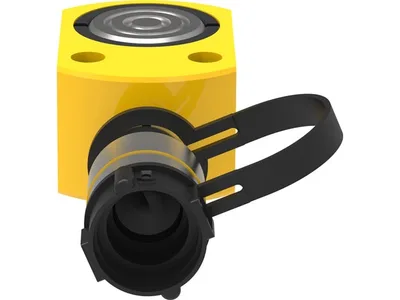

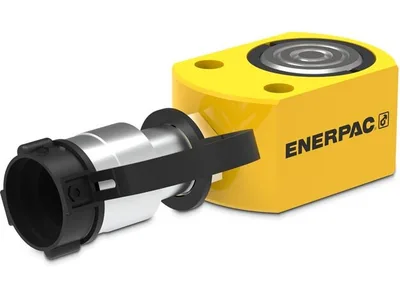

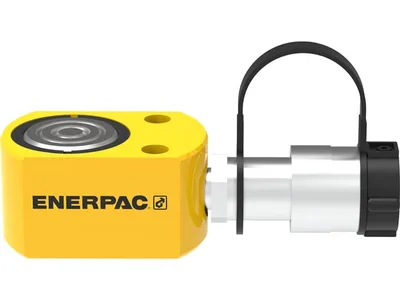

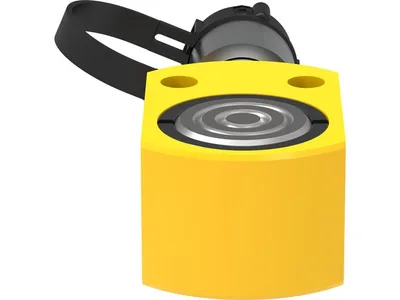

Enerpac RSM100 11.2 ton 11 mm Stroke Low Height Cylinder

Enerpac RSM100; 11.2 ton capacity, 11 mm (0.44 in) stroke, 700 bar max pressure, single-acting spring return low height hydraulic cylinder.

EnerpacMFR # RSM100SKU # YLSLXURI9UUX1BF

Oil Capacity (Advance)18 cm³ (0.98 in³)

Plunger to Mounting Hole34 mm

Base Mounting Hole Pitch U36,6 mm (1.44 in)

Maximum Operating Pressure700 bar (10,000 psi)

Plunger to Mounting Hole (M)1.34 in

ApplicationsLift, Push

Have questions?Chat on WhatsApp

About This Product

The RSM100 is the smallest model in the RSM series of low profile hydraulic cylinders. It has an 11.2 ton capacity, 11 mm (0.44 in) stroke and a maximum operating pressure of 700 bar (10,000 psi). Its compact, flat-sided body allows safe and stable use in vertical and horizontal orientations. Advance oil capacity is 18 cm³, cylinder bore is 42.9 mm, collapsed height is 27 mm and extended height is 54 mm. The cylinder is single-acting with spring return and is supplied with a CR400 coupler and dust cap. It is used in general lifting and production applications where space is limited. Two through mounting holes make it easy to fix the cylinder to machinery or fixtures.

Features and Benefits

Compact, flat low height design for tight spaces
Single-acting design with spring return
Mounting holes for easy fixturing
Baked enamel finish for increased corrosion resistance
Hard chrome plated steel plunger; grooved end needs no saddle
CR400 coupler and dust cap included

Enerpac RSM100

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)18 cm³ (0.98 in³)

Plunger to Mounting Hole34 mm

Base Mounting Hole Pitch U36,6 mm (1.44 in)

Maximum Operating Pressure700 bar (10,000 psi)

Plunger to Mounting Hole (M)1.34 in

ApplicationsLift, Push

Maximum Cylinder Capacity (Advance)101 kN (11.2 ton)

Outside Diameter D82 x 55 mm (3.25 x 2.19 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)42,9 mm (1.69 in)

Product TypeLow Height Cylinder

SeriesRSM

Base Mounting Hole Counterbore Depth7,9 mm (0.31 in)

Base to Advance Port H19 mm (0.75 in)

Model Type11.2 Ton Capacity, 0.44 in. Stroke

Product LineIndustrial Tools

Weight1,4 kg (3.1 lbs)

Surface TreatmentPaint

Cylinder Class10 ton

Country of OriginChina

Extended Height (B)54 mm (2.13 in)

Cylinder Effective Area (Advance)14,5 cm² (2.24 in²)

Plunger to Base L27 mm

Plunger to Base (L)1.09 in

Plunger TypeSolid

Collapsed Height (A)43 mm (1.69 in)

Cylinder MaterialSteel

Base Mounting Hole Diameter V7,1 mm (0.28 in)

Stroke11 mm (0.44 in)

Saddle Protrusion from Plunger K1 mm (0.04 in)

Saddle Protrusion from Plunger K11 mm

Base Mounting Hole Counterbore Diameter10,7 mm (0.422 in)

Return TypeSingle-Acting, Spring Return

Plunger Diameter F38,1 mm (1.5 in)

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRSM Cylinders Repair Parts Sheet (Europe Only)PDF·275 KB

Repair Parts SheetRSM50, RSM100 Repair Parts SheetPDF·389 KB·English

BrochureRSM-RCS-Series Low-Height Cylinders; EnglishPDF·310 KB

CAD Files 3

3D Model
