How can I get a price quote for Enerpac RCH120?

You can request a fast quote for Enerpac RCH120 from Yılsa Engineering. Reference part number CEY-8EF3B033E9A4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RCH120 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RCH120 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RCH120?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

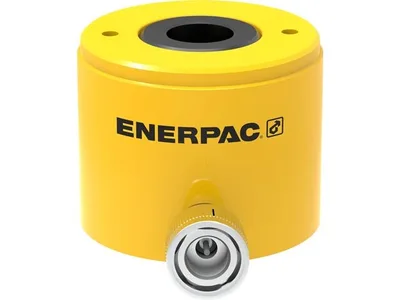

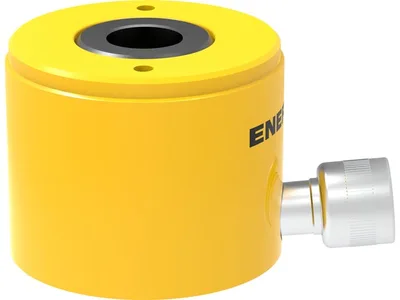

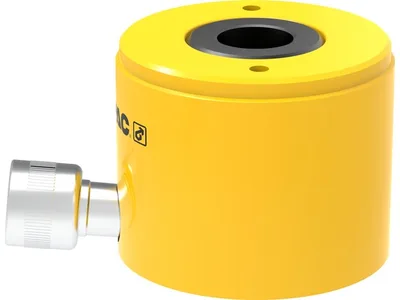

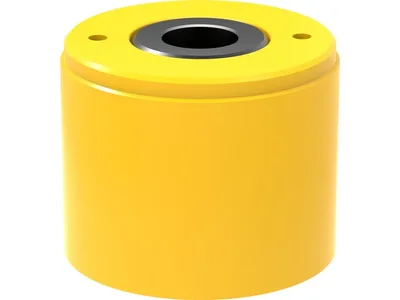

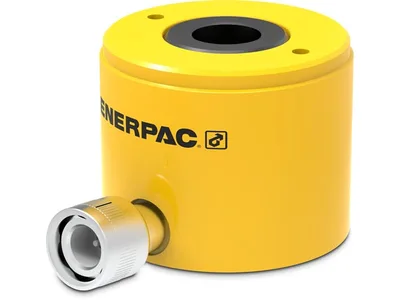

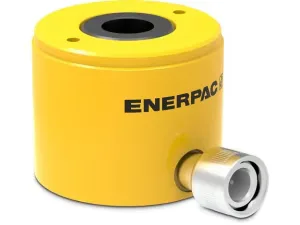

Enerpac RCH120 13.8 ton Hollow Cylinder

Enerpac RCH120; 13.8 ton capacity (12 ton class), 8 mm stroke, 700 bar (10,000 psi), single-acting spring-return hollow plunger hydraulic cylinder.

EnerpacMFR # RCH120SKU # CEY-8EF3B033E9A4

Cylinder Class12 ton

Stroke8 mm (0.31 in)

Collapsed Height (A)55 mm (2.19 in)

Outside Diameter D69 mm (2.75 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U50,8 mm (2.00 in)

Have questions?Chat on WhatsApp

About This Product

RCH120 is a compact single-acting, spring-return hollow plunger hydraulic cylinder from the RCH series. It offers 13.8 ton capacity (12 ton cylinder class) and 8 mm stroke, with a 700 bar (10,000 psi) pressure rating. Collapsed height is 55 mm, outside diameter is 69 mm and weight is 1.5 kg. Base mounting holes are on a 50.8 mm bolt circle; collar thread is 2 3/4" - 16. The surface is painted. The hollow plunger design allows push, pull, lift and tension applications. It includes an AR630 coupler and has a 1/4 NPTF port.

Features and Benefits

Hollow plunger design provides both push and pull force
Single-acting spring return
Compact build: 55 mm collapsed height, 1.5 kg
Baked enamel finish increases corrosion resistance
Collar threads and base mounting holes for easy fixturing
AR630 coupler included; 1/4 NPTF port

Enerpac RCH120

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class12 ton

Stroke8 mm (0.31 in)

Collapsed Height (A)55 mm (2.19 in)

Outside Diameter D69 mm (2.75 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U50,8 mm (2.00 in)

Collar Thread (W)2 3/4" - 16

Surface TreatmentPaint

Weight1,5 kg (3.2 lbs)

Oil Capacity (Advance)14 cm³ (0.86 in³)

Base Mounting Holes Thread Depth Z9,0 mm (0.35 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push, Pull, Tension

Base Mounting Holes Thread V5/16"-18 unc

Maximum Cylinder Capacity (Advance)125 kN (13.8 ton)

Coupler UsedAR630 Coupler

Cylinder Bore Diameter (E)54,1 mm (2.13 in)

Product TypeHollow Plunger Cylinder

SeriesRCH

Plunger Internal Thread3/4" - 16 un

Base to Advance Port H9 mm (0.38 in)

Model Type13.8 Ton, 0.31" Stroke, 0.77" Hole Diam.

Product LineIndustrial Tools

Plunger Internal Thread O3/4" - 16 un

Country of OriginChina

Collar Thread Length (X)30 mm (1.19 in)

Center Hole Diameter Y19,5 mm (0.77 in)

Extended Height (B)63 mm (2.5 in)

Cylinder Effective Area (Advance)17,9 cm² (2.76 in²)

Plunger TypeHollow

Cylinder MaterialSteel

Plunger Thread Length (P)16 mm (0.63 in)

Plunger Diameter F35,1 mm (1.38 in)

Set IncludesAR630

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - Hollow - RPSPDF·154 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·221 KB·English

BrochureRCH-Series Hollow Plunger Cylinders; EnglishPDF·323 KB

CAD Files 3

3D Model
