How can I get a price quote for Enerpac RACH202?

You can request a fast quote for Enerpac RACH202 from Yılsa Engineering. Reference part number CEY-8EF3B033E3B8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RACH202 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RACH202 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RACH202?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

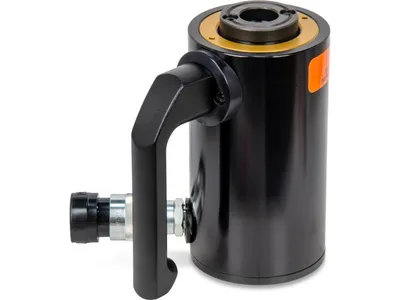

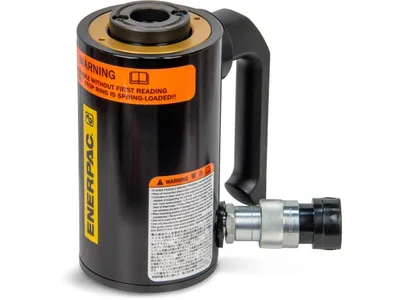

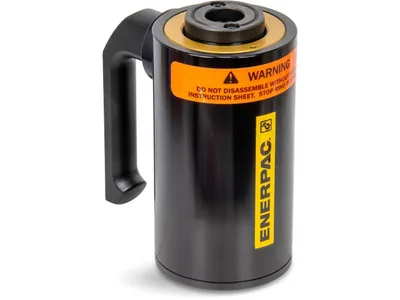

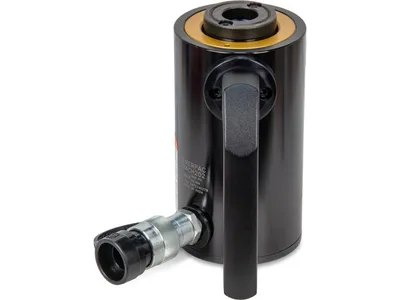

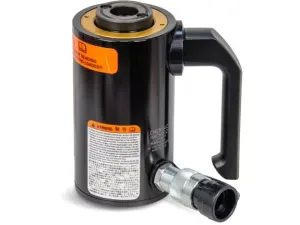

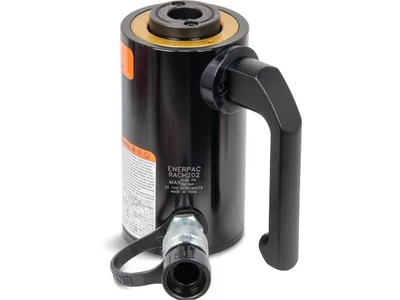

Enerpac RACH202 25.4 ton Hydraulic Cylinder

Enerpac RACH202; 25.4 ton, 50 mm (1.97 in) stroke, 700 bar, single-acting spring-return aluminum hollow plunger hydraulic cylinder.

EnerpacMFR # RACH202SKU # CEY-8EF3B033E3B8

Cylinder Class20 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)188 mm (7.41 in)

Outside Diameter D100 mm (3.93 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U80 mm (3.15 in)

Have questions?Chat on WhatsApp

About This Product

RACH202 is an RACH-series aluminum hollow plunger (center-hole) hydraulic cylinder. It is single-acting with spring return, offering 25.4 ton capacity and 50 mm (1.97 in) stroke. Cylinders in this series are rated up to 700 bar (10,000 psi). Collapsed height is 188 mm, outside diameter 100 mm, base mounting hole bolt circle 80 mm and weight 5.2 kg. The surface is anodized. A CR400 coupler and dustcap are included. The hollow plunger has an internal thread so it can be fixed to the component being pulled, making the cylinder suitable for lifting, pushing, pulling and tensioning applications. It meets ASME B30.1.

Features and Benefits

Hollow plunger design provides both pull and push force
Aluminum body weighs about half of an equivalent steel cylinder for better portability (5.2 kg)
Composite bearings increase cylinder life and side load resistance
Integral stop ring prevents plunger over-travel
Steel baseplate and saddle protect against load-induced damage
High-strength return spring for rapid retraction; CR400 coupler and dustcap included

Enerpac RACH202

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class20 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)188 mm (7.41 in)

Outside Diameter D100 mm (3.93 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U80 mm (3.15 in)

Surface TreatmentAnodized

Weight5,2 kg (11.5 lbs)

Oil Capacity (Advance)164 cm³ (9.98 in³)

Base Mounting Holes Thread Depth Z12 mm (0.47 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push, Pull, Tension

Base Mounting Holes Thread VM6

Maximum Cylinder Capacity (Advance)229 kN (25.4 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)75 mm (2.95 in)

Product TypeAluminum Hollow Plunger Cylinder

SeriesRACH

Base to Advance Port H29 mm (1.14 in)

Product LineIndustrial Tools

Saddle Diameter J55 mm (2.17 in)

Country of OriginIndia

Center Hole Diameter Y27 mm (1.06 in)

Saddle Diameter J155 mm

Extended Height (B)238 mm (9.38 in)

Cylinder Effective Area (Advance)32,7 cm² (5.07 in²)

Plunger TypeHollow

Cylinder MaterialAluminum

Saddle Protrusion from Plunger K10 mm (0.4 in)

Saddle Protrusion from Plunger K110 mm

Plunger Diameter F55 mm (2.17 in)

Documents & CAD

For this product 1

2D DrawingRACH202 drawingPDF·306 KB

Series documents 2· shared by this product series

Repair Parts SheetRACH Aluminum CylinderPDF·468 KB·English

BrochureRACH-Series Lightweight Hollow Plunger Cylinders; EnglishPDF·267 KB

CAD Files 3

3D Model
