How can I get a price quote for Enerpac RR1006?

You can request a fast quote for Enerpac RR1006 from Yılsa Engineering. Reference part number CEY-8EF3B033DA9F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RR1006 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RR1006 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RR1006?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

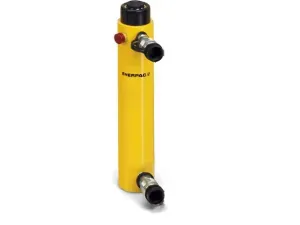

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac RR1006 103.2 ton Double-Acting Cylinder

Enerpac RR1006; 103.2 ton, 168 mm (6.63 in) stroke, double-acting general purpose hydraulic cylinder for lifting, lowering, pushing and pulling.

EnerpacMFR # RR1006SKU # CEY-8EF3B033DA9F

Cylinder Class100 ton

Stroke168 mm (6.63 in)

Collapsed Height (A)357 mm (14.06 in)

Outside Diameter D177 mm (7 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U139 mm (5.5 in)

Have questions?Chat on WhatsApp

About This Product

RR1006 is a double-acting, general purpose hydraulic cylinder from the RR Series. It has a 103.2 ton (100 ton class) capacity and a 168 mm (6.63 in) stroke, with hydraulic return. Collapsed height is 357 mm, outside diameter 177 mm, base mounting hole bolt circle 139 mm and collar thread 6 7/8 in – 12. The body is painted and the weight is 61 kg. A CR400 coupler is included on all models. It is used for lifting, lowering, pushing and pulling, particularly in high-cycle applications that call for a short stroke and a relatively low collapsed height.

Features and Benefits

Collar and plunger threads for easy fixturing
Baked enamel finish for increased corrosion resistance
Removable hardened saddles protect the plunger during lifting and pressing
Built-in safety valve prevents accidental over-pressurization
Plunger wiper reduces contamination
CR400 coupler included

Enerpac RR1006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class100 ton

Stroke168 mm (6.63 in)

Collapsed Height (A)357 mm (14.06 in)

Outside Diameter D177 mm (7 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U139 mm (5.5 in)

Collar Thread (W)6 7/8" - 12

Surface TreatmentPaint

Weight61 kg (135 lbs)

Oil Capacity (Advance)2238 cm³ (136.93 in³)

Base Mounting Holes Thread Depth Z25 mm (1 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)1045 cm³ (63 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V¾”- 10 (3/4" - 10)

Maximum Cylinder Capacity (Advance)933 kN (103.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)130,3 mm (5.13 in)

Product TypeGeneral Purpose Cylinder

SeriesRR

Plunger Internal Thread1 3/4" - 12

Base to Advance Port H38 mm (1.5 in)

Model Type103.2 Ton Capacity, 6.63 in. Stroke

Max. Cylinder Retract Capacity48 ton

Product LineIndustrial Tools

Top to Retract Port (I)71 mm (2.81 in)

Plunger Internal Thread O1 3/4"- 12

Saddle Diameter J76 mm (3 in)

Country of OriginChina

Collar Thread Length (X)50 mm (2 in)

Saddle Diameter J176 mm

Extended Height (B)525 mm (20.69 in)

Cylinder Effective Area (Advance)133,3 cm² (20.65 in²)

Cylinder Effective Area (Retract)62,2 cm²

Plunger TypeSolid

Cylinder Effective Area (Retract)9.6 in²

Cylinder MaterialSteel

Saddle Protrusion from Plunger K3 mm (0.13 in)

Saddle Protrusion from Plunger K13 mm

Plunger Thread Length (P)35 mm (1.38 in)

Plunger Diameter F95,2 mm (3.75 in)

Documents & CAD

For this product 1

2D DrawingRR1006 drawingPDF·519 KB

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinders - RR-1006, RR-10013, RR-10018PDF·112 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·223 KB·English

BrochureRR-Series Cylinders Double-Acting Long Stroke; EnglishPDF·409 KB

CAD Files 3

3D Model
