Enerpac
Enerpac IPA1022 10 Ton Bench Hydraulic Press
MFR #IPA1022
SKU #YLSB84VLNI31ZC6
Photo may not represent actual item. Refer to name and product specs for all details.

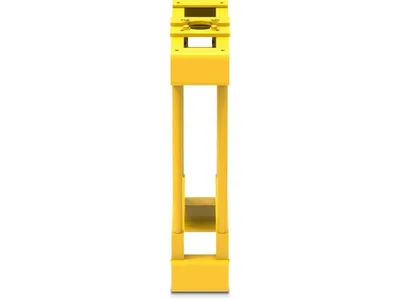

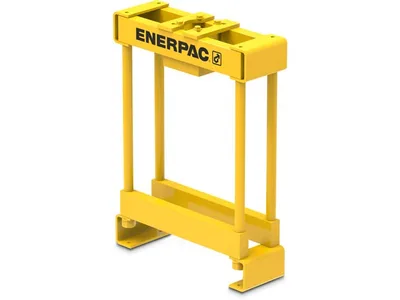

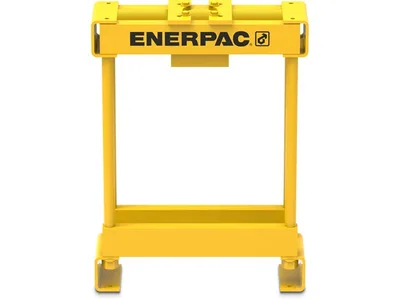

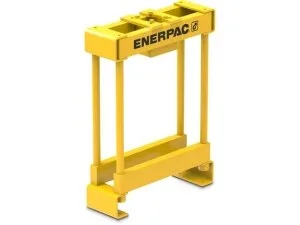

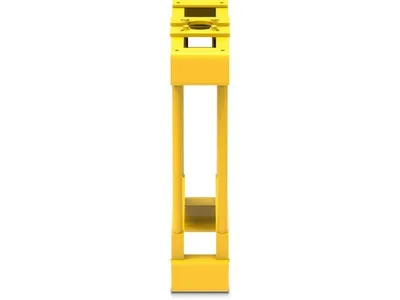

Enerpac A258 10 Ton Bench Hydraulic Press
Enerpac A258; 10 ton (101 kN) capacity, 419 mm maximum vertical daylight, 381 mm bed width and 48 kg weight, bench-type hydraulic press.
Press Capacity101 kN (10 ton)
Max. Vertical Daylight419 mm (15.38 in)
Maximum Bed Width381 mm
Weight48 kg (103 lbs)
Dimension N2.2 in
Dimension G25 mm (1 in)
About This Product
The A258 is a 10 ton (101 kN) bench-type hydraulic press from the Enerpac Industrial Tools product line. It can be mounted on a workbench or other fixed surface to create a compact pressing station.
The press offers a maximum vertical daylight of 419 mm, a maximum bed width of 381 mm and weighs 48 kg. A cylinder mounting adaptor allows the cylinder to be positioned laterally along the rails.
Typical applications include bearing, bushing and shaft removal and insertion, precision pressing and small-part maintenance work. Accessories such as the A183 push pin and A185 smooth saddle fit 10 ton cylinders using the A13 threaded adaptor saddle.
Features and Benefits
- Cylinder mounting adaptor allows lateral positioning along rails
- Mounting holes for easy mounting to fixed surfaces
- A183 push pin for precision pressing such as shaft removal and insertion (requires 10 ton cylinder and A13 threaded adaptor saddle)
- A185 smooth saddle reduces surface marks on delicate parts such as aluminum castings (requires 10 ton cylinder and A13 threaded adaptor saddle)
- 419 mm vertical daylight and 381 mm bed width
Enerpac A258
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Press Capacity101 kN (10 ton)
Max. Vertical Daylight419 mm (15.38 in)
Maximum Bed Width381 mm
Weight48 kg (103 lbs)
Dimension N2.2 in
Dimension G25 mm (1 in)
Dimension E146 mm (5.75 in)
Country of OriginUnited States
Dimension F82 mm (3.25 in)
Dimension O2.63 in
Dimension D406 mm (16 in)
Max. Operating Pressure10,000 psi
Dimension C419 mm (16.5 in)
Maximum Operating Pressure700 bar (10,000 psi)
Dimension B476 mm (18.75 in)
Dimension K69 mm (2.75 in)
Dimension J31 mm (1.25 in)
Dimension H114 mm (4.5 in)
Max. Bed Width15 in
Product TypeBench Press
Dimension L1.88 in
Dimension M5.3 in
Capacity10 ton
Dimension A651 mm (25.63 in)
Product LineIndustrial Tools
Documents & CAD
For this product 1
Series documents 3· shared by this product series
CAD Files 3
