How can I get a price quote for Enerpac XLP256XA11GU?

You can request a fast quote for Enerpac XLP256XA11GU from Yılsa Engineering. Reference part number YLSYXK723C32NBK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XLP256XA11GU in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XLP256XA11GU genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XLP256XA11GU?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

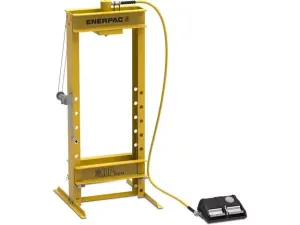

Enerpac XLP256XA11GU 25 Ton Workshop Press

Enerpac XLP256XA11GU; 25 ton (232 kN) workshop hydraulic press with RC256 single-acting cylinder, 159 mm stroke and XA11G air pump, 700 bar operating pressure.

EnerpacMFR # XLP256XA11GUSKU # YLSYXK723C32NBK

Dimension N218 mm (8.58 in)

Dimension G710 mm (27.95 in)

Dimension E510 mm (20.08 in)

Dimension F630 mm (24.8 in)

Dimension O1072 mm (42.2 in)

Dimension D32 mm (1.26 in)

Have questions?Chat on WhatsApp

About This Product

The XLP256XA11GU is an XLP-series workshop press with 25 ton (232 kN) capacity. It comes with an RC256 single-acting cylinder (159 mm stroke) and an XA11G air pump; maximum operating pressure is 700 bar. The press features a welded H-frame, an adjustable bolster and a horizontally adjustable cylinder. Maximum bed width is 510 mm (20.08 in). Set contents: RC256, XA11G, HC7210. It is used in workshop and maintenance environments with compressed air for pressing, straightening and bearing work.

Features and Benefits

Sturdy welded H-frame, adjustable bolster and horizontally adjustable cylinder
Easy height adjustment with integrated winch mechanism
Horizontal cylinder adjustment enables flexible load placement
232 kN (25 ton) capacity, 700 bar operating pressure
RC256 cylinder (159 mm stroke) and XA11G air pump

Enerpac XLP256XA11GU

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N218 mm (8.58 in)

Dimension G710 mm (27.95 in)

Dimension E510 mm (20.08 in)

Dimension F630 mm (24.8 in)

Dimension O1072 mm (42.2 in)

Dimension D32 mm (1.26 in)

Cylinder Stroke159 mm (6.25 in)

Rapid Advance Speed (per Stroke)- in

Max. Operating Pressure10,000 psi

Dimension CN/A mm

Maximum Operating Pressure700 bar (10,000 psi)

Capacity232 kN (25 ton)

Dimension B140 mm (5.51 in)

Dimension K357-1211 mm (14.06-47.68 in)

Dimension J1705 mm (67.13 in)

Dimension H1620 mm (63.78 in)

Max. Bed Width20.08 in

Pressing Speed- mm/strok (1,3 mm/s · 0.05 sec/in)

Product TypeWorkshop Press

Dimension MN/A mm

SeriesXLP

Rapid Advance Speed- mm/strok (10,0 mm/s · 0.39 sec/in)

Max. Vertical Daylight1211 mm (47.68 in)

Cylinder TypeSingle-Acting

Valve Power SourceManual

Press Capacity232 kN (25 ton)

Power Source TypeAir

Dimension P122 mm (4.8 in)

Dimension A270 mm (10.63 in)

Product LineIndustrial Tools

Weight170 kg (375 lbs)

Maximum Bed Width510 mm

Set IncludesRC256,XA11G,HC7210

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualXLP-Series Workshop Presses (25 Tons)PDF·1.3 MB

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·2.2 MB

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·8.4 MB 4 languages· in one file

BrochureXLP-VLP-Series Bench Workshop Presses; EnglishPDF·337 KB

Alternative Names & Search Terms

XLP256XA11GUXLP-256XA11GUXLP 256XA11GUEnerpac XLP256XA11GUEnerpac XLP-256XA11GUXLP256XA11GU pressXLP256XA11GU workshop pressXLP256XA11GU hydraulic pressEnerpac XLP seriesEnerpac XLP workshop press25 ton workshop press25 ton hydraulic press232 kN hydraulic pressair pump workshop presshydraulic press with RC256 cylinderhydraulic press with XA11G air pump159 mm stroke hydraulic press25 ton H-frame workshop press25 ton press with winch
