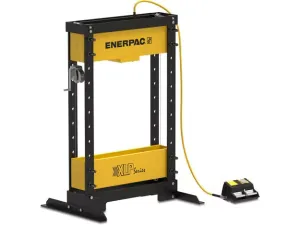

Enerpac XLP506XA12GU 50 ton workshop press

Enerpac XLP506XA12GU; 498 kN (50 ton) workshop hydraulic press with RC506 single-acting cylinder (159 mm stroke), XA12G air pump, 700 bar.

EnerpacMFR # XLP506XA12GUSKU # YLS2ZCIOVEII0NO

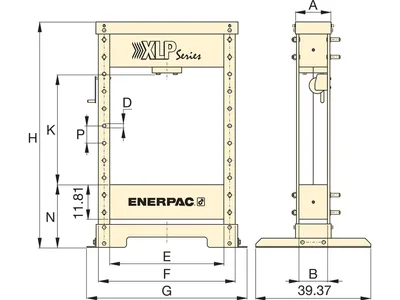

Dimension N545 mm (21.46 in)

Dimension G1390 mm (54.72 in)

Dimension E990 mm (38.98 in)

Dimension F1190 mm (46.85 in)

Dimension D32 mm (1.26 in)

Cylinder Stroke159 mm (6.25 in)

Have questions?Chat on WhatsApp

About This Product

The XLP506XA12GU is a 498 kN (50 ton) workshop hydraulic press from the XLP series. The set includes the RC506 single-acting cylinder with 159 mm stroke and the foot-activated XA12G pneumatic pump; maximum operating pressure is 700 bar (10,000 psi). The press features adjustable lower and upper bolsters and a horizontally adjustable RC cylinder. Rapid advance is 0.18 sec/in. Maximum horizontal daylight is 990 mm and maximum vertical daylight is 960 mm (37.8 in). It is supplied as an unassembled kit including the frame, winch, cylinder, pump, gauge, couplers and hose. It is used for straightening, press-fitting and assembly/disassembly in workshops with an air supply.

Features and Benefits

498 kN (50 ton) capacity, 700 bar operating pressure
Adjustable lower and upper bolsters
Horizontally adjustable RC cylinder for flexible load placement
High-speed, foot-activated pneumatic pump
Easy height adjustment with integrated winch
Cut-away in lower frame for pallet truck access

Enerpac XLP506XA12GU

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N545 mm (21.46 in)

Dimension G1390 mm (54.72 in)

Dimension E990 mm (38.98 in)

Dimension F1190 mm (46.85 in)

Dimension D32 mm (1.26 in)

Cylinder Stroke159 mm (6.25 in)

Rapid Advance Speed (per Stroke)- in

Max. Operating Pressure10,000 psi

Maximum Operating Pressure700 bar (10,000 psi)

Capacity498 kN (50 ton)

Dimension B240 mm (9.45 in)

Dimension K210-960 mm (8.27-37.80 in)

Dimension H1955 mm (76.97 in)

Max. Bed Width38.98 in

Pressing Speed- mm/strok (0,6 mm/s · 0.02 sec/in)

Product TypeWorkshop Press

SeriesXLP

Rapid Advance Speed- mm/strok (4,7 mm/s · 0.18 sec/in)

Max. Vertical Daylight960 mm (37.8 in)

Cylinder TypeSingle-Acting

Valve Power SourceManual

Press Capacity498 kN (50 ton)

Power Source TypeAir

Dimension P150 mm (5.91 in)

Dimension A310 mm (12.2 in)

Product LineIndustrial Tools

Weight600 kg (1323 lbs)

Maximum Bed Width990 mm

Set IncludesRC506,XA12G,HC7210

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·2.2 MB

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·8.4 MB 4 languages· in one file

BrochureXLP-VLP-Series Bench Workshop Presses; EnglishPDF·337 KB
