How can I get a price quote for Enerpac XLP756XA12GU?

You can request a fast quote for Enerpac XLP756XA12GU from Yılsa Engineering. Reference part number YLSA08G9F47NW43. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XLP756XA12GU in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XLP756XA12GU genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XLP756XA12GU?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

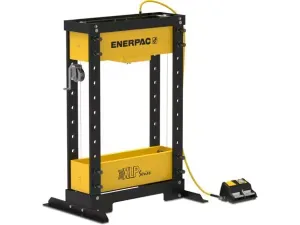

Enerpac XLP756XA12GU 75 Ton Hydraulic Press

Enerpac XLP756XA12GU; 75 ton (718 kN), 156 mm stroke, 700 bar workshop hydraulic press with RC756 single-acting cylinder and XA12G air pump.

EnerpacMFR # XLP756XA12GUSKU # YLSA08G9F47NW43

Dimension N545 mm (21.46 in)

Dimension G1430 mm (56.3 in)

Dimension E990 mm (38.98 in)

Dimension F1230 mm (48.43 in)

Dimension D42 mm (1.65 in)

Cylinder Stroke156 mm (6.13 in)

Have questions?Chat on WhatsApp

About This Product

The XLP756XA12GU is an XLP series workshop hydraulic press. It has a capacity of 75 tons (718 kN), a cylinder stroke of 156 mm and a maximum operating pressure of 700 bar (10,000 psi). It is supplied with an RC756 single-acting cylinder and an XA12G foot-operated air-driven pump. The press frame has adjustable lower and upper bolsters. Maximum bed width is 990 mm and vertical daylight is 205-955 mm. Overall height is 1955 mm. The RC cylinder can be moved horizontally so the load can be positioned at different points. The product is supplied as an unassembled kit consisting of the frame, winch, cylinder, pump, gauge, couplers and hose. It is used in workshop and maintenance environments for pressing, straightening, and assembly or disassembly jobs.

Features and Benefits

75 ton (718 kN) capacity, 700 bar maximum operating pressure
Adjustable lower and upper bolsters
Horizontally adjustable RC cylinder for flexible load placement
Foot-activated XA12G air-driven pump
Easy height adjustment with integrated winch mechanism
Cut-away in lower frame for pallet truck access and easy transportation

Enerpac XLP756XA12GU

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N545 mm (21.46 in)

Dimension G1430 mm (56.3 in)

Dimension E990 mm (38.98 in)

Dimension F1230 mm (48.43 in)

Dimension D42 mm (1.65 in)

Cylinder Stroke156 mm (6.13 in)

Rapid Advance Speed (per Stroke)- in

Max. Operating Pressure10,000 psi

Maximum Operating Pressure700 bar (10,000 psi)

Capacity718 kN (75 ton)

Dimension B330 mm (12.99 in)

Dimension K205-955 mm (8.07-37.60 in)

Dimension H1955 mm (76.97 in)

Max. Bed Width38.98 in

Pressing Speed- mm/strok (0,4 mm/s · 0.02 sec/in)

Product TypeWorkshop Press

SeriesXLP

Rapid Advance Speed- mm/strok (3,2 mm/s · 0.13 sec/in)

Max. Vertical Daylight955 mm (37.6 in)

Cylinder TypeSingle-Acting

Valve Power SourceManual

Press Capacity718 kN (75 ton)

Power Source TypeAir

Dimension P150 mm (5.91 in)

Dimension A420 mm (16.54 in)

Product LineIndustrial Tools

Weight900 kg (1984 lbs)

Maximum Bed Width990 mm

Set IncludesRC756,XA12G,HC7210

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·2.2 MB

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·8.4 MB 4 languages· in one file

BrochureXLP-VLP-Series Bench Workshop Presses; EnglishPDF·337 KB
